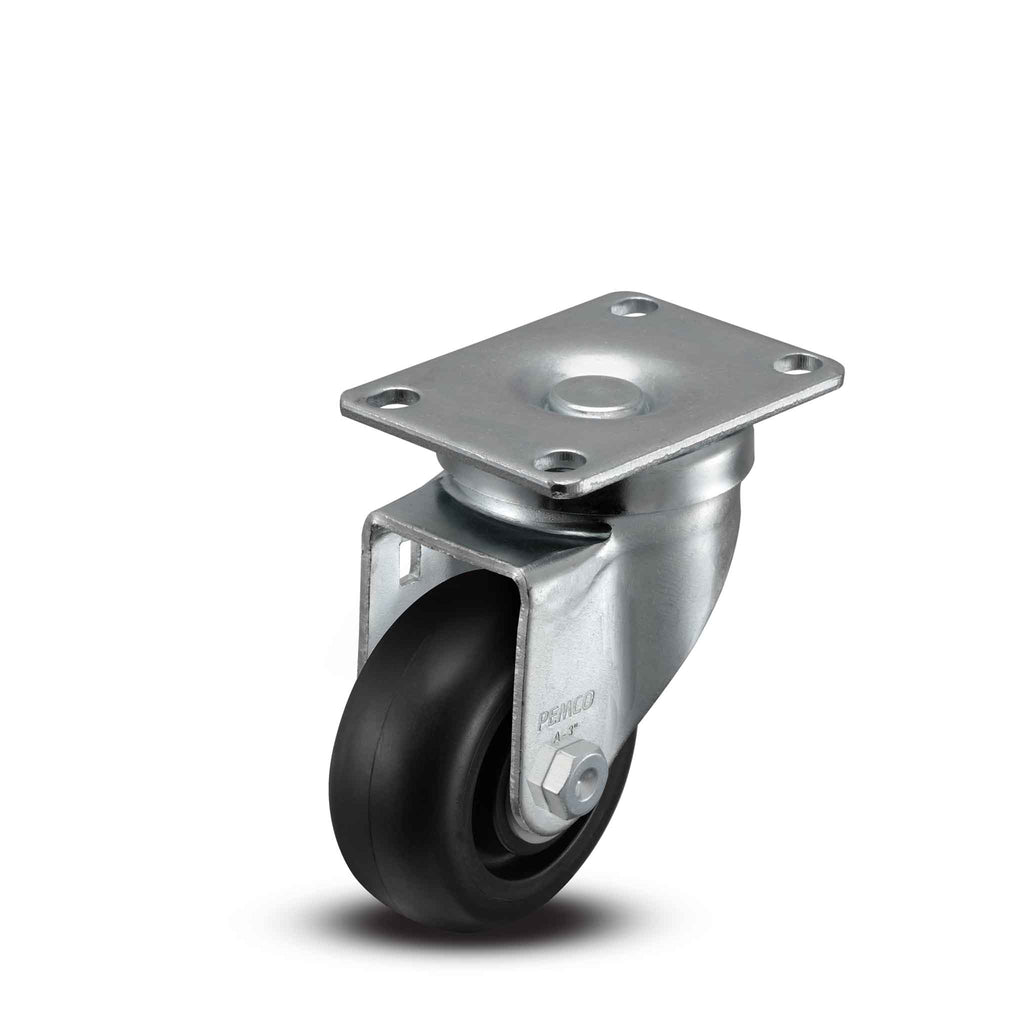

This swivel Pemco A-3" x 1-1/4" polypropylene wheel plate caster is ideal for economical applications or environments exposed to water where stainless steel is out of budget. Featuring a DuPont engineered Delrin bearing, these polypropylene wheels are non-marking, lightweight, and resistant to water and most chemicals and oils. This popular series is competitively priced, yet features: thick high-strength steel construction, dual ball raceways, standard steel raceway dust cap (for longer life), RoHS compliant zinc plating for corrosion resistance, are NSF listed for the food service industry, and a one-year warranty.
Series: 25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Caster Type: Swivel
Load Capacity: 270 lb

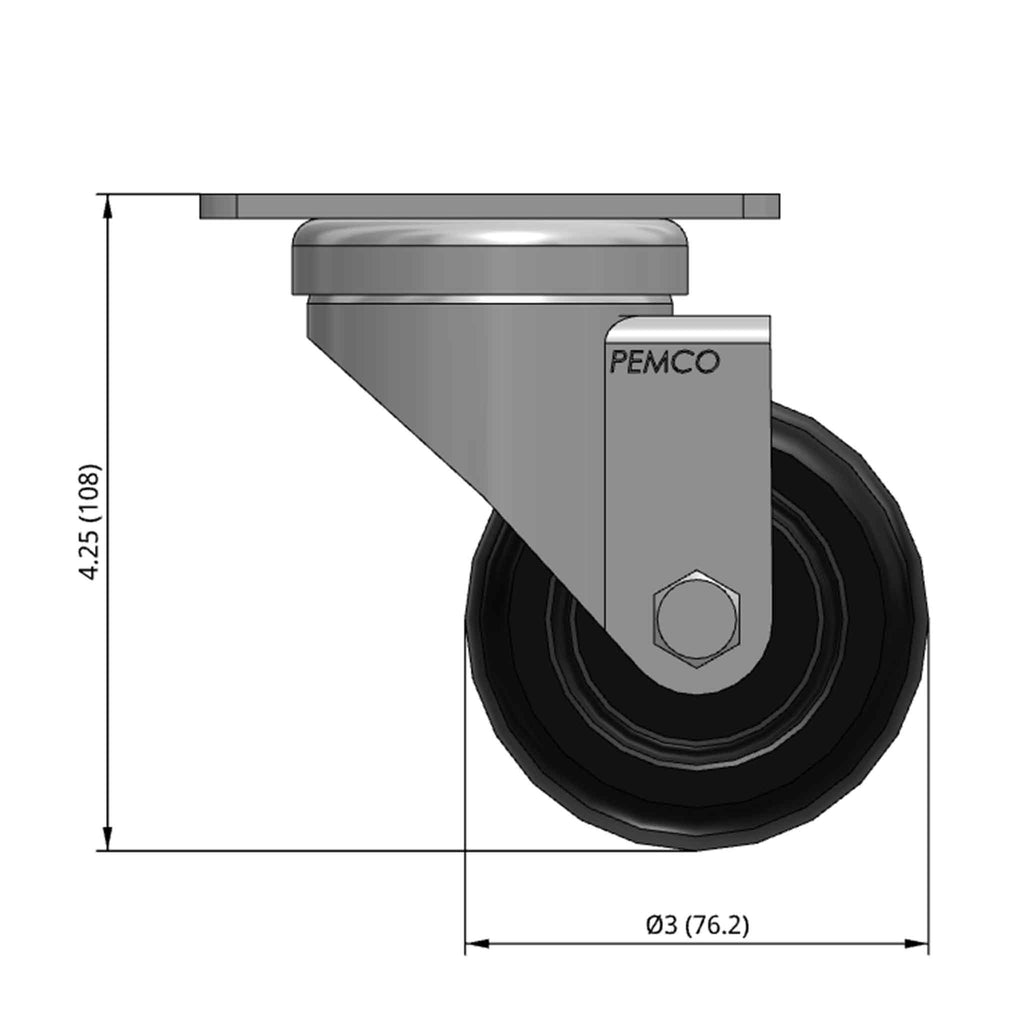

Wheel Diameter: 3 in

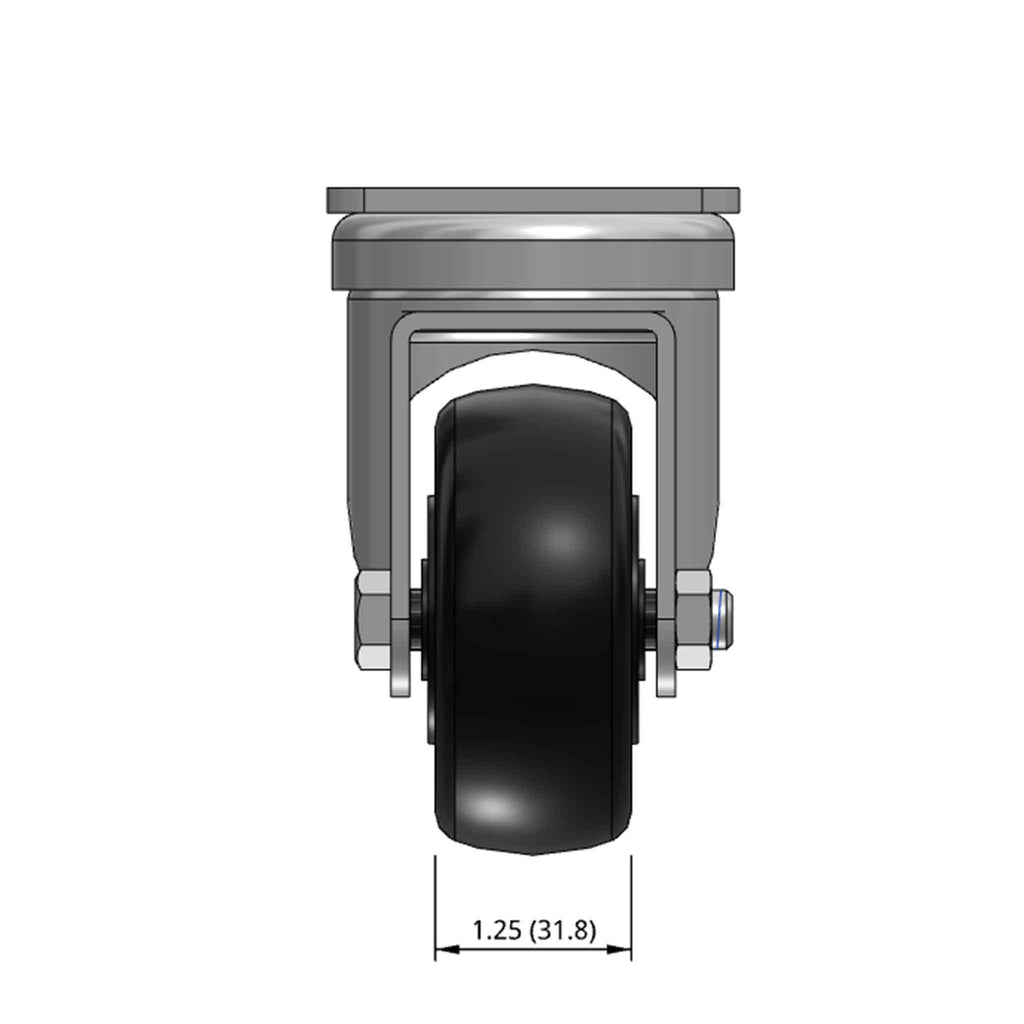

Wheel Tread Width: 1.25 in
Wheel Description: Polypropylene
Wheel Color: Black
Wheel Bearing: Delrin
Wheel Profile: Slight Crown
Wheel Hardness: 70(+/-5) Shore D
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength

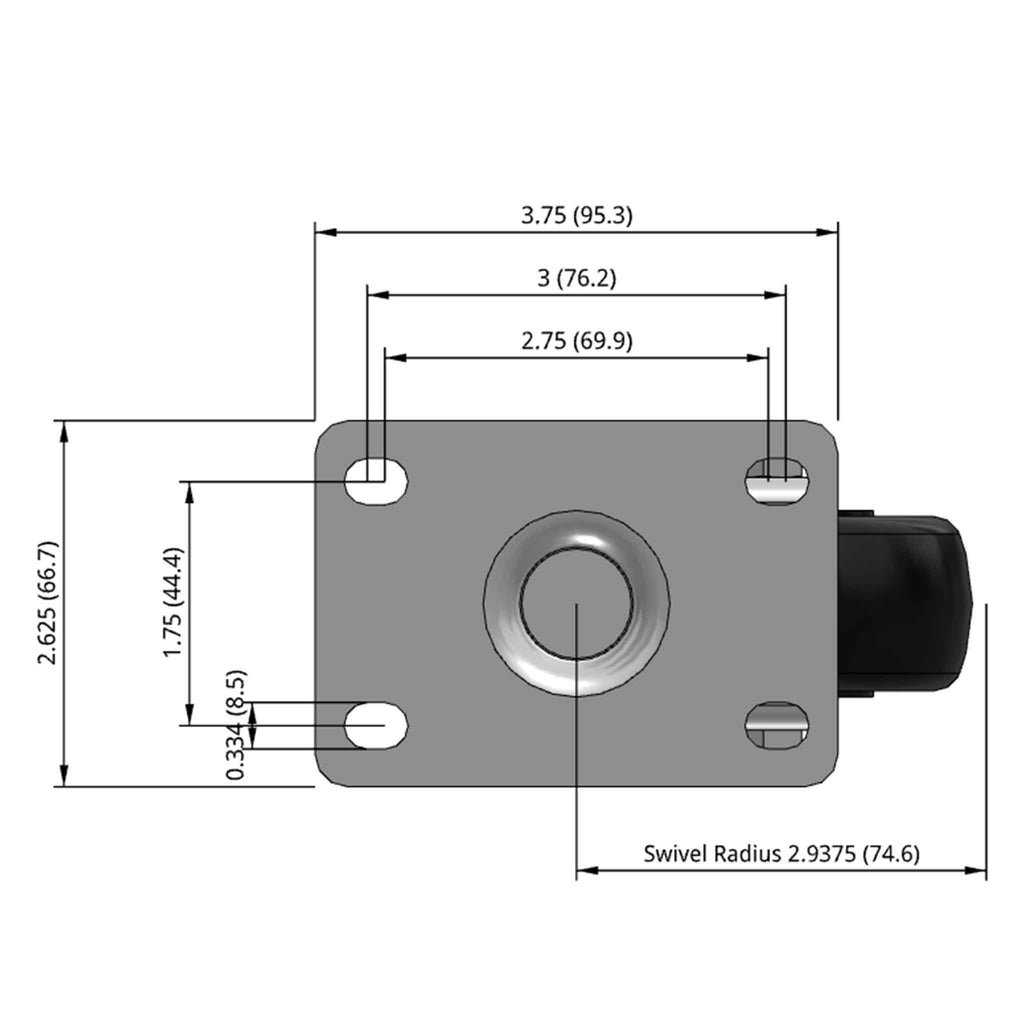

Fastening: 2-5/8" x 3-3/4" top plate
Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
Bolt Size Recommended: 5/16"
Mounting Height: 4.25 in
Swivel Radius: 2.94 in
Operating Temperature Range: -20F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
CAD Model and Datasheet Downloads
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
