3"x1" USA Swivel Plate Caster | TPR Rubber Wheel

Roll over image to zoom in Click on image to zoom

3"x1" USA Swivel Plate Caster | TPR Rubber Wheel

Name: 3"x1" USA Swivel Plate Caster | TPR Rubber Wheel
Brand: Shepherd
SKU: 20TRP30S
Price: 8.73 USD
Availability: InStock

Shepherd SKU: 20TRP30S
Fastening: 2-5/8" x 3-3/4" top plate | Load Capacity: 110 lb
Mount Height: 3.5 in | Swivel Radius: 2.5 in

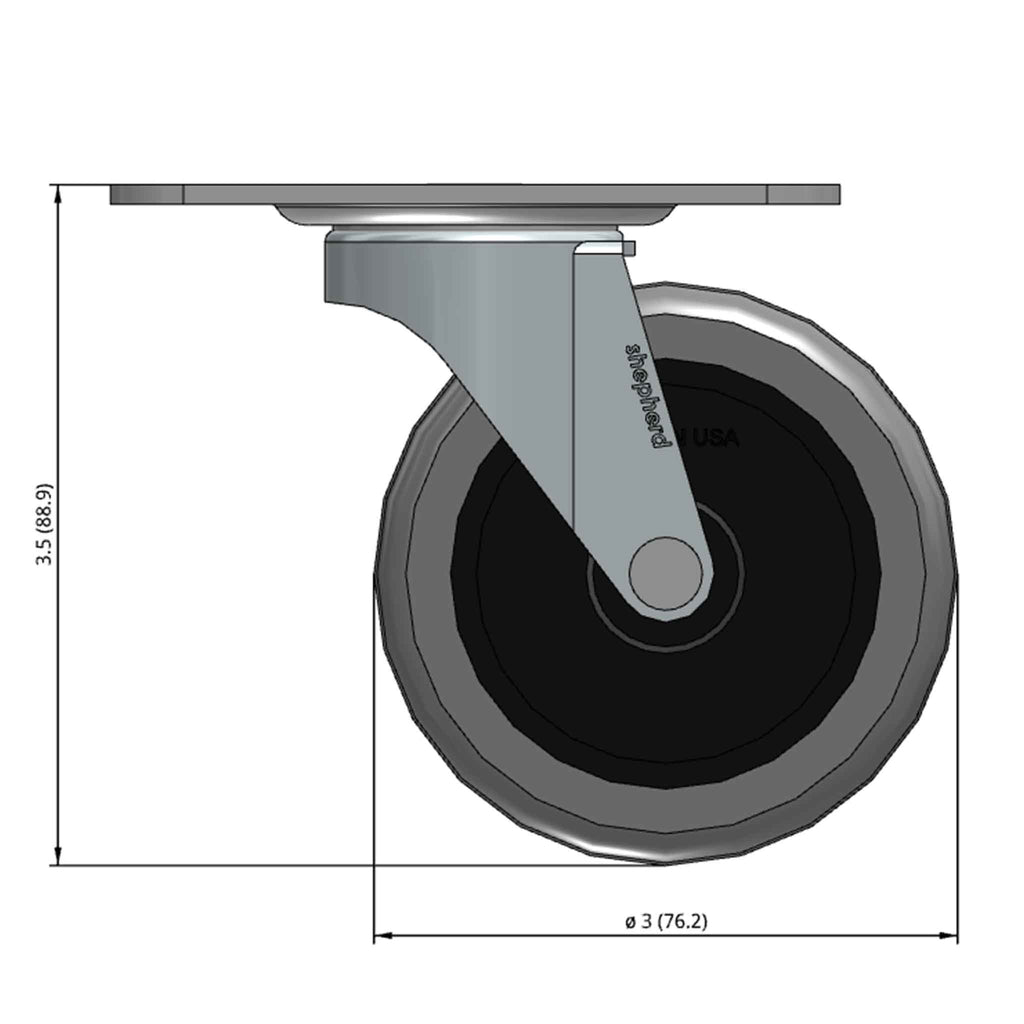

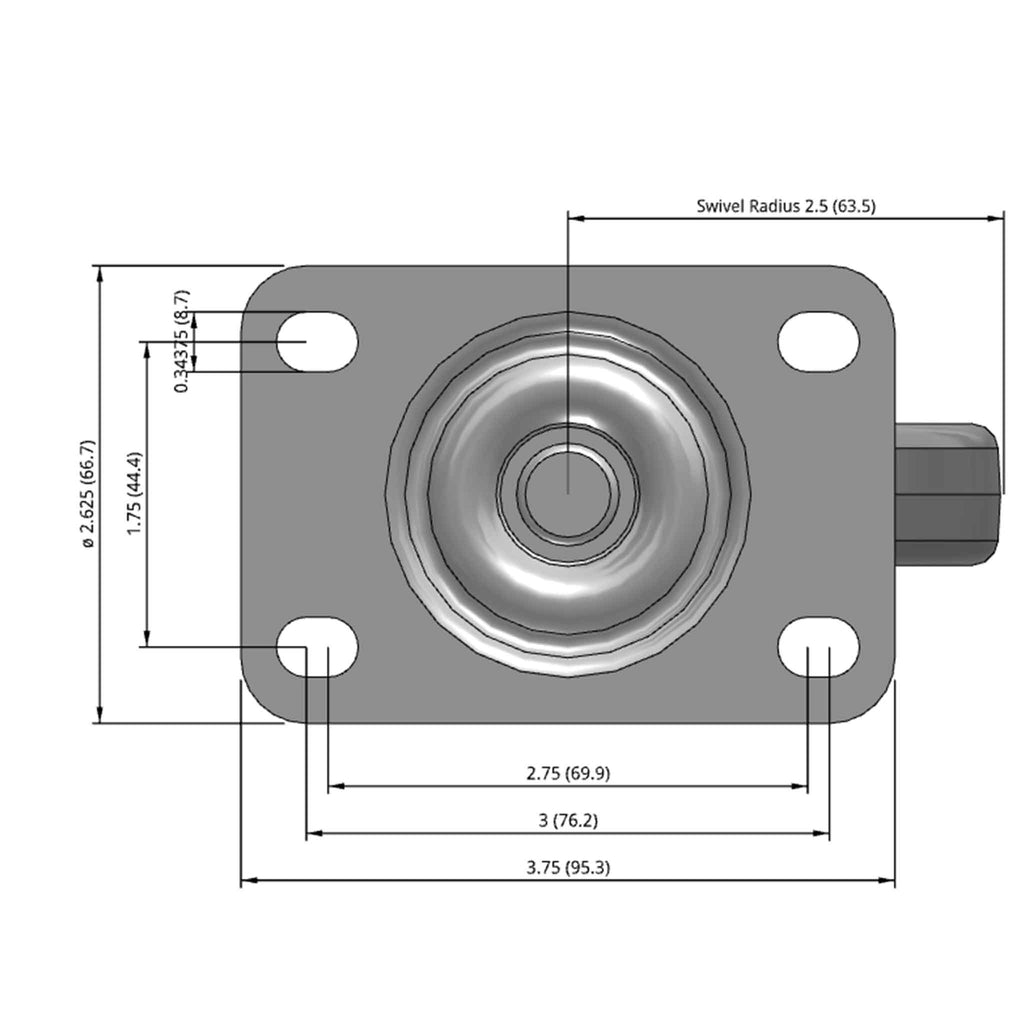

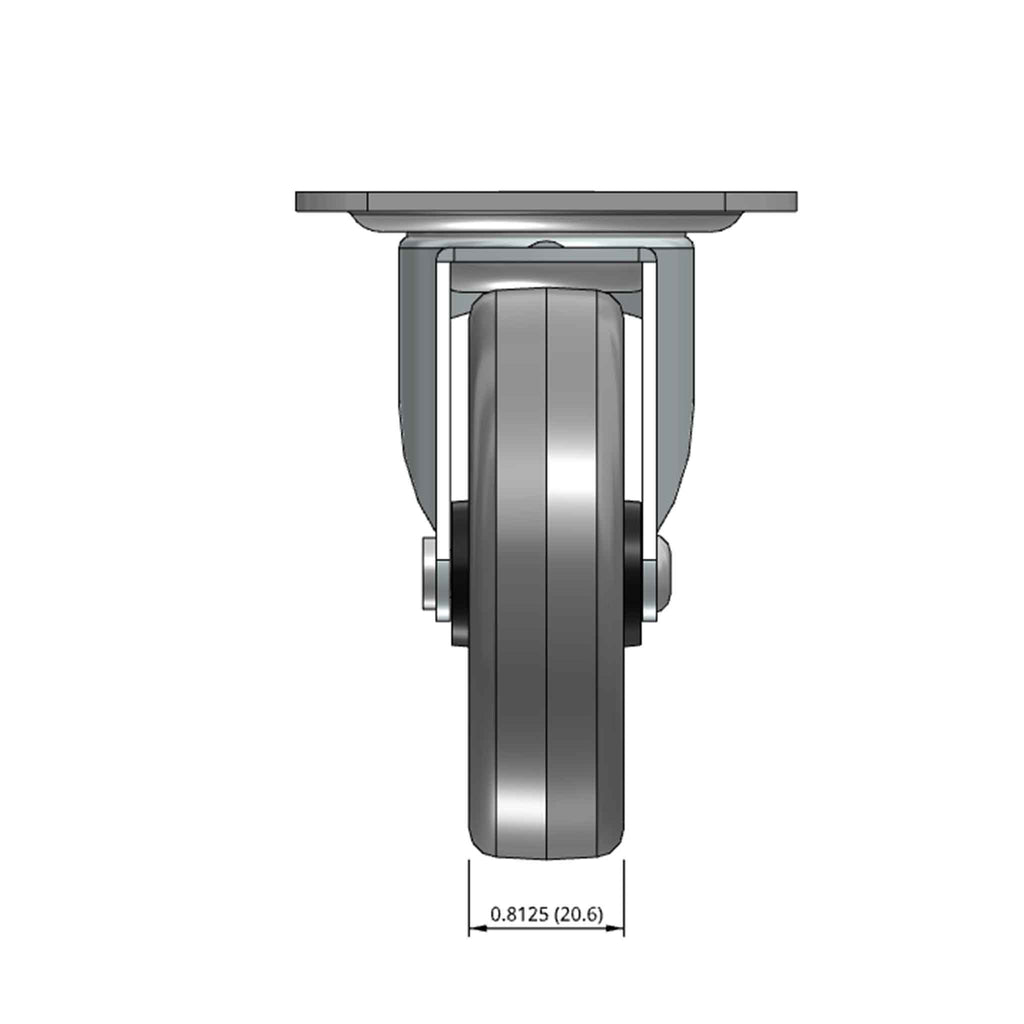

See "Caster Details" and below CAD model for full specs.

Price:

$8.73

Quantity:

Share this product

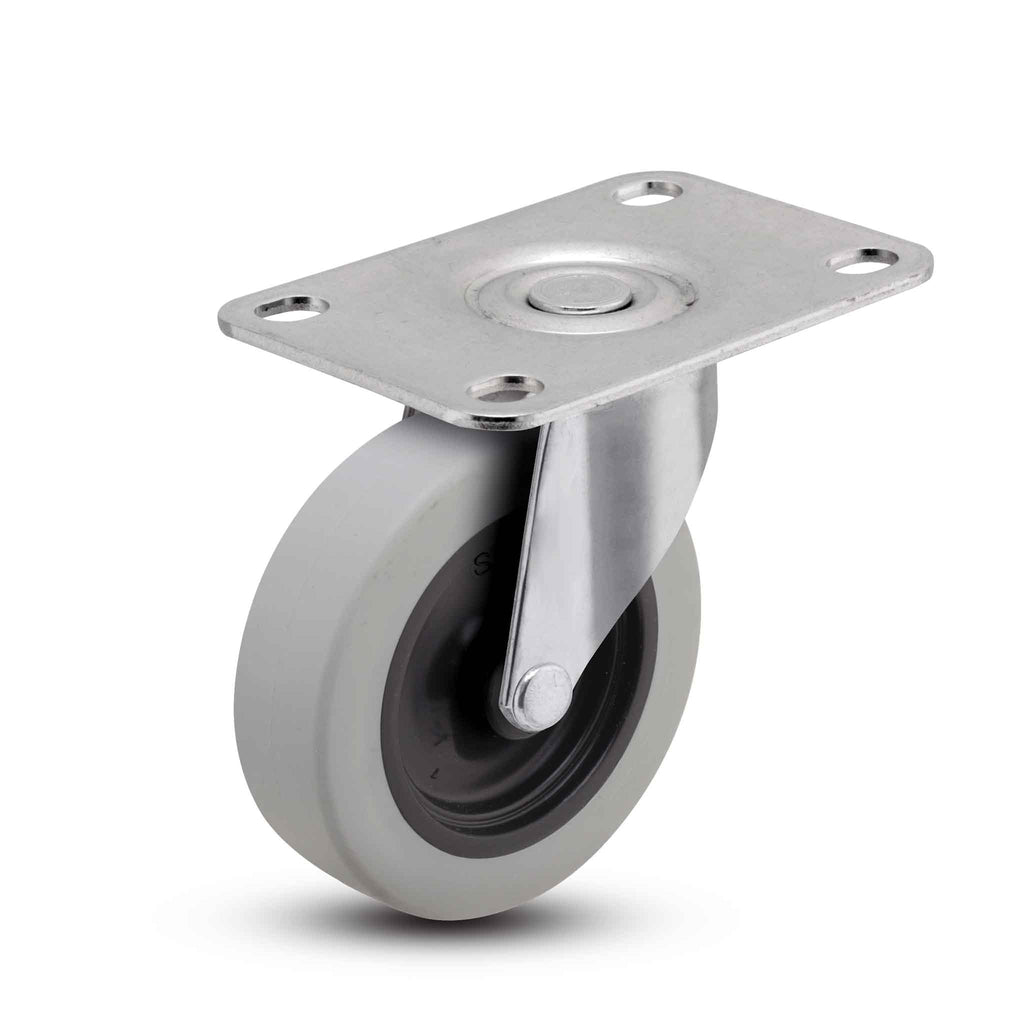

Need a quiet, floor-friendly caster for lighter carts, fixtures, and equipment? This USA-made 3" swivel caster features a 3"×13/16" soft rubber TPR wheel for smooth, quiet rolling with easy starting and excellent floor protection. The non-marking thermoplastic rubber tread provides a softer ride than hard plastic wheels, making it a versatile choice for office carts, retail fixtures, displays, light equipment, utility carts, and other commercial applications.

Quiet, Smooth & Floor Protective

The quality USA-made swivel rig features double-ball swivel raceways for easy maneuverability, while the TPR wheel provides dependable everyday performance on finished floors. A simple plain bore wheel bearing keeps this caster economical and reliable for lighter-duty applications where quiet operation, easy mobility, and floor protection matter.

USA-made, in stock, and ready to ship.

Part Number: 20TRP30S
Series: 20 Series (to 160 lb/ea)
Caster Type: Swivel
Brake: None
Load Capacity: 110 lb
Wheel Diameter: 3 in
Wheel Tread Width: 0.81 in
Wheel Description: Thermoplastic Rubber
Wheel Color: Grey
Wheel Bearing: Plain
Wheel Profile: Flat with Rounded Edges
Wheel Hardness: 40(+/-5) Shore D
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength
Fastening: 2-5/8" x 3-3/4" top plate
Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
Bolt Size Recommended: 5/16"
Mounting Height: 3.5 in
Swivel Radius: 2.5 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

Note: datasheets are provided on our Caster Specialists division template (our sister store).
Use Download CAD (must select file type to enable download) or Download PDF datasheet buttons below to download our secure and native files.

Recover password

3"x1" USA Swivel Plate Caster | TPR Rubber Wheel

Description

Quiet, Smooth & Floor Protective

Caster Details

CAD Model and Datasheet Downloads
