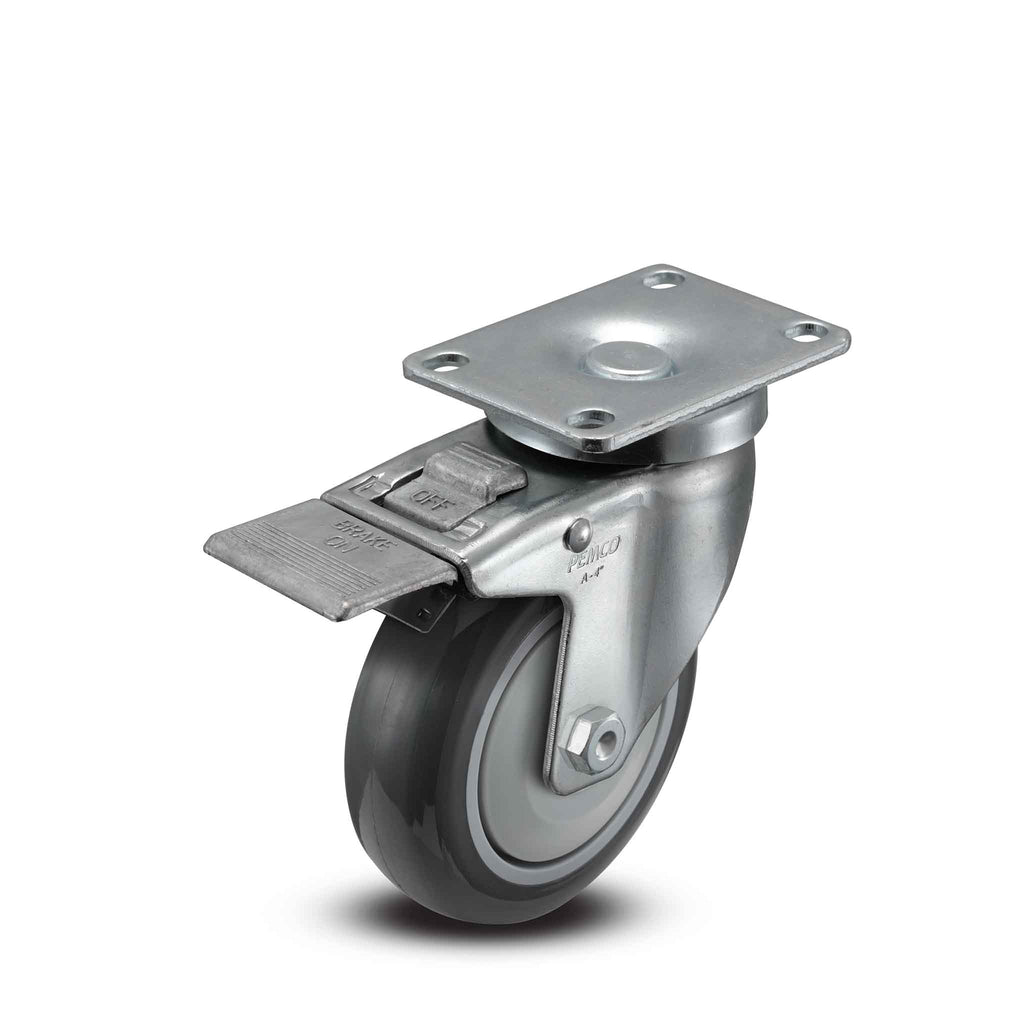

This swivel Pemco A-4" x 1-1/4" Thermo-Urethane (TPU) wheel plate caster with top locking total lock brake (locks both swivel section and wheel) is ideal for applications where floor protection, ergonomics, and resistance to chemicals/oils is desired. Featuring full thread guards (to prevent debris from entangling axle) and a precision ball bearing for easy mobility, Thermo-Urethane wheels are non-marking, durable, easy to roll on a range of floors, and highly resistant to chemicals and oils. This popular series is competitively priced, yet features: thick high-strength steel construction, dual ball raceways, standard steel raceway dust cap (for longer life), RoHS compliant zinc plating for corrosion resistance, and a one-year warranty.
Series: 25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Caster Type: Swivel
Brake: Total Lock
Load Capacity: 275 lb
Wheel Diameter: 4 in

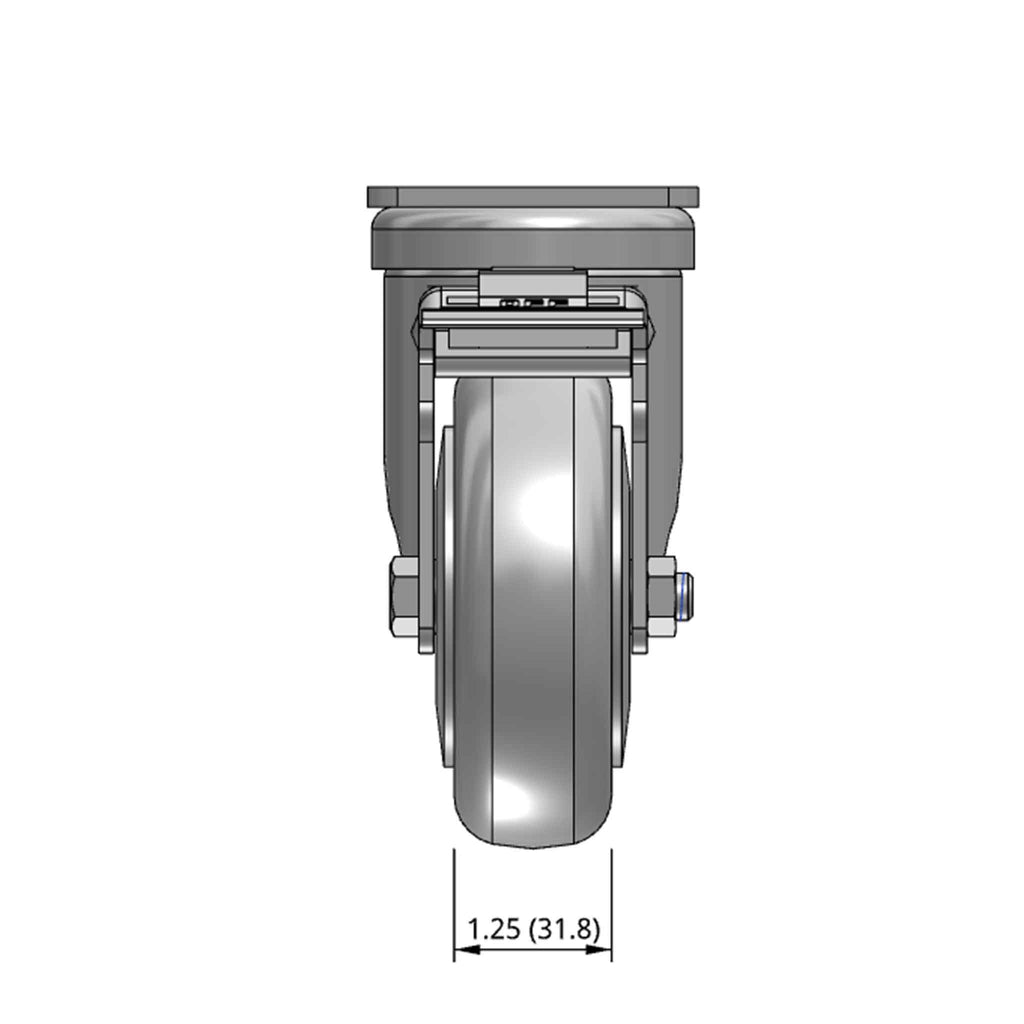

Wheel Tread Width: 1.25 in
Wheel Description: Thermo-Urethane
Wheel Color: Grey on Grey
Wheel Bearing: Precision Ball
Wheel Profile: Slight Crown
Wheel Hardness: 90(+/-5) Shore A
Wheel Thread Guards: Full Thread Guards
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength

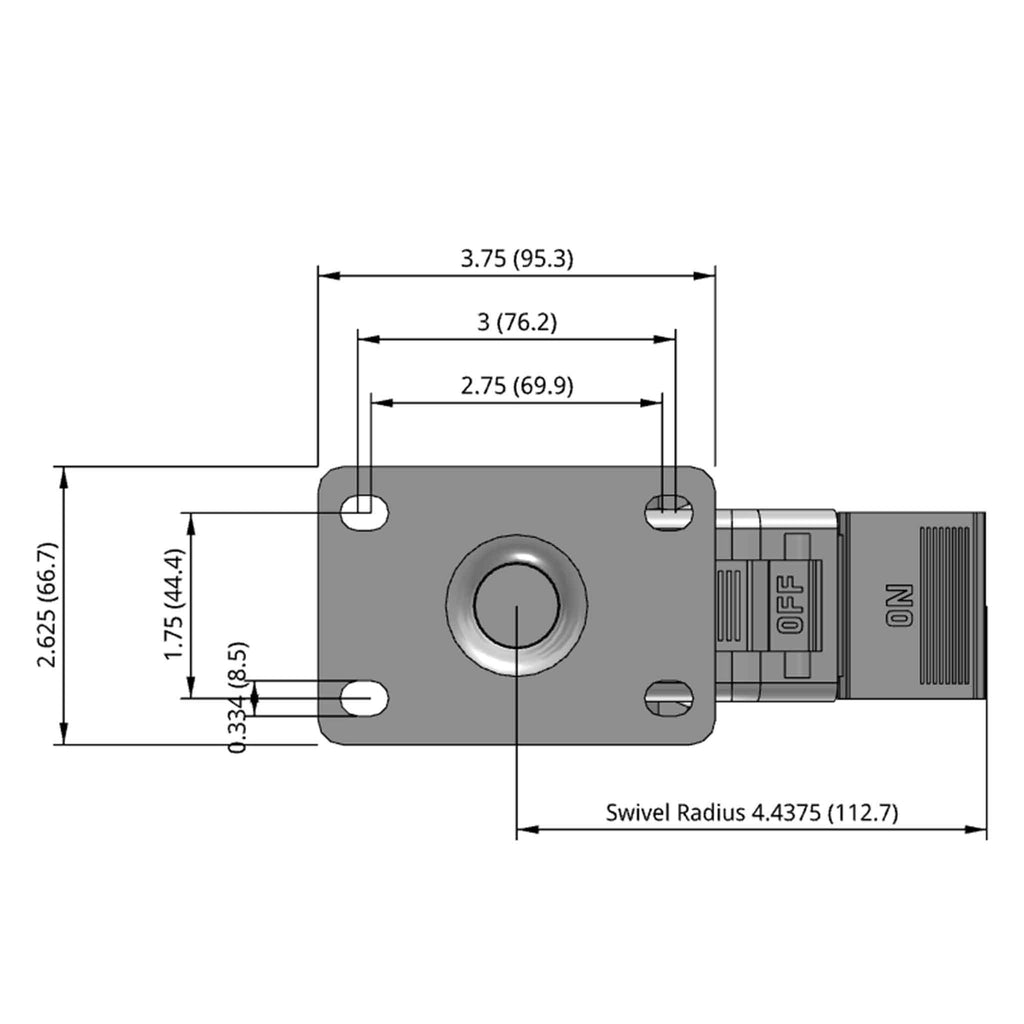

Fastening: 2-5/8" x 3-3/4" top plate
Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
Bolt Size Recommended: 5/16"

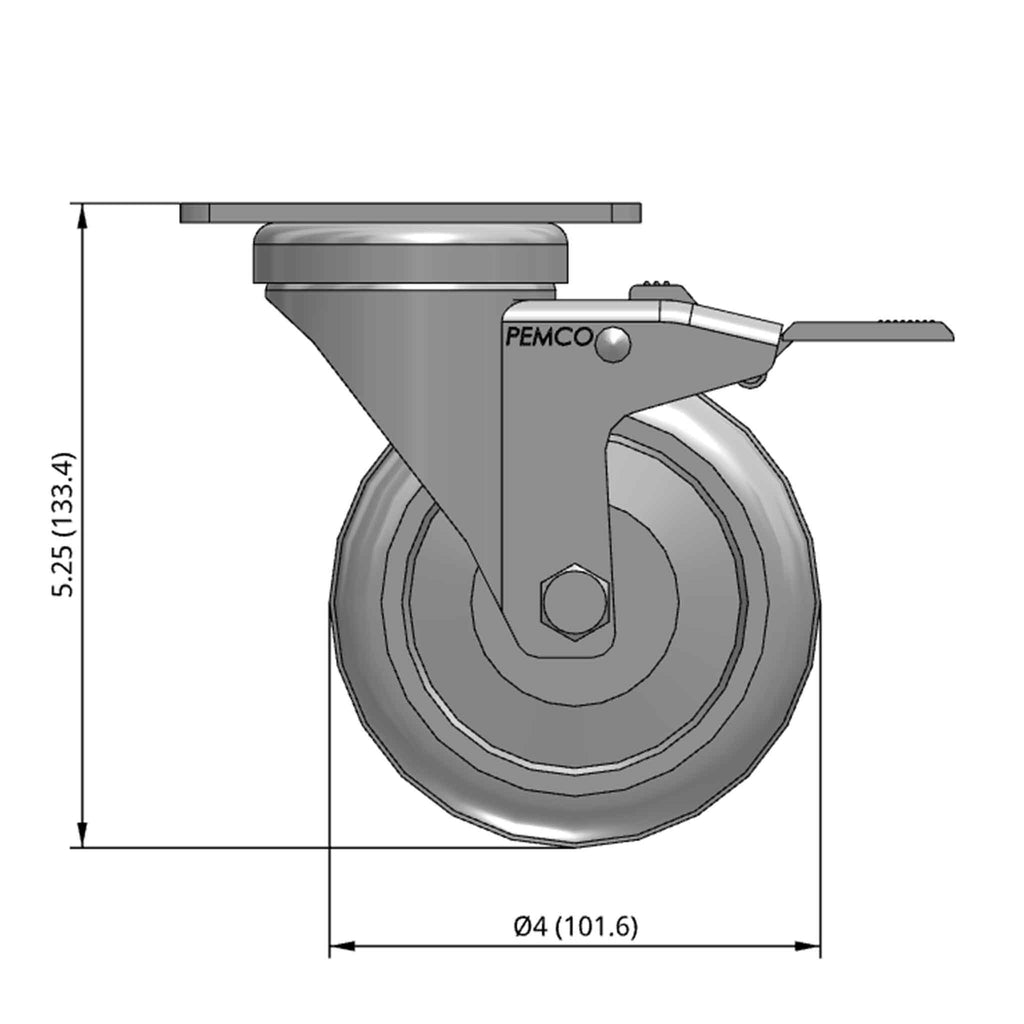

Mounting Height: 5.25 in
Swivel Radius: 4.44 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
