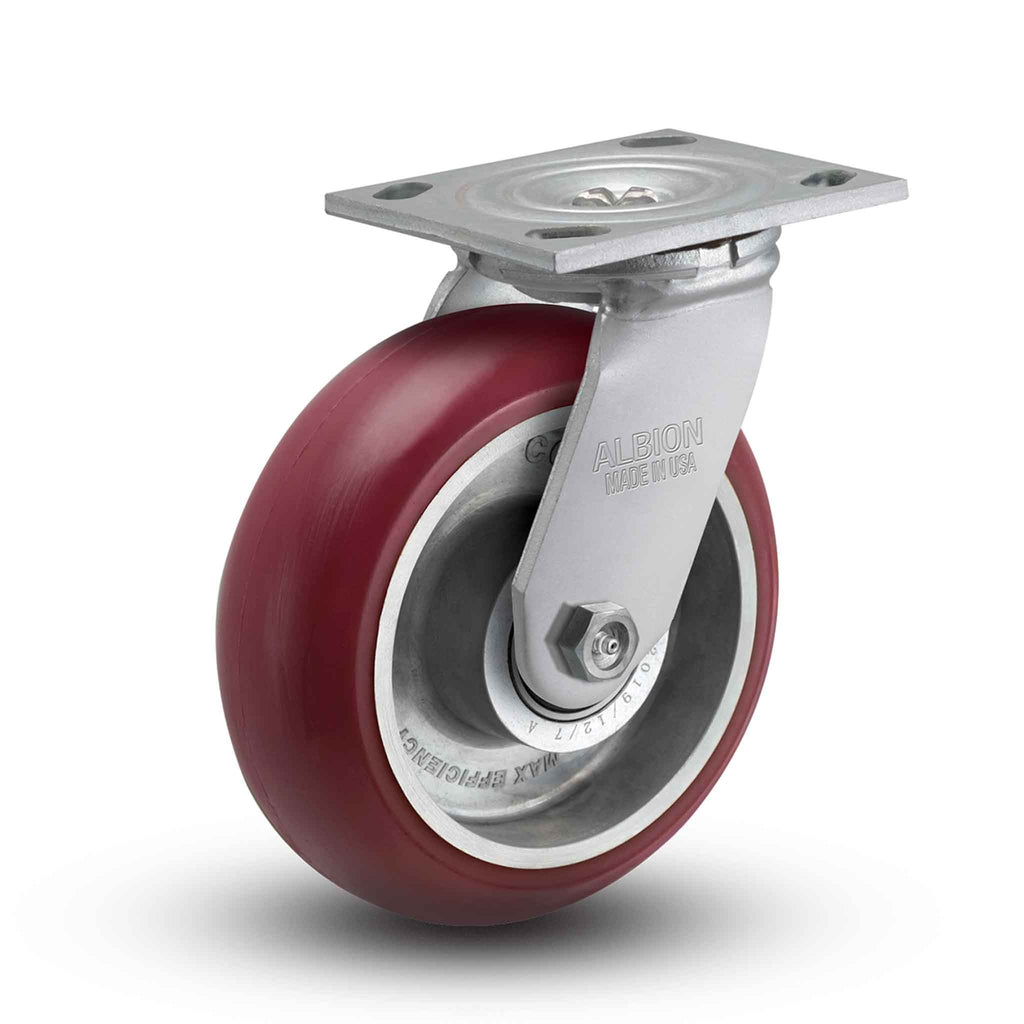

This 8" x 2" maroon polyurethane on aluminum core premium heavy duty swivel caster rolls effortlessly, making it excellent for manual push and towing applications. MAX-Efficiency wheels are formulated to provide best-in-class ergonomics and durability, and feature maintenance-free sealed precision ball bearings for smooth and quiet mobility. 44 Series casters also feature quality USA-made rigs and a 3-year warranty. All swivel rigs also feature a 3/4" kingpin, which lasts significantly longer than the standard 5/8" kingpin. RoHS compliant zinc plating provides an attractive finish which increases corrosion resistance for longer caster life. Looking for even higher levels of ergonomics or quietness? Check out our maintenance-free 48 Series!
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Caster Type: Swivel
Load Capacity: 1250 lb
Wheel Diameter: 8 in

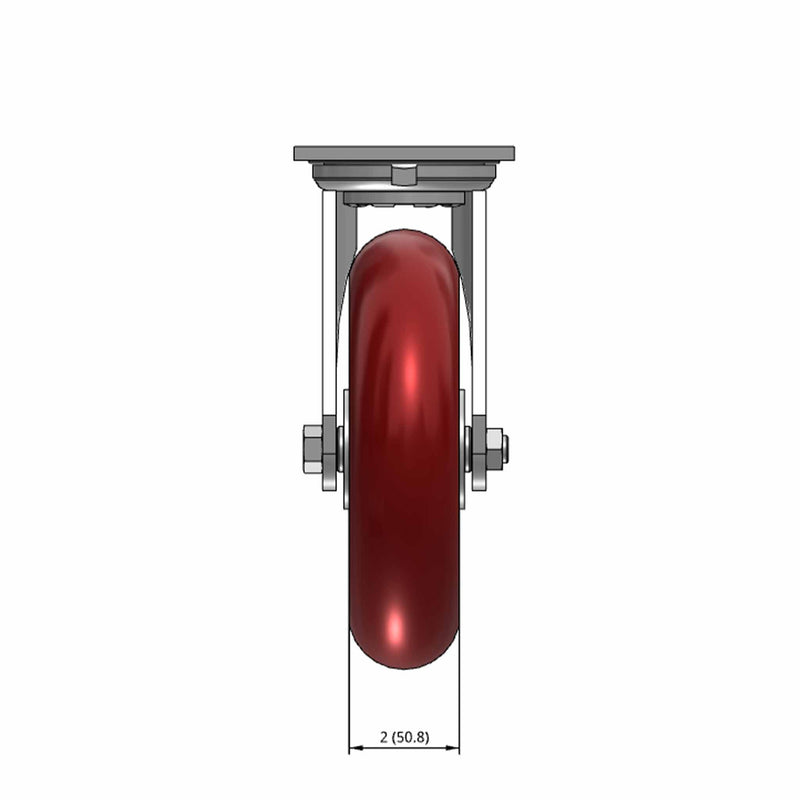

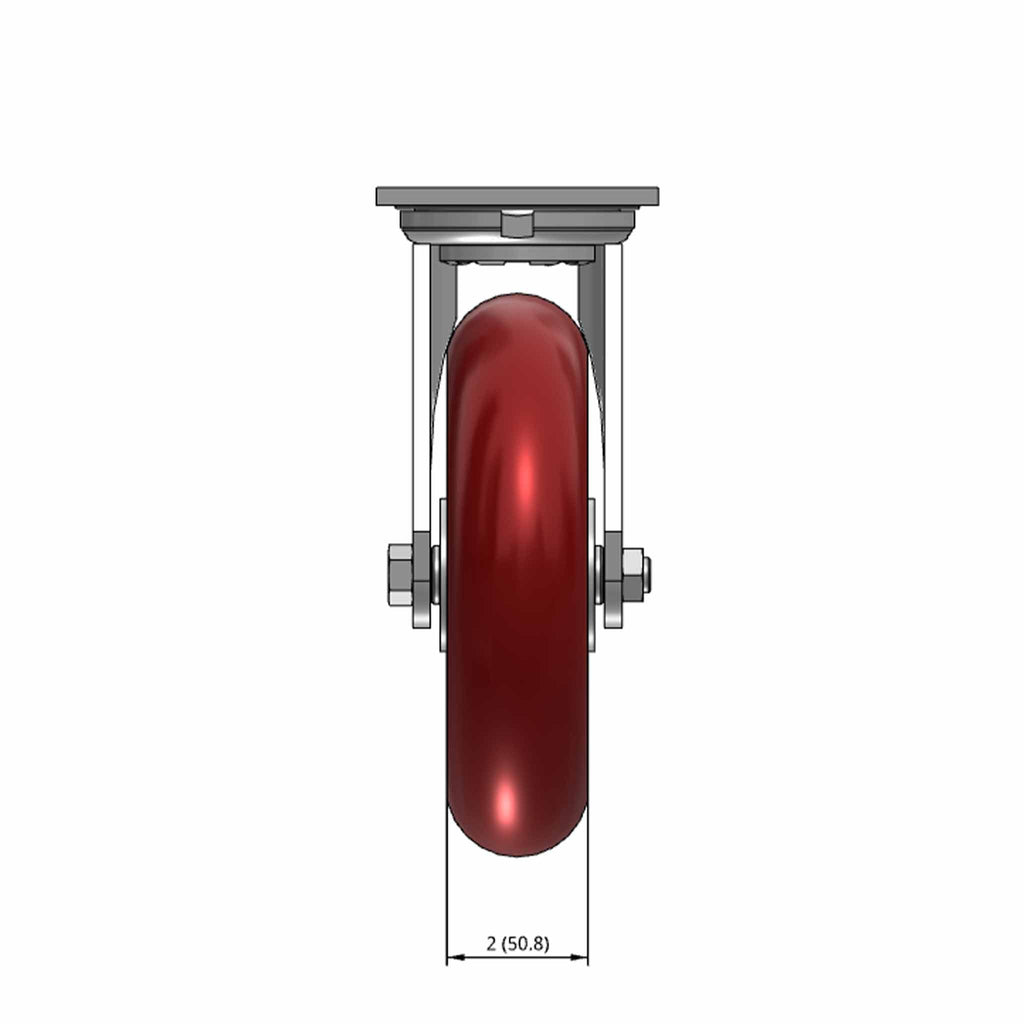

Wheel Tread Width: 2 in
Wheel Description: AX - Round Polyurethane (Aluminum Core)
Wheel Color: Maroon Tread on Aluminum Core
Wheel Bearing: Precision Ball
Wheel Profile: Radius Tread
Wheel Hardness: 85 Shore A
Wheel Thread Guards: None
Raceway Type: 3/4" Kingpin Hardened Dual Ball Bearing Raceway

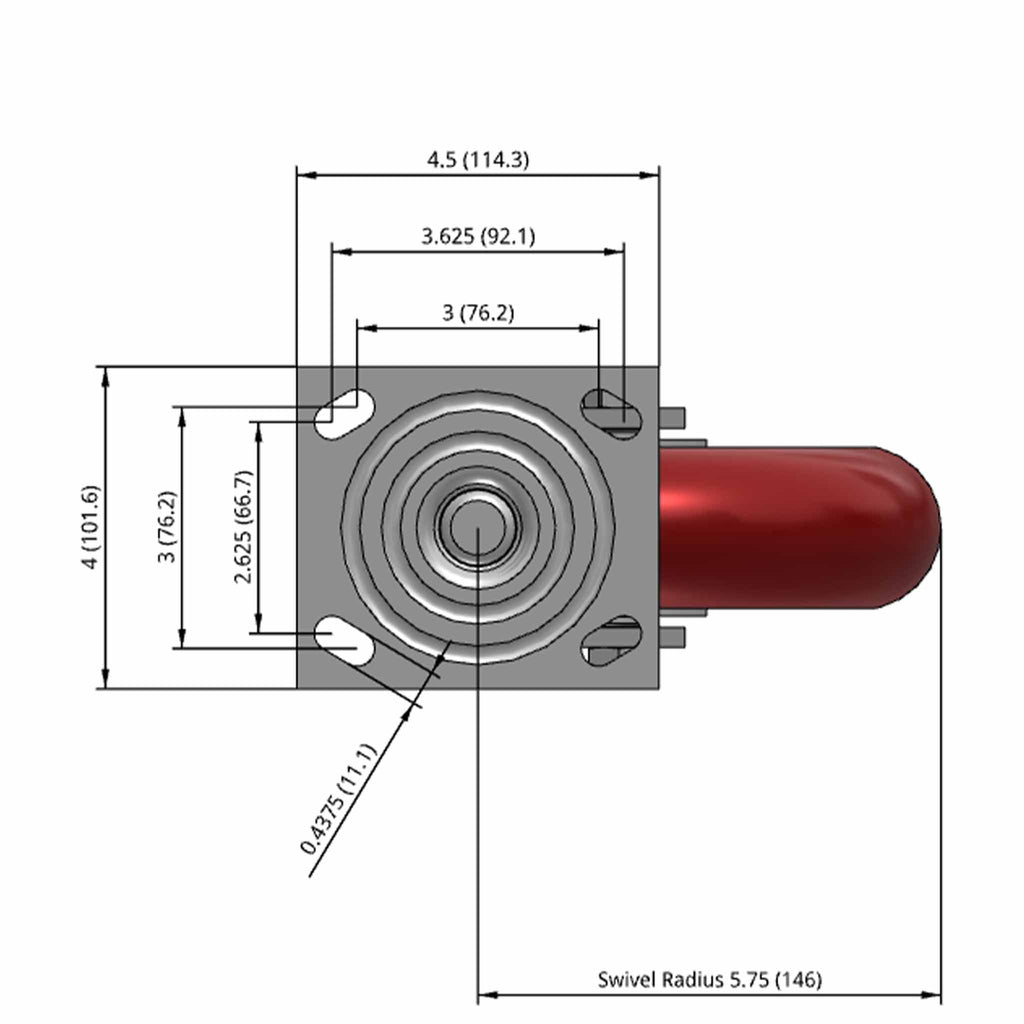

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

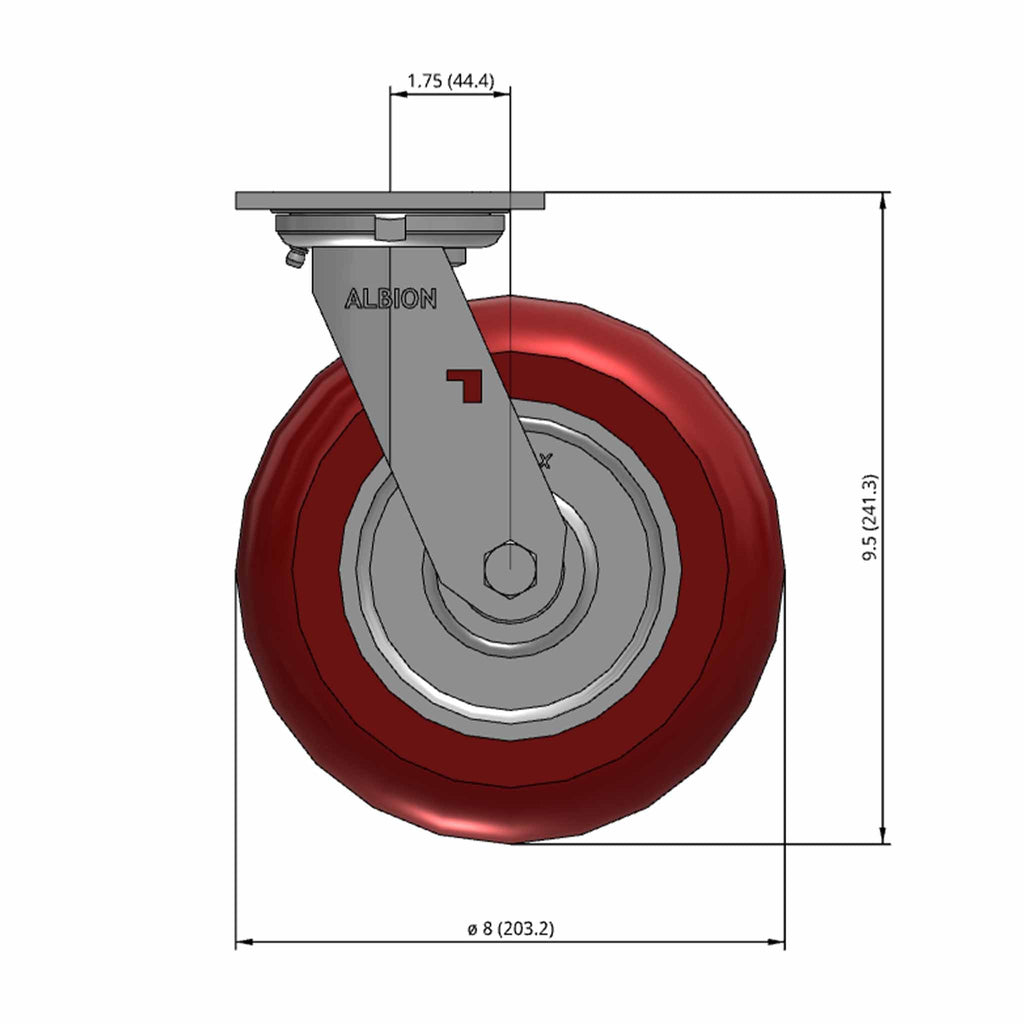

Mounting Height: 9.5 in
Swivel Radius: 5.75 in
Operating Temperature Range: -40°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
Use Download CAD (must select file type to enable download) or Download PDF datasheet buttons below to download our secure and native files.
