This 4" x 15/16" thermoplastic rubber standard duty single wheel rigid caster is quiet, smooth rolling, easy to start and floor protective. Our 20 Series standard duty single wheel casters are perfect for light duty office and commercial carts and fixtures. These casters feature floor protective wheels with plain bore bearings. Swivel sections are riveted double ball race.
Series: 20 Series (to 160 lb/ea)
Caster Type: Rigid
Load Capacity: 125 lb
Wheel Diameter: 4 in

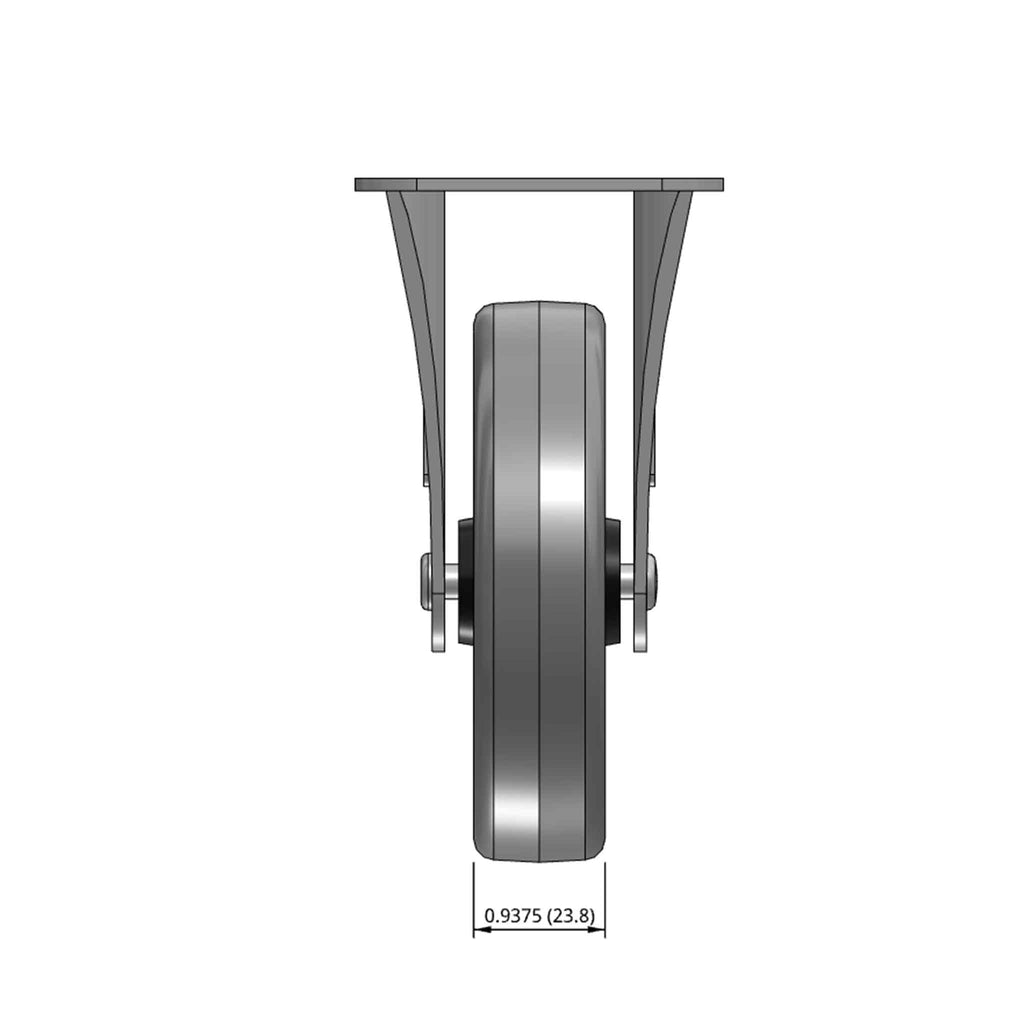

Wheel Tread Width: 0.94 in
Wheel Description: Thermoplastic Rubber
Wheel Color: Grey
Wheel Bearing: Plain
Wheel Profile: Flat with Rounded Edges
Wheel Hardness: 75(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Rigid Construction

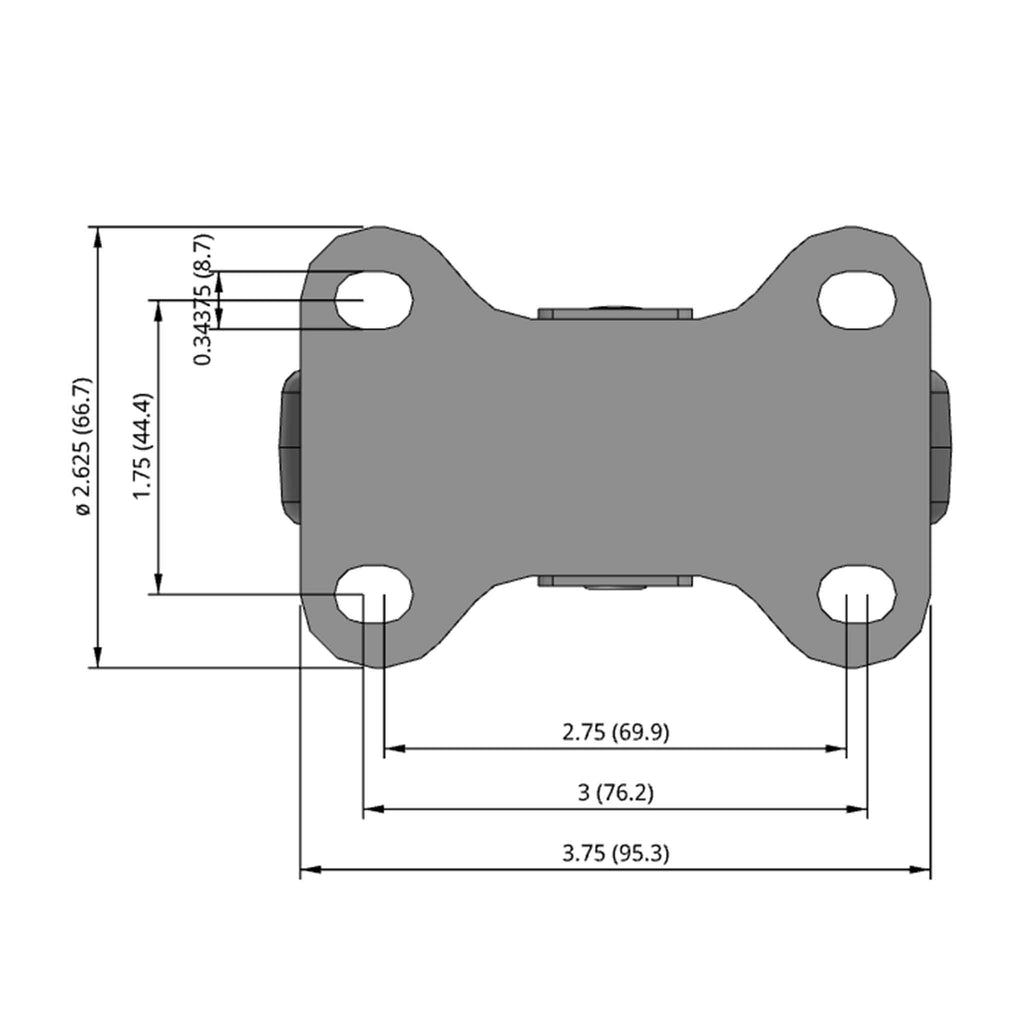

Fastening: 2-5/8" x 3-3/4" top plate
Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
Bolt Size Recommended: 5/16"

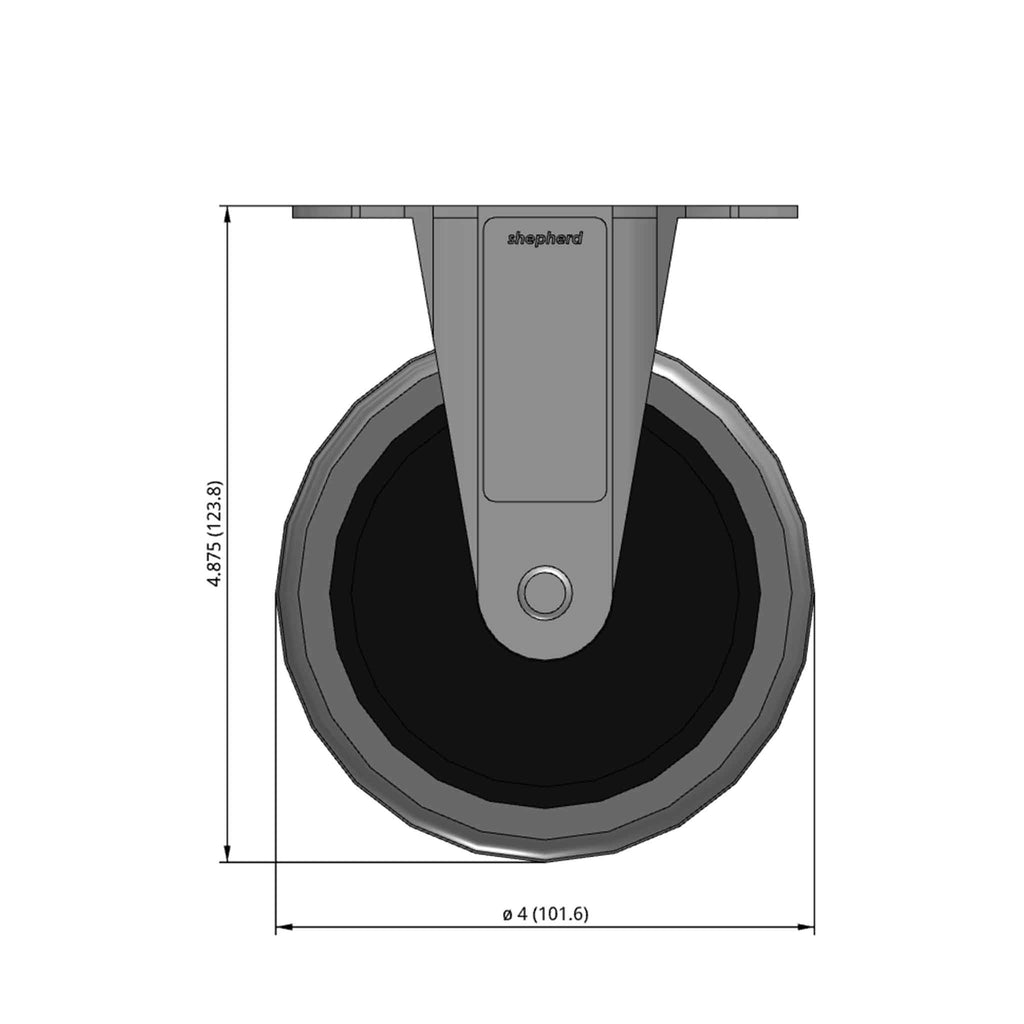

Mounting Height: 4.88 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
