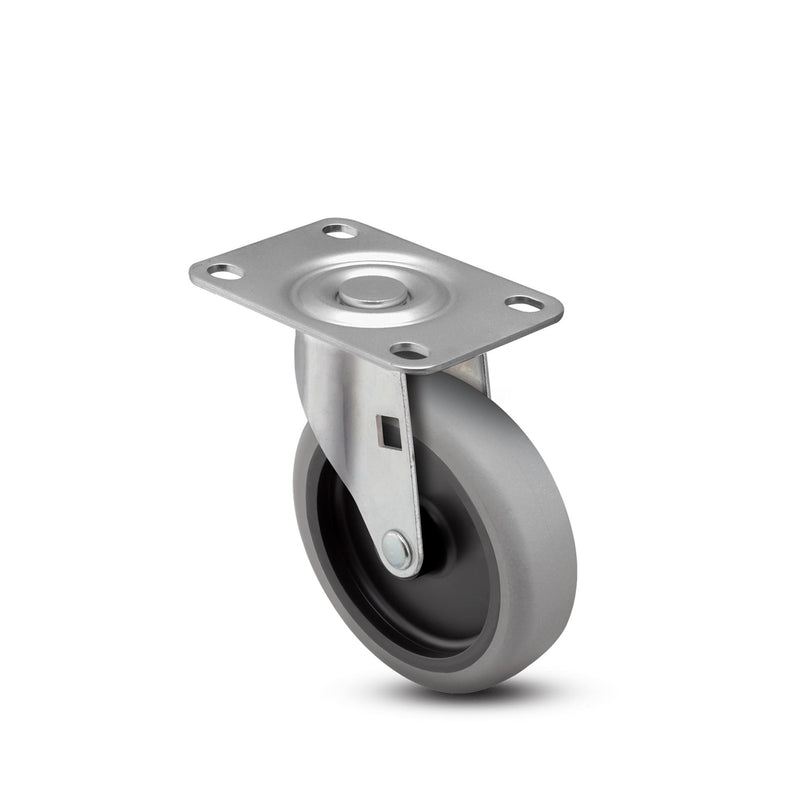

4"x1" TPR Wheel Swivel Plate Mount Caster USA-Made

Roll over image to zoom in Click on image to zoom

4"x1" TPR Wheel Swivel Plate Mount Caster USA-Made

Name: 4"x1" TPR Wheel Swivel Plate Mount Caster USA-Made
Brand: Shepherd
SKU: 20TRP40S
Price: 10.22 USD
Availability: InStock

Shepherd SKU: 20TRP40S
Fastening: 2-5/8" x 3-3/4" top plate | Load Capacity: 125 lb
Mount Height: 4.88 in | Swivel Radius: 3.44 in
See "Caster Details" and below CAD model for full specs.

• In stock: 50 units ship by next day, larger quantities in 2-5 days (learn more)
**FREE Shipping on orders over $250**

Price:

$10.22 $12.78

Quantity:

Share this product

This 4" x 15/16" thermoplastic rubber standard duty single wheel swivel caster is quiet, smooth rolling, easy to start and floor protective. Our 20 Series standard duty single wheel casters are perfect for light duty office and commercial carts and fixtures. These casters feature floor protective wheels with plain bore bearings. Swivel sections are riveted double ball race.

Part Number: 20TRP40S
Series: 20 Series (to 160 lb/ea)
Caster Type: Swivel
Brake: None
Load Capacity: 125 lb
Wheel Diameter: 4 in
Wheel Tread Width: 0.94 in
Wheel Description: Thermoplastic Rubber
Wheel Color: Grey
Wheel Bearing: Plain
Wheel Profile: Flat with Rounded Edges
Wheel Hardness: 75(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength
Fastening: 2-5/8" x 3-3/4" top plate
Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
Bolt Size Recommended: 5/16"
Mounting Height: 4.88 in
Swivel Radius: 3.44 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

Note: datasheets are provided on our Caster Specialists division template (our sister store).
Use Download CAD (must select file type to enable download) or Download PDF datasheet buttons below to download our secure and native files.
