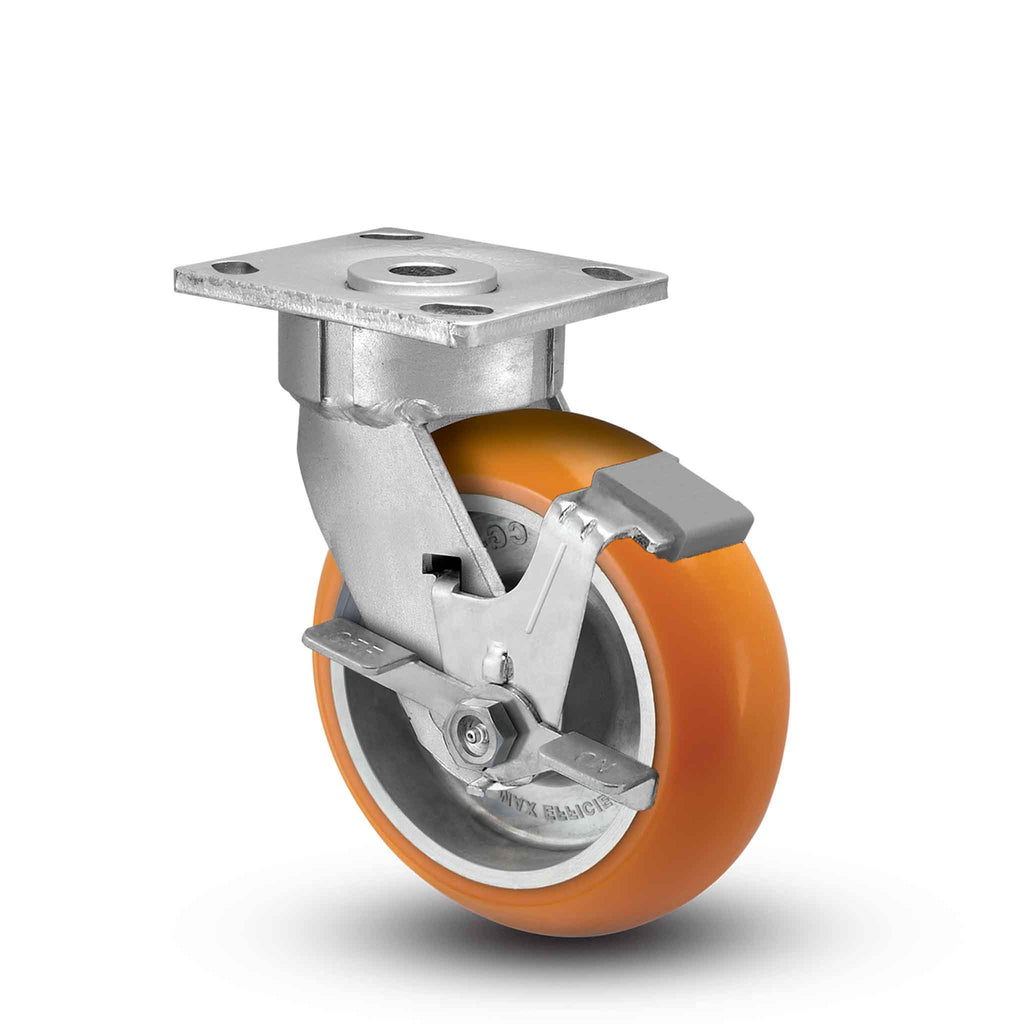

This 4" x 2" orange polyurethane heavy duty ergonomic swivel caster with tread brake is easy to push and rolls effortlessly, making it excellent for manual push and towing applications. Our 48 Series casters are ergonomically designed for ease of movement and quiet mobility. The sealed precision swivel bearing is maintenance-free and significantly reduces push/pull force, keeping equipment operations safer while improving efficiency. Rig is zinc-plated for an attractive, corrosion-resistant finish.
Series: 48 Series - Ergonomic/Precision (to 1250 lb/ea)
Caster Type: Swivel
Brake: FBC Face Brake (FBC)
Load Capacity: 800 lb
Wheel Diameter: 4 in
Wheel Tread Width: 2 in
Wheel Description: AN - Round Polyurethane (Aluminum Core)
Wheel Color: Orange Tread on Aluminum Core
Wheel Bearing: Precision Ball
Wheel Profile: Round Tread
Wheel Hardness: 85 Shore A
Wheel Thread Guards: None
Raceway Type: Maintenance-Free Sealed Precision Ball Bearing Raceway
Fastening: 4" x 4-1/2" top plate

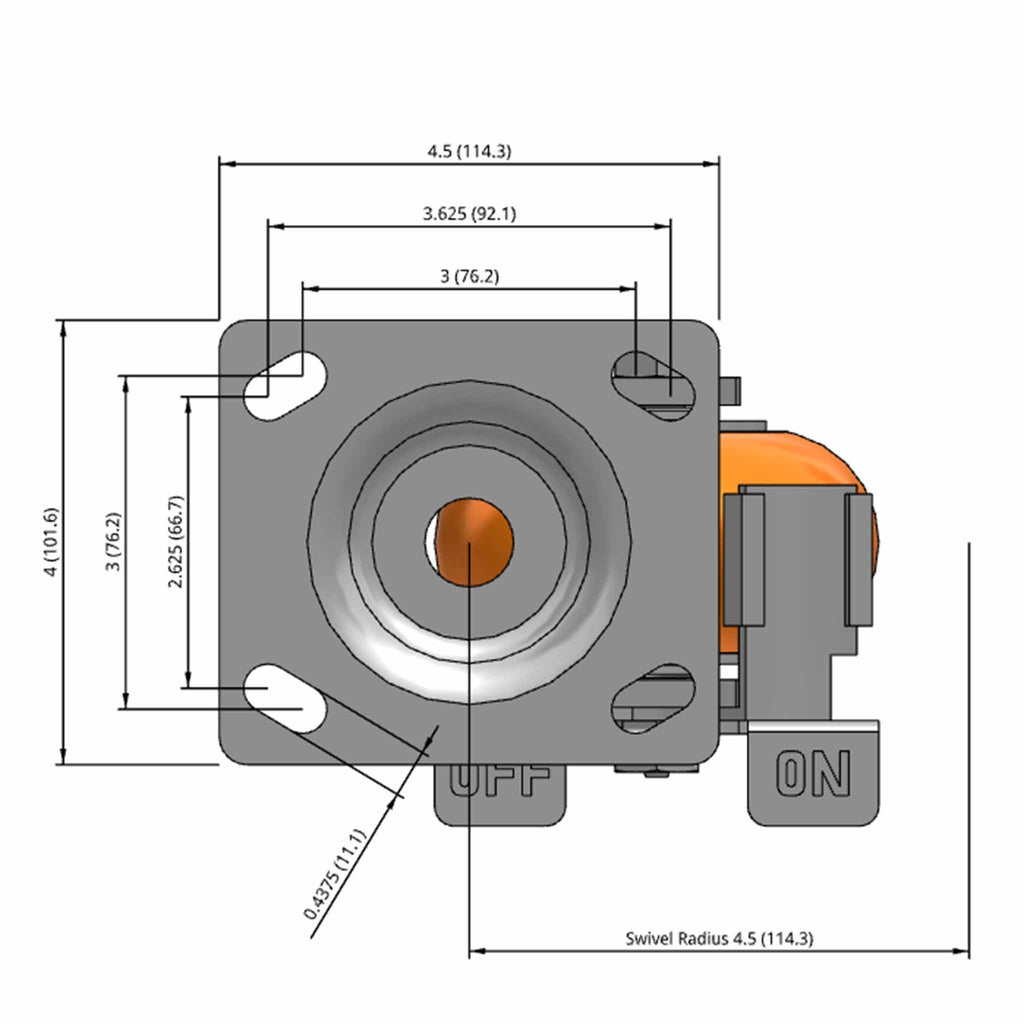

Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

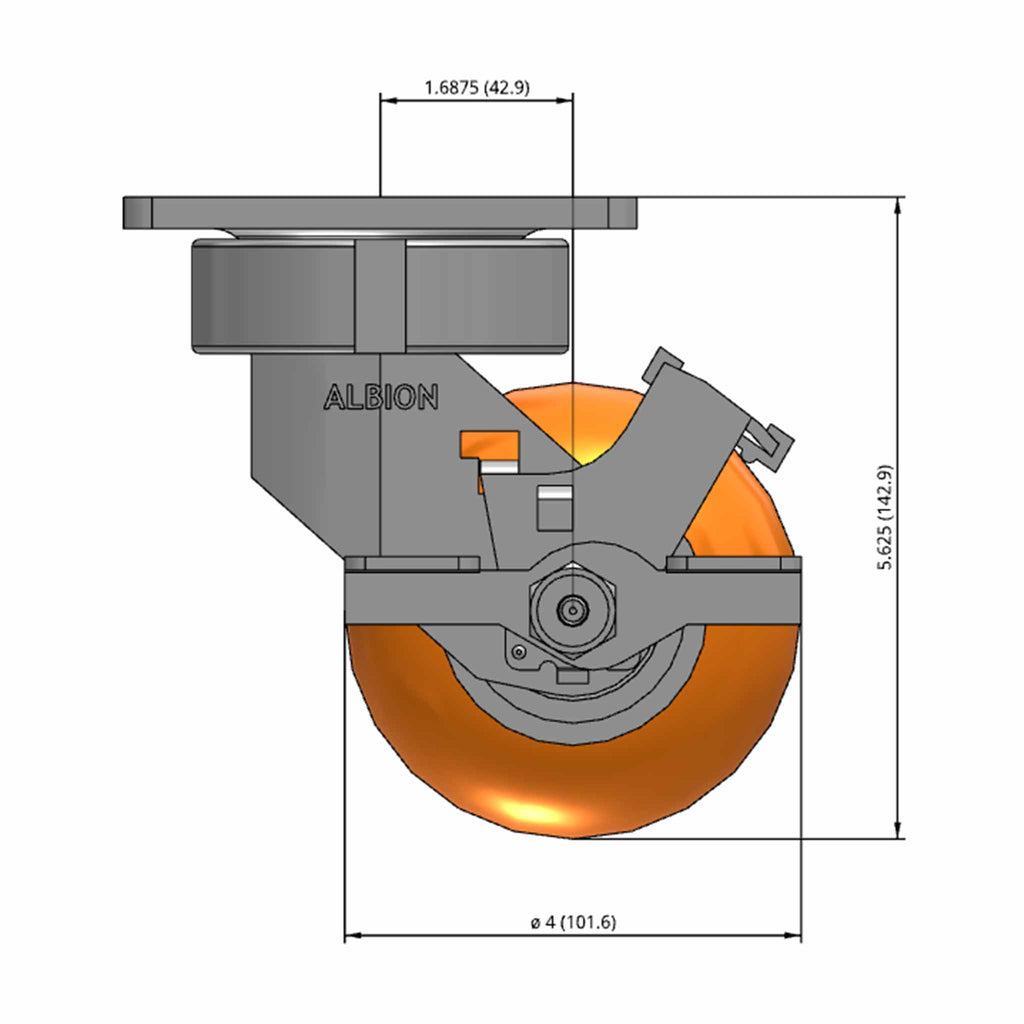

Mounting Height: 5.63 in
Swivel Radius: 4.5 in
Operating Temperature Range: -40°F to +180°F
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
