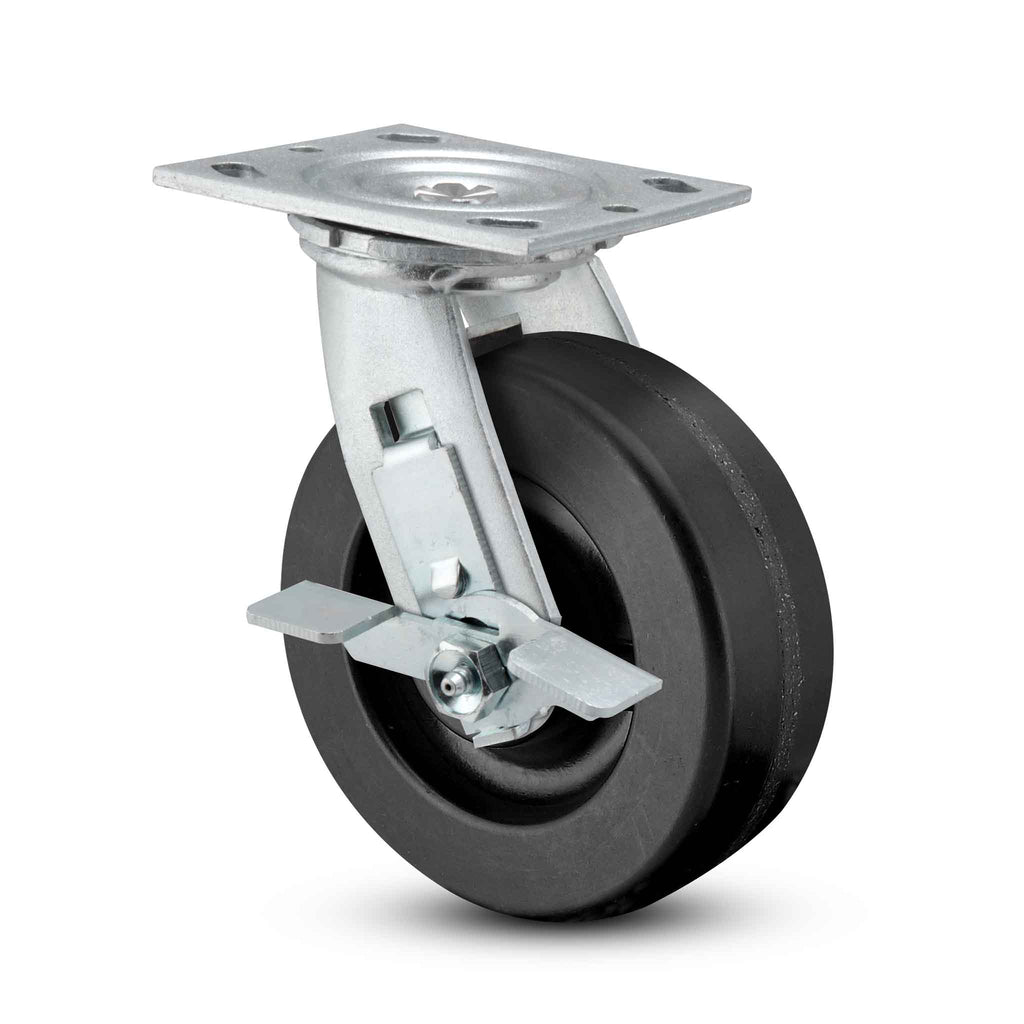

This swivel Pemco 5"x2" phenolic wheel caster with positive locking side brake (protected within leg and featuring thermoplastic brake grip) offers a low profile and economical USA made wheel solution for heavier equipment or cart applications. This popular line is competitively priced and features: 1/4" thick steel construction, 4"x4.5" top plate, dual ball bearing raceways for smooth swiveling, RoHS compliant zinc plating for corrosion resistance, and a one-year warranty. Phenolic caster wheels are a long time trusted solution due to their strength and economical price point (cheaper than steel wheels and offering similar capacities). Phenolic wheels are hard (90D hardness), making them easy to roll, and provide excellent durability when moving or supporting heavier loads. However, this hardness does not provide best-in-class floor protection, debris rejection, or quiet operation vs. other high-capacity wheels. If you need the higher capacity and want greater floor protection or noise reduction, we encourage you to explore polyurethane caster wheels. Phenolic wheels should not be used in wet applications, as the moisture can weaken the wheel once the protective shell of the phenolic wheel is compromised.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Swivel
Brake: Tread Lock
Load Capacity: 1000 lb
Wheel Diameter: 5 in

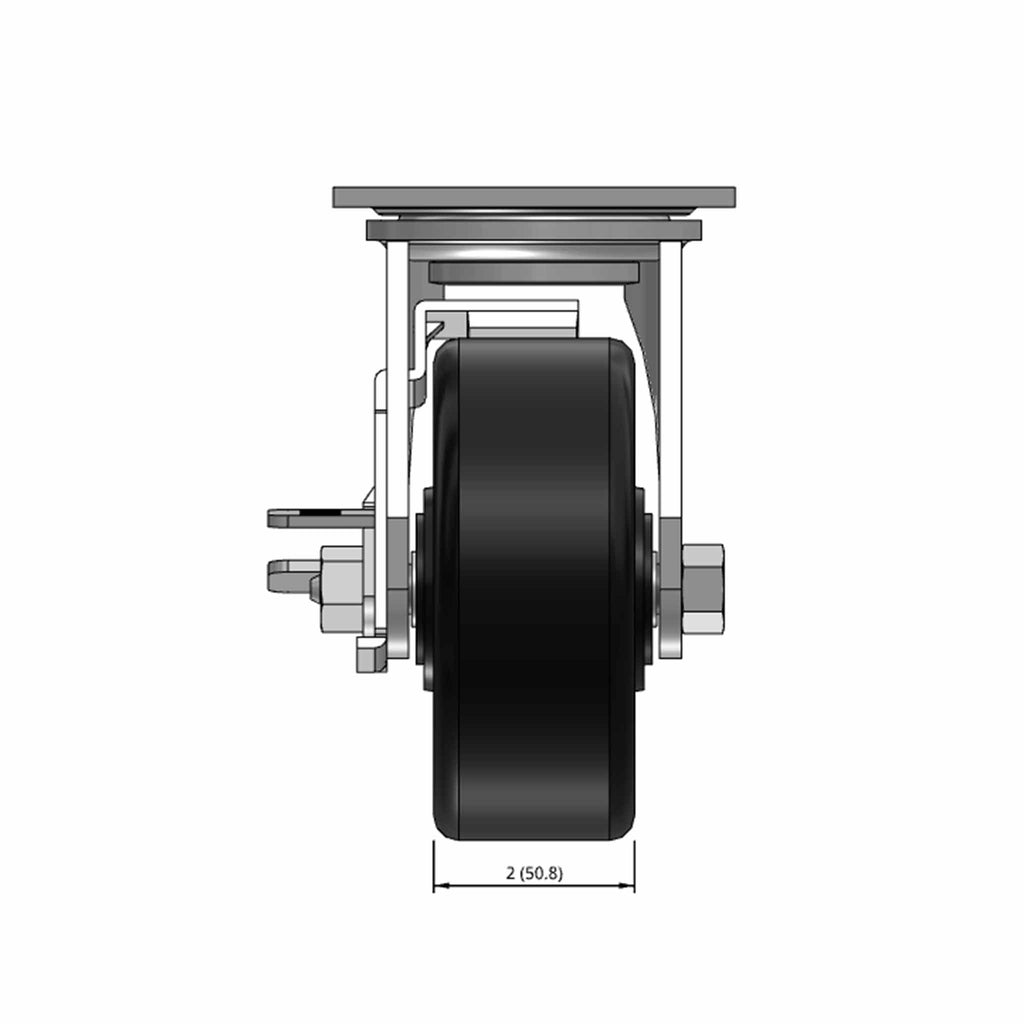

Wheel Tread Width: 2 in
Wheel Description: Phenolic
Wheel Color: Black
Wheel Bearing: Roller
Wheel Profile: Flat with Slightly Rounded Edges
Wheel Hardness: 90(+/-5) Shore D
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength

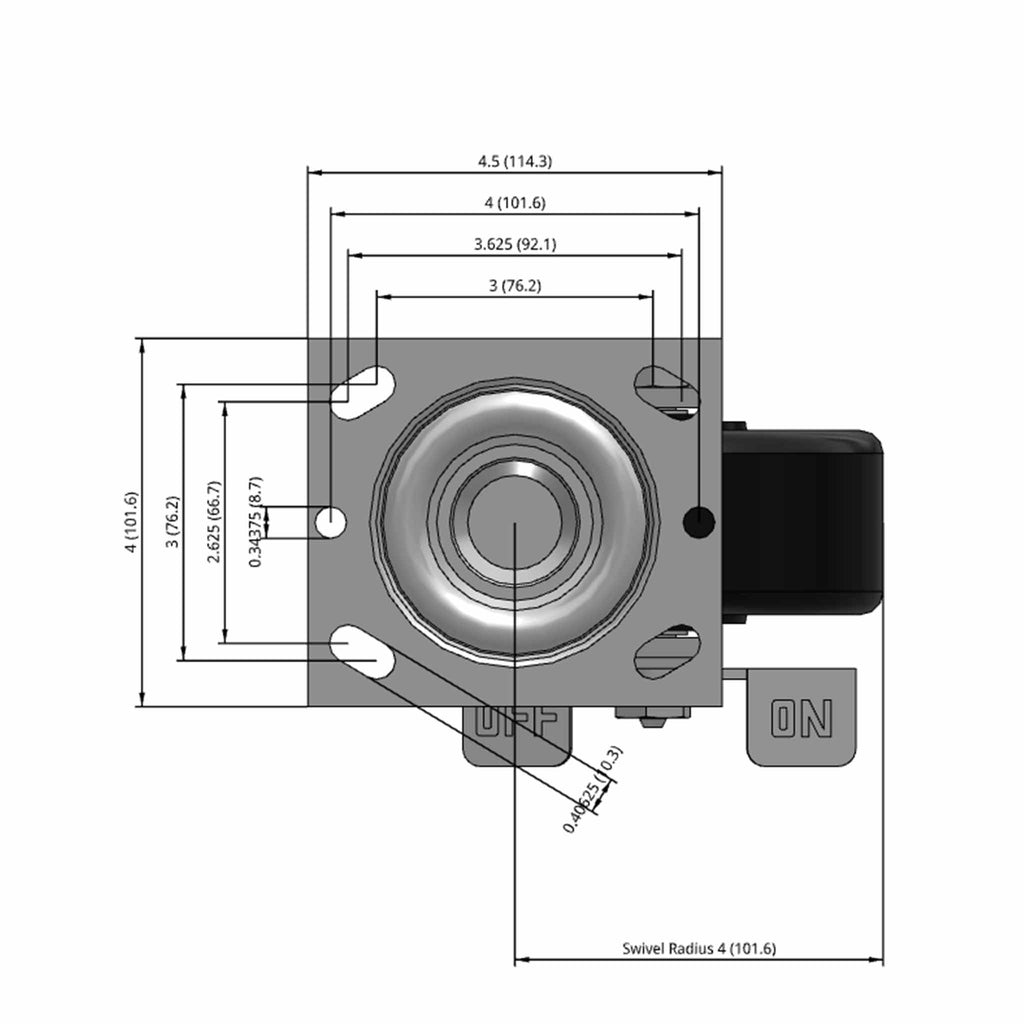

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

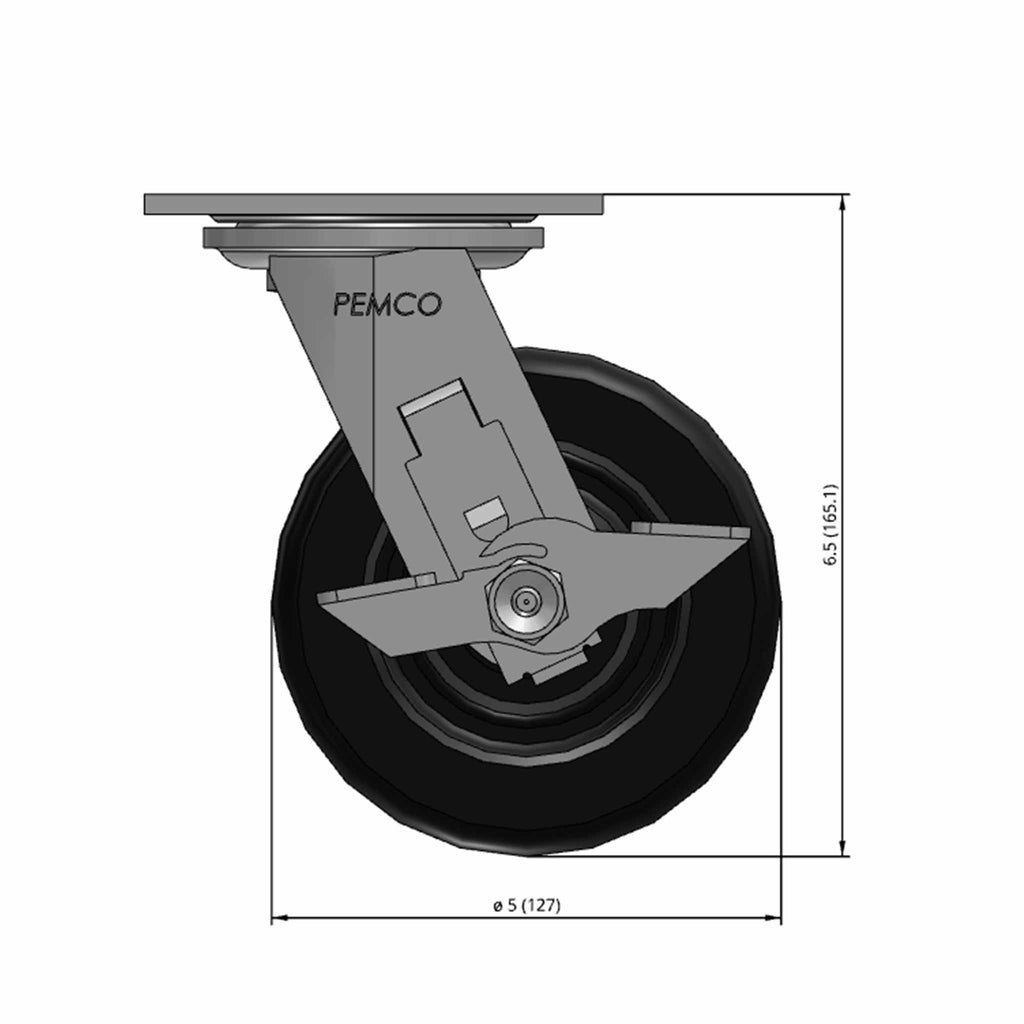

Mounting Height: 6.5 in
Swivel Radius: 4 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
Use Download CAD (must select file type to enable download) or Download PDF datasheet buttons below to download our secure and native files.
