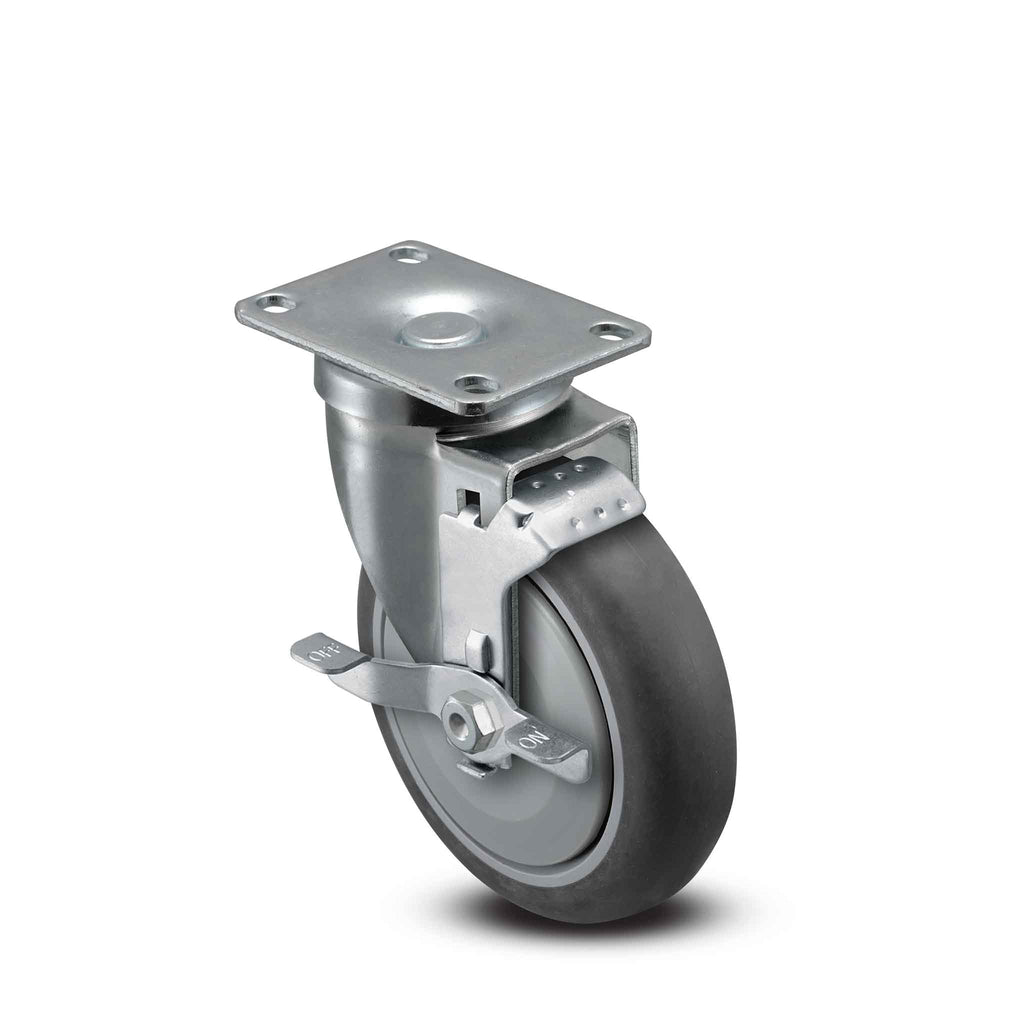

This swivel Pemco A-5" x 1-1/4" Thermo-Rubber (TPR) wheel plate caster with side locking brake is ideal for applications where floor protection, quiet mobility, and/or vibration mitigation is desired. Featuring full thread guards (to prevent debris from entangling axle) and a precision ball bearing for easy mobility, Thermo-Rubber wheels are non-marking, smooth rolling, and resistant to most chemicals and oils. This popular series is competitively priced, yet features: thick high-strength steel construction, dual ball raceways, standard steel raceway dust cap (for longer life), RoHS compliant zinc plating for corrosion resistance, and a one-year warranty.
Series: 25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Caster Type: Swivel
Brake: Side Brake
Load Capacity: 325 lb
Wheel Diameter: 5 in

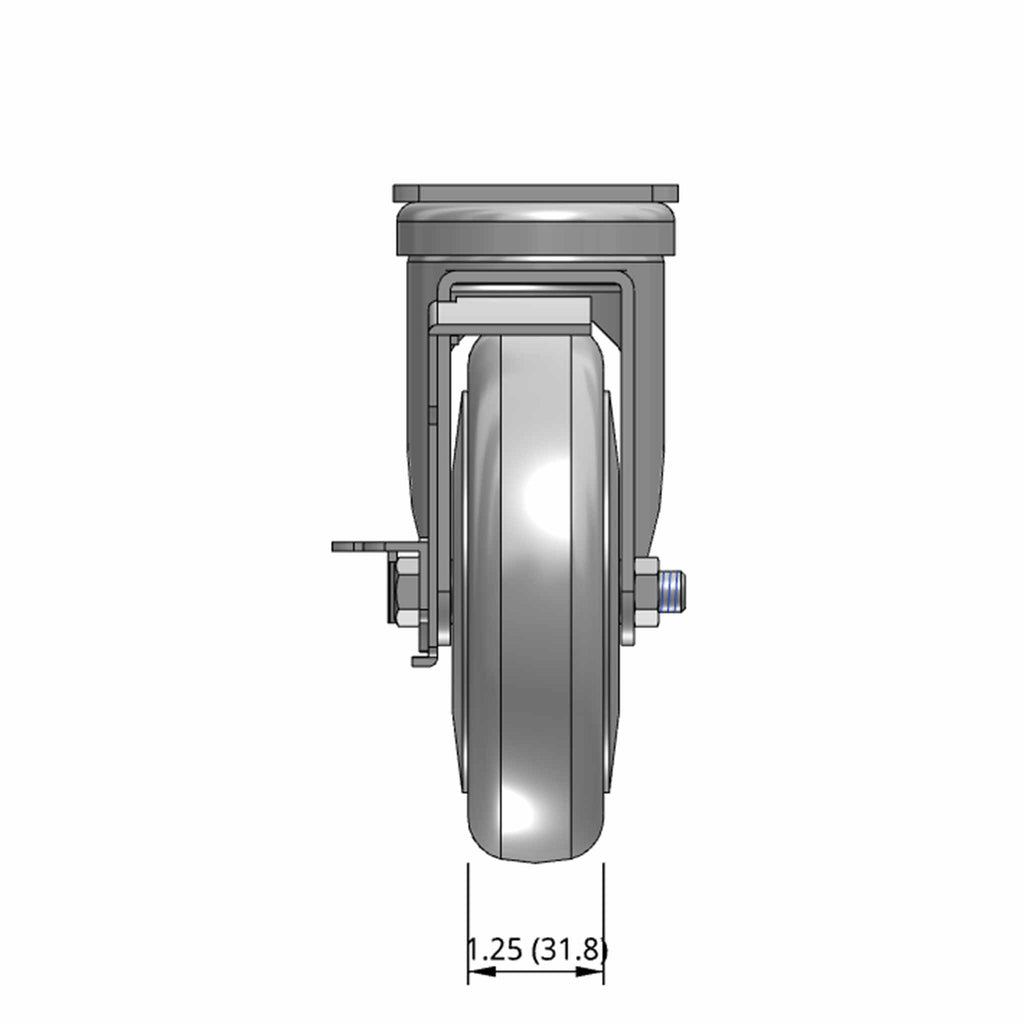

Wheel Tread Width: 1.25 in
Wheel Description: Thermoplastic Rubber
Wheel Color: Grey on Grey
Wheel Bearing: Precision Ball
Wheel Profile: Slight Crown
Wheel Hardness: 75(+/-5) Shore A
Wheel Thread Guards: Full Thread Guards
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength

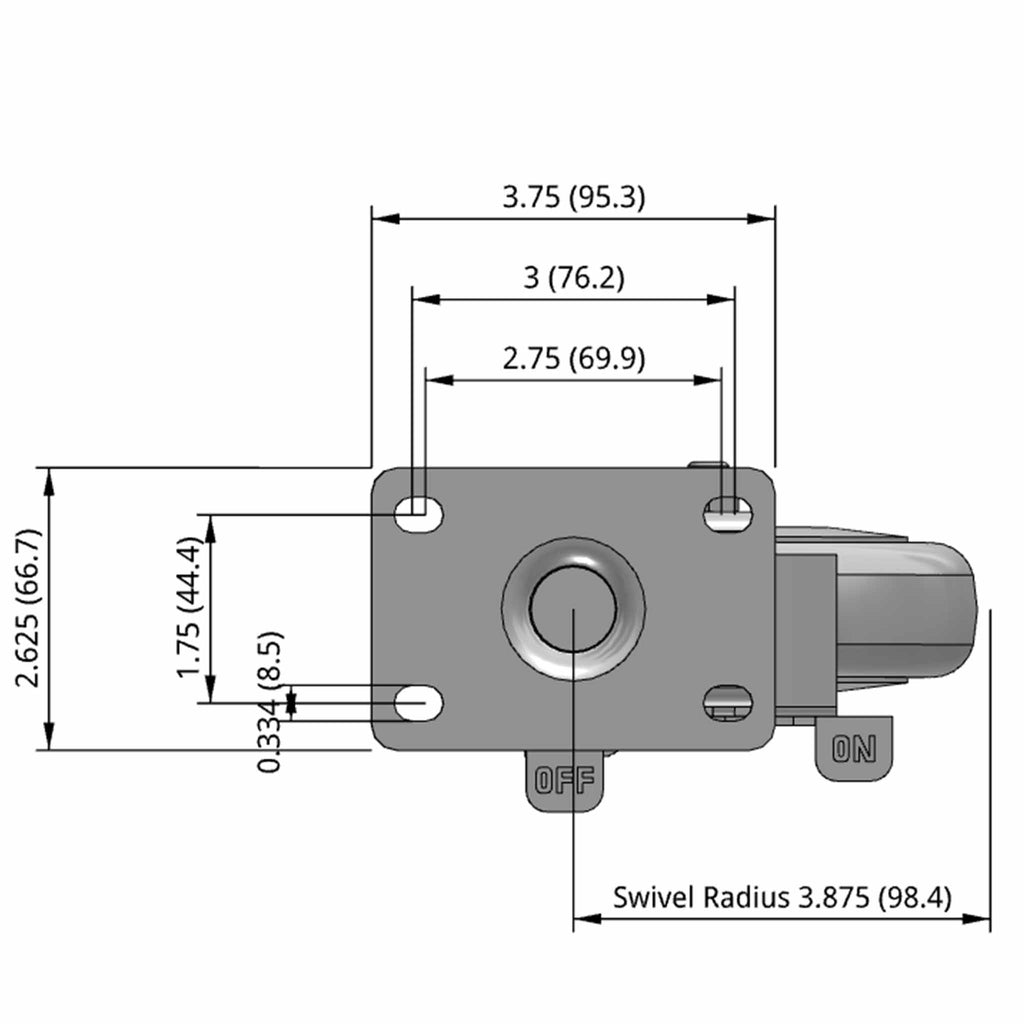

Fastening: 2-5/8" x 3-3/4" top plate
Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
Bolt Size Recommended: 5/16"

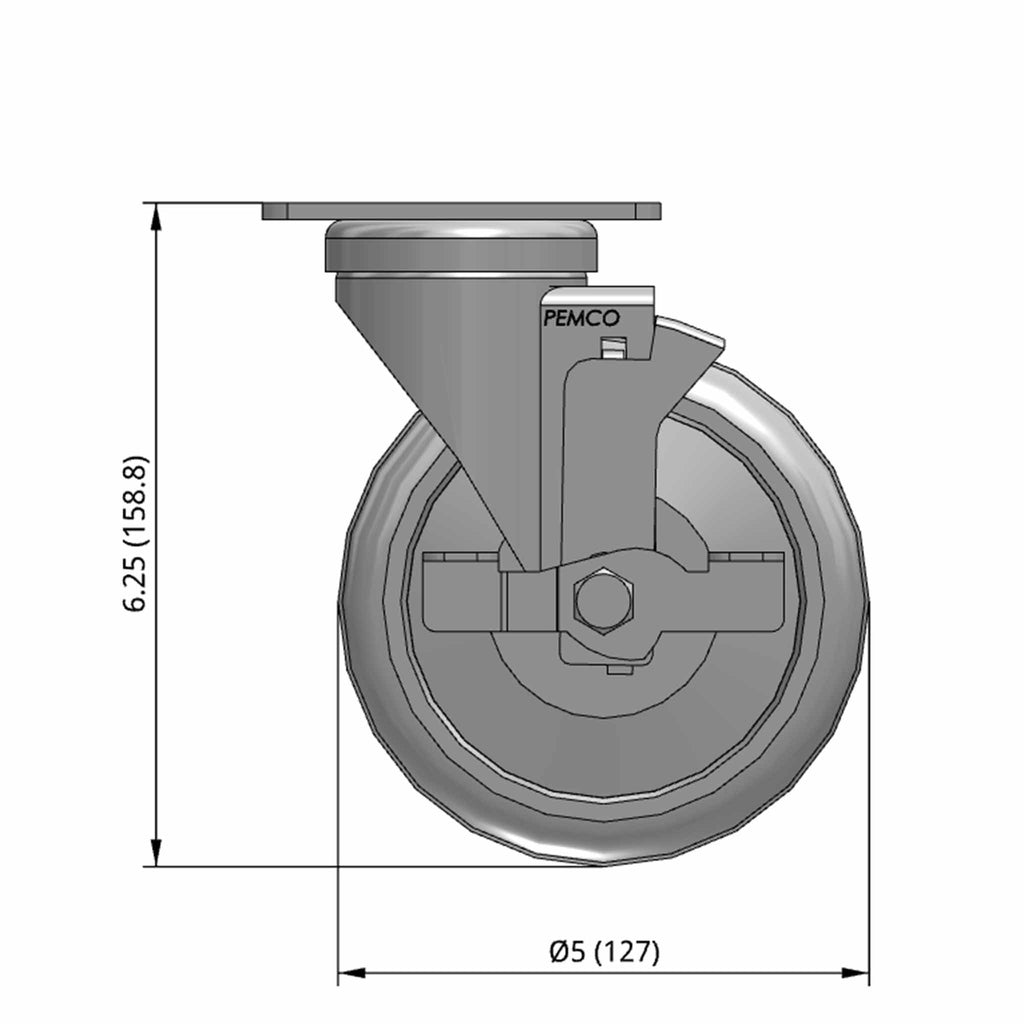

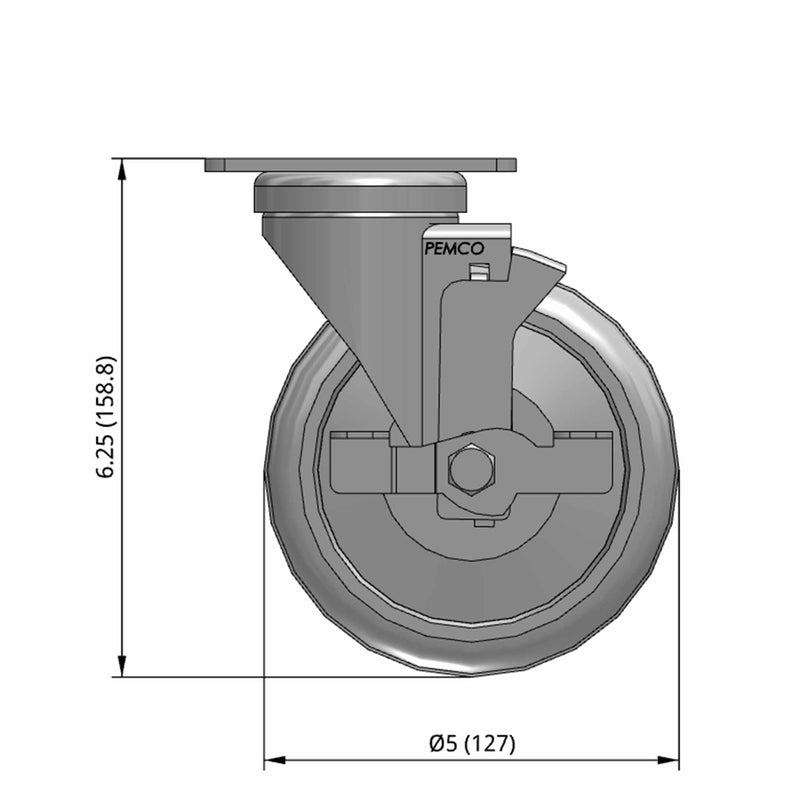

Mounting Height: 6.25 in
Swivel Radius: 3.88 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
CAD Model and Datasheet Downloads
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
