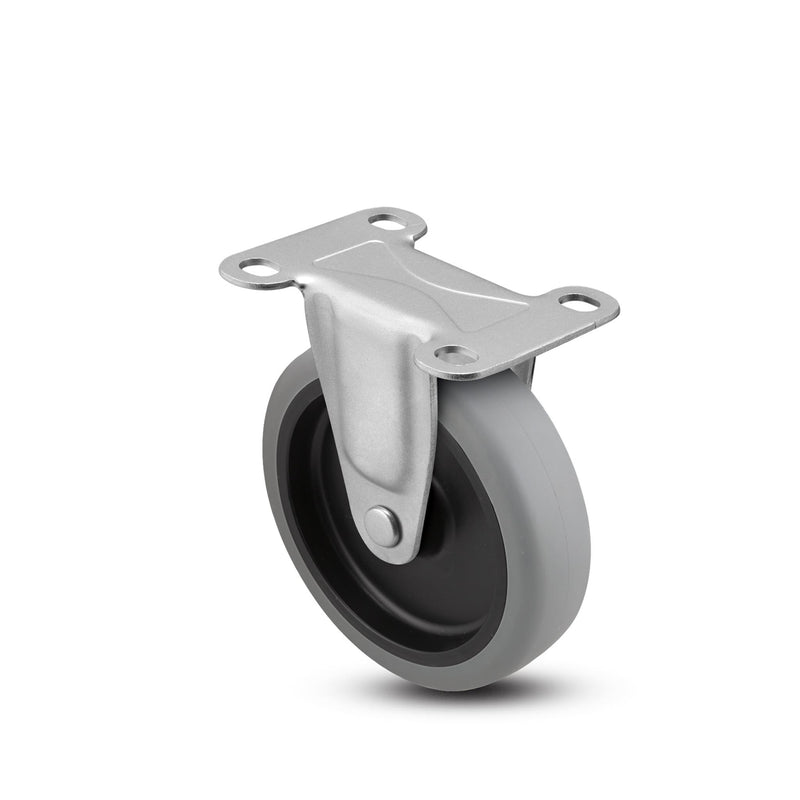

This USA made 5" x 15/16" thermoplastic rubber wheel rigid caster is quiet, smooth rolling, easy to start, and floor protective–perfect for light duty carts, equipment, or fixtures. Featuring an industry standard top plate and high strength steel, it is easy to replace any worn Rubbermaid cart casters out with these new ones.
Series: 20 Series (to 160 lb/ea)
Caster Type: Rigid
Load Capacity: 130 lb
Wheel Diameter: 5 in
Wheel Tread Width: 0.94 in
Wheel Description: Thermoplastic Rubber
Wheel Color: Grey
Wheel Bearing: Plain
Wheel Profile: Flat with Rounded Edges
Wheel Hardness: 75(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Rigid Construction
Fastening: 2-5/8" x 3-3/4" top plate
Bolt Hole Pattern: 1-3/4" x 2-3/4" to 3"
Bolt Size Recommended: 5/16"
Mounting Height: 5.88 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
Use Download CAD (must select file type to enable download) or Download PDF datasheet buttons below to download our secure and native files.
