This heavy duty 6" x 3" cast iron wheel caster with face contact brake offers high capacity and excellent durability to impact and shock loading, making it ideal for moving heavy loads in industrial environments. The USA made rigid fork legs are constructed from high quality, heat-treated 3/8" thick AISI 1045 laser-cut steel and fully welded (inside and outside) to the notched yoke base (containing the precision machined raceway and 1/2" ball bearings), delivering superior strength and smooth swiveling. The kingpinless design eliminates kingpin failure, a leading cause of caster failure in heavier applications. The heavy duty, premium cast iron wheel (sometimes referred to as semi-steel) offers one of the highest tensile strengths (30,000 psi) in the industry. These wheels are also ideal for higher heat applications, as they can handle up to 800°F temperatures (consult us for high temperature requirements prior to ordering). The caster also features a premium 3-year warranty and RoHS compliant zinc plating with clear coat for superior corrosion resistance.
Series: 75 Series - Kingpinless (to 4100 lb/ea)
Caster Type: Swivel
Brake: Face Contact Brake (FBB)
Load Capacity: 2800 lb
Wheel Diameter: 6 in

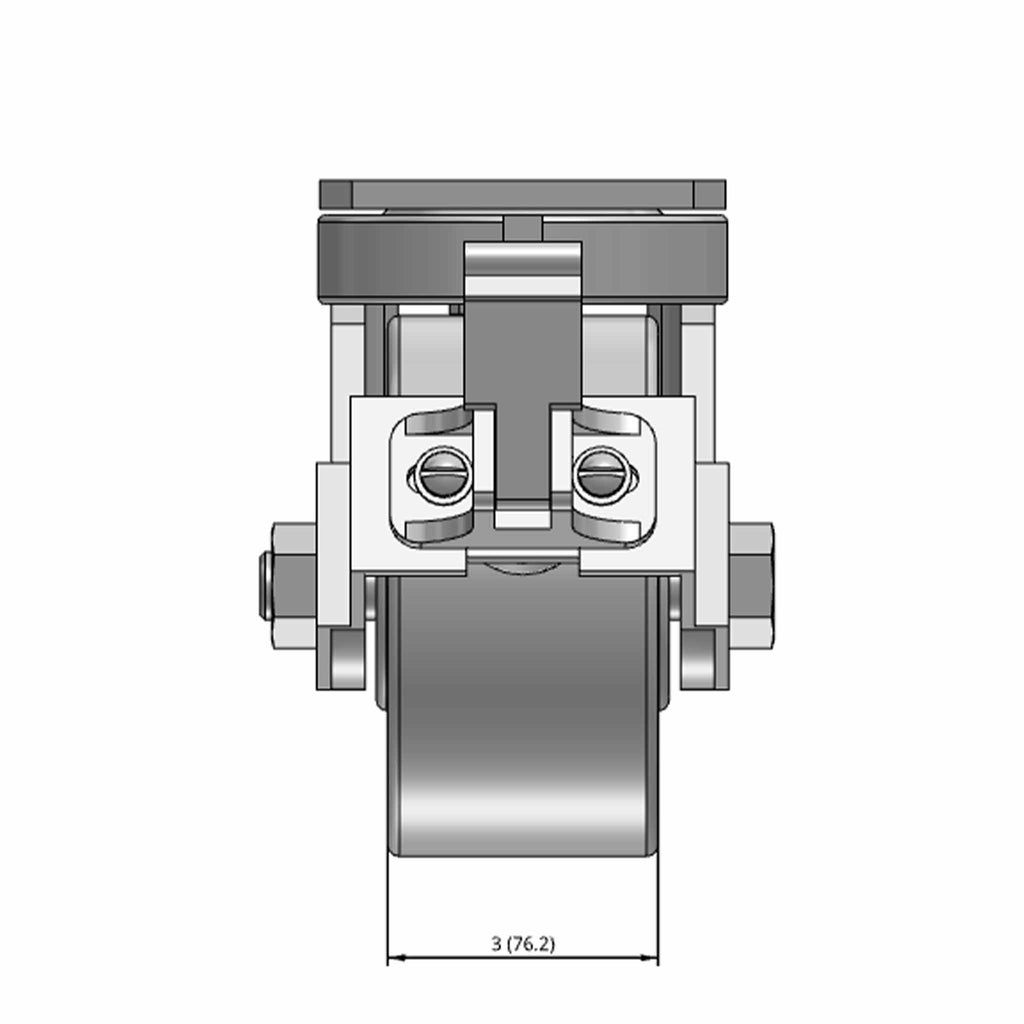

Wheel Tread Width: 3 in
Wheel Description: CA - Cast Iron
Wheel Color: Grey Enamel
Wheel Bearing: Roller
Wheel Profile: Flat with Rounded Edges
Wheel Hardness: Brinell 145
Wheel Thread Guards: None
Raceway Type: Kingpinless Heat Treated 1/2" Ball Bearing Raceway with Zerk

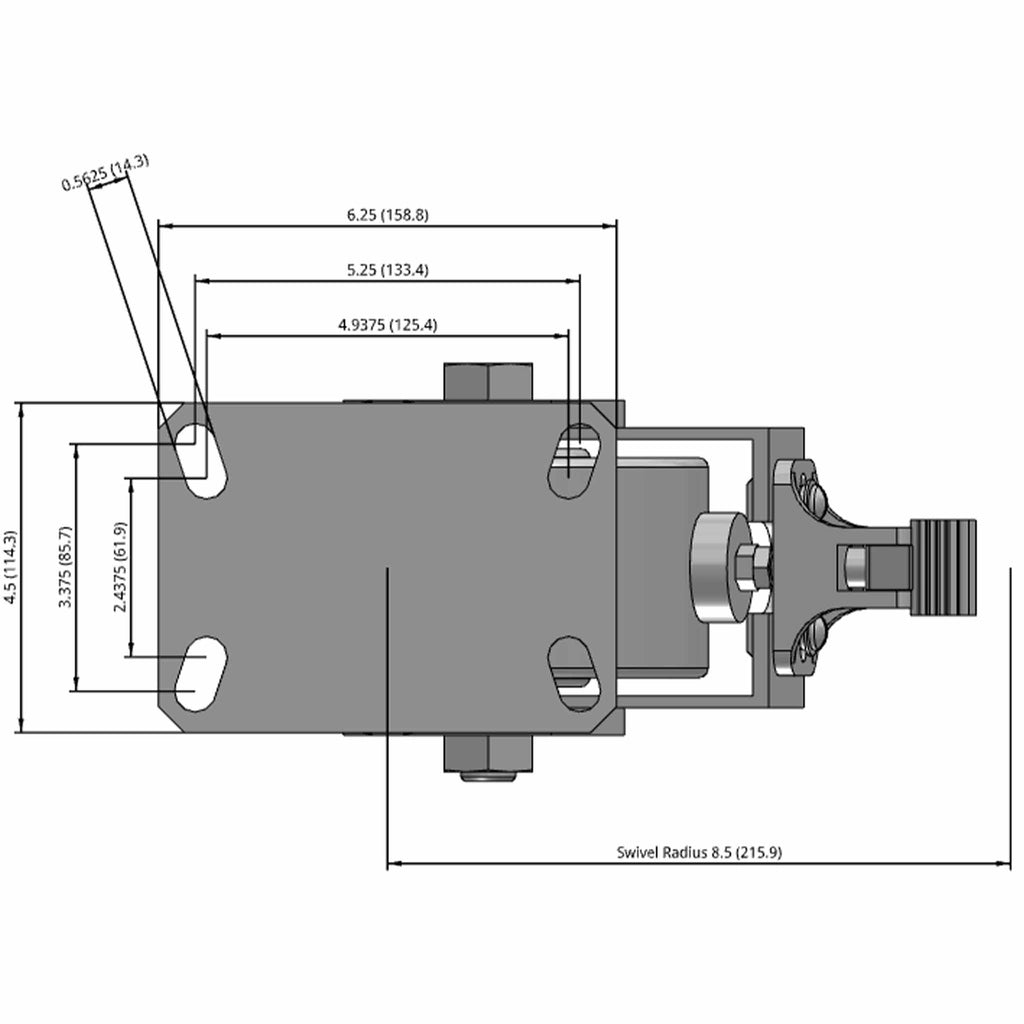

Fastening: 6-1/4'' x 4-1/2'' top plate
Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Bolt Size Recommended: 1/2"

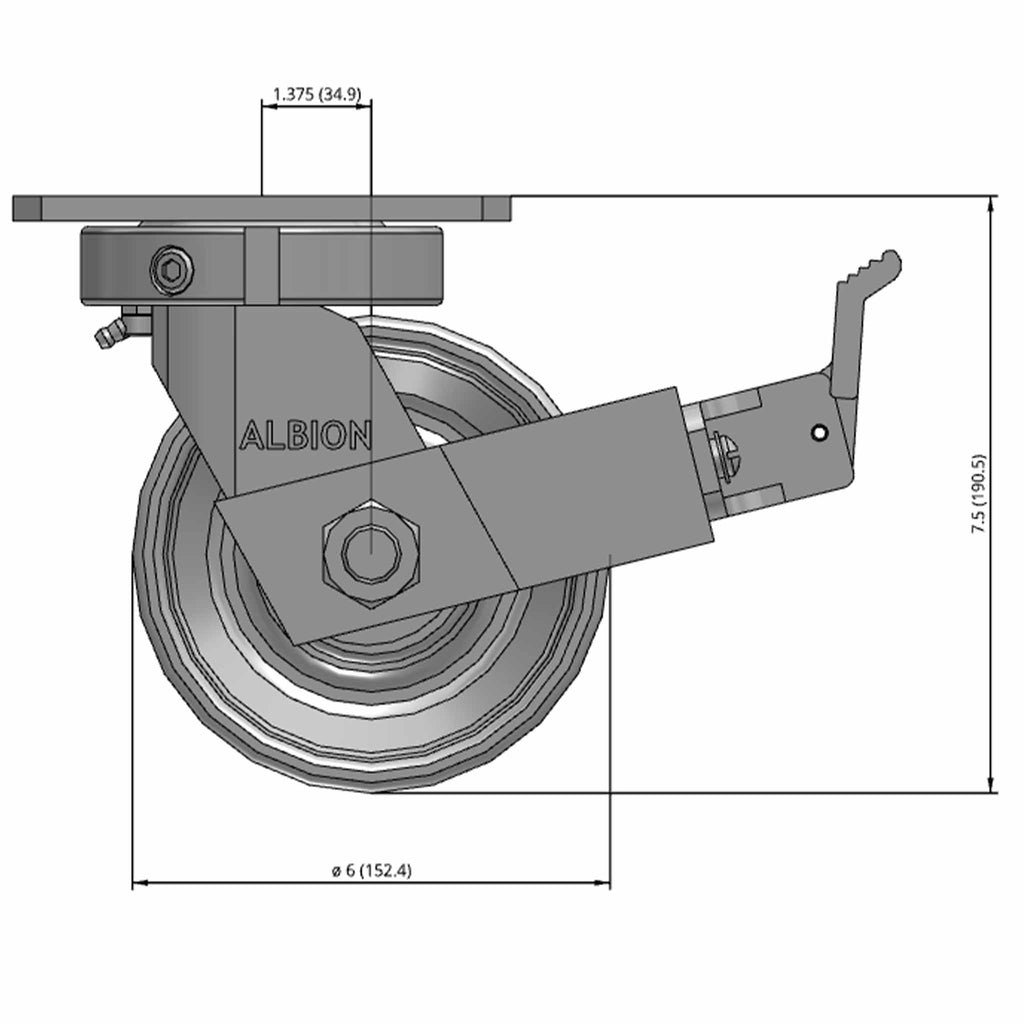

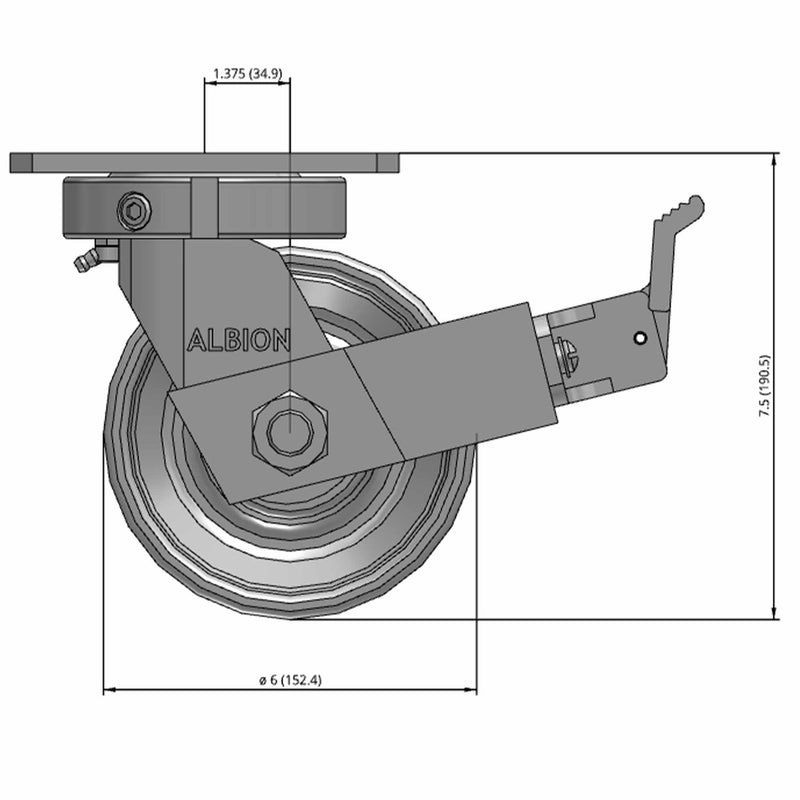

Mounting Height: 7.5 in
Swivel Radius: 8.5 in
Operating Temperature Range: Up to +800°F; special grease required for high-temp applications; contact us for details
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
CAD Model and Datasheet Downloads
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
