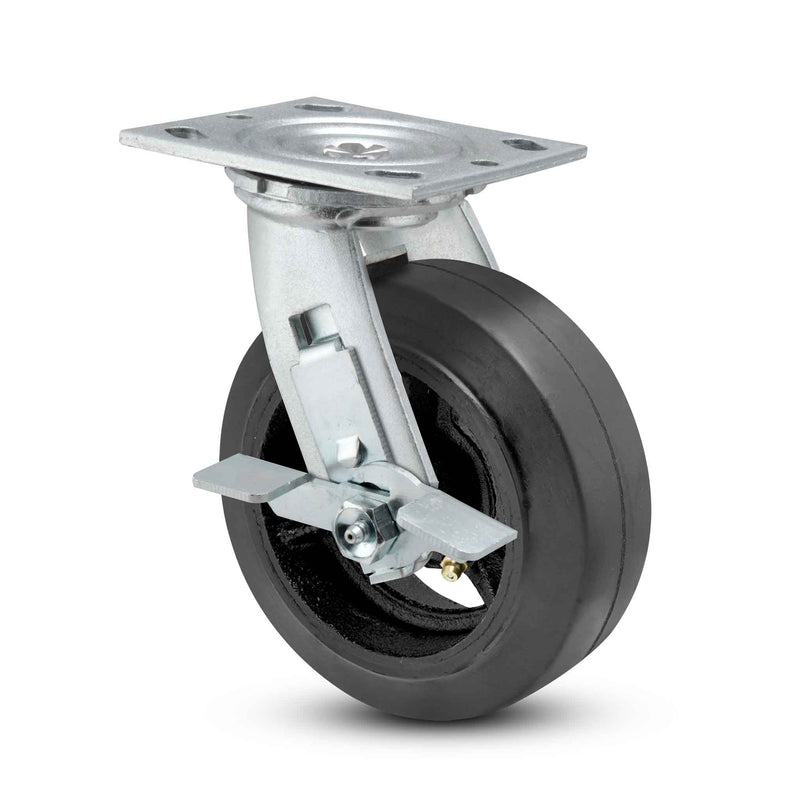

This swivel Pemco 6"x2" black rubber-on-iron wheel plate caster with positive locking side brake (protected within leg and featuring thermoplastic brake grip) is ideal for economical replacements on industrial carts and trucks. We always recommend upgrading to a higher performing rubber wheel that will last much longer (and not cost that much more), like our debris resistant (no more dragging around nails or screws) and more ergonomic Xtra-Soft wheels or standard TPR wheels (both are USA made). This popular line is competitively priced and features: 1/4" thick steel construction, 4"x4.5" top plate, dual ball bearing raceways, welded legs for strength, grease zerks in axle and raceway, RoHS compliant zinc plating for corrosion resistance, and a one-year warranty.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Swivel
Brake: Tread Lock
Load Capacity: 550 lb
Wheel Diameter: 6 in

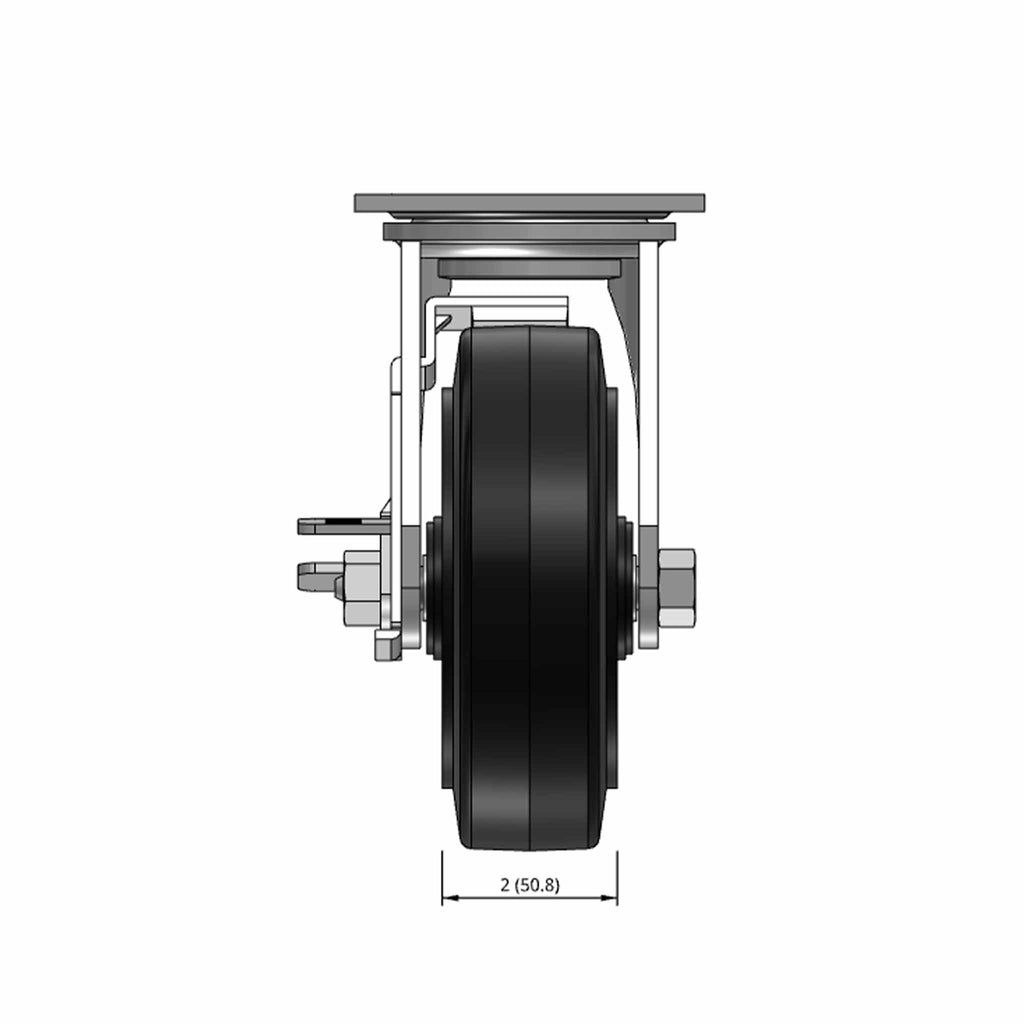

Wheel Tread Width: 2 in
Wheel Description: Mold-on Rubber
Wheel Color: Black
Wheel Bearing: Roller
Wheel Profile: Flat with Slightly Rounded Edges
Wheel Hardness: 85(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength

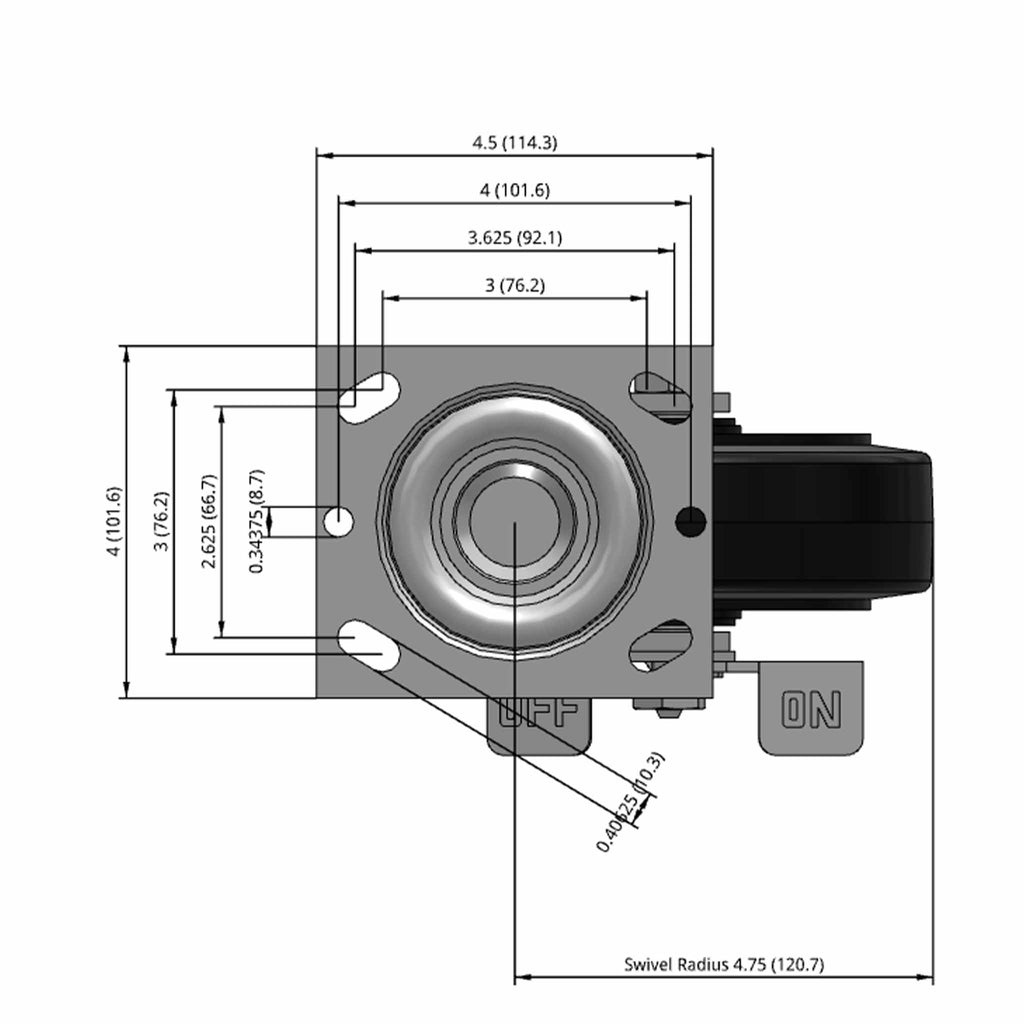

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

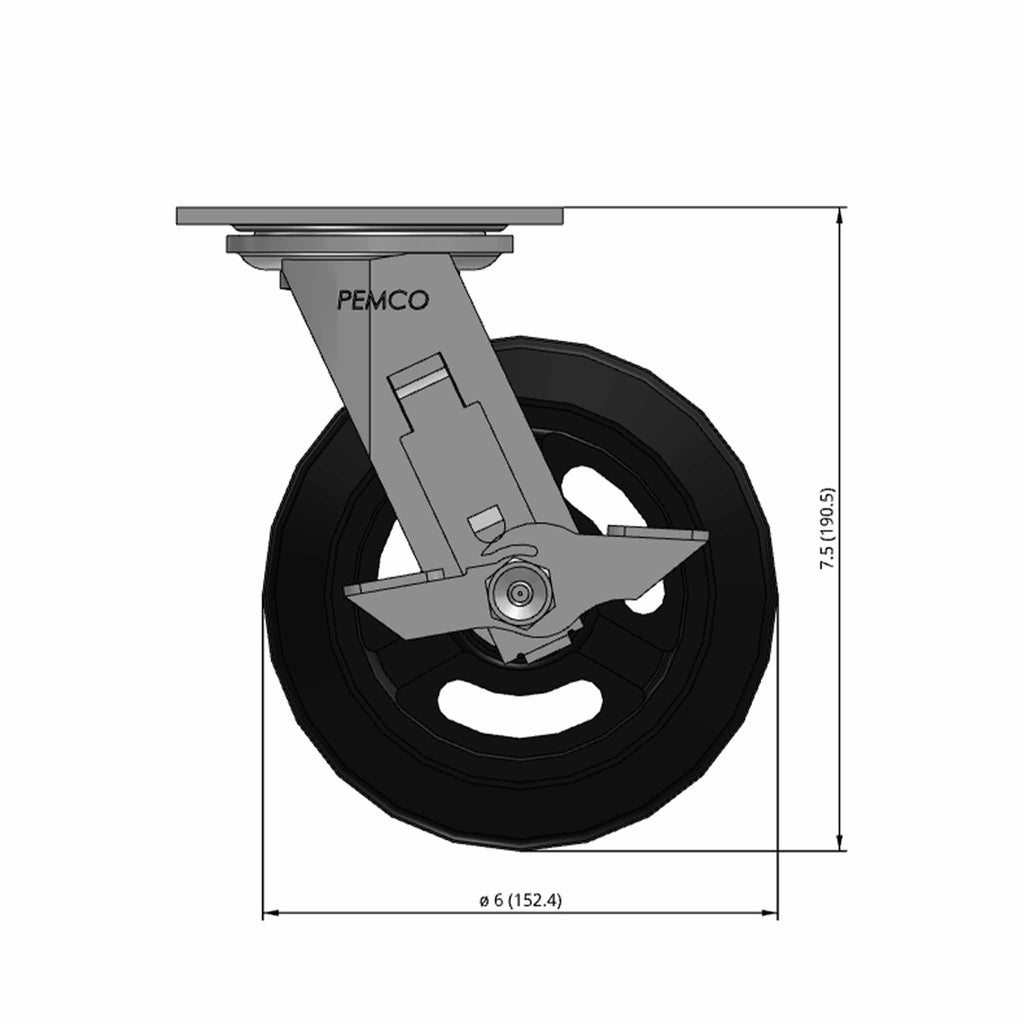

Mounting Height: 7.5 in
Swivel Radius: 4.75 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
