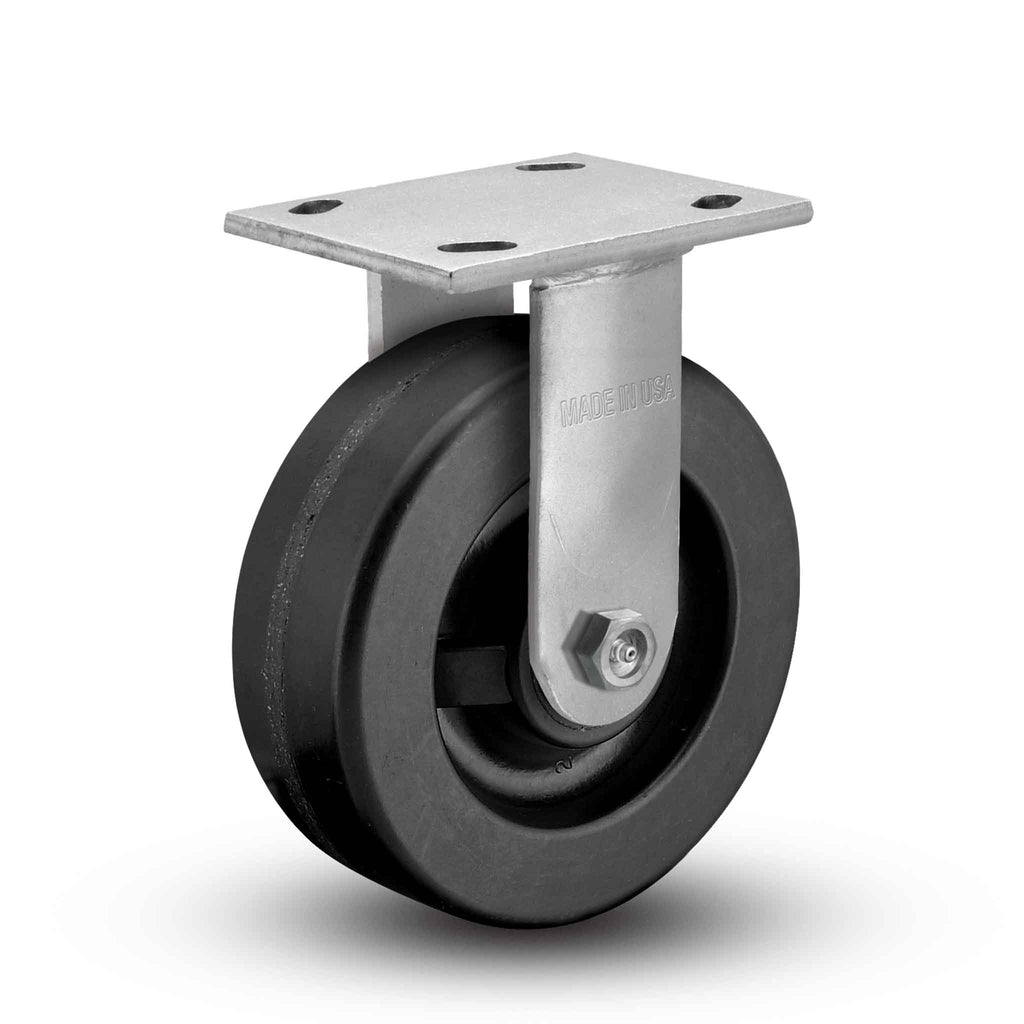

This USA made 6" x 2" phenolic wheel rigid caster with 4" x 4.5" top plate provides high-capacity and impact resistance for your industrial application. Phenolic caster wheels are a long time trusted solution due to their strength and economical price point (cheaper than steel wheels and offering similar capacities). Phenolic wheels are hard (90D hardness), making them easy to roll, and they provide excellent durability when moving or supporting heavier loads (will not flat spot). However, this hardness does not provide best-in-class floor protection, debris rejection, or quiet operation vs. other high-capacity wheels. If you need the higher capacity and want greater floor protection or noise reduction, we encourage you to explore polyurethane caster wheels or nylon caster wheels. Phenolic wheels should not be used in wet applications, as the moisture can weaken the wheel once the protective shell of the phenolic wheel is compromised. This caster features a welded rigid caster rig and phenolic wheel that are manufactured in the United States, providing quality and supply chain dependability.. This caster also features a RoHS compliant zinc plating, for corrosion resistance, along with a premium 3-year warranty.
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Caster Type: Rigid
Load Capacity: 1200 lb
Wheel Diameter: 6 in

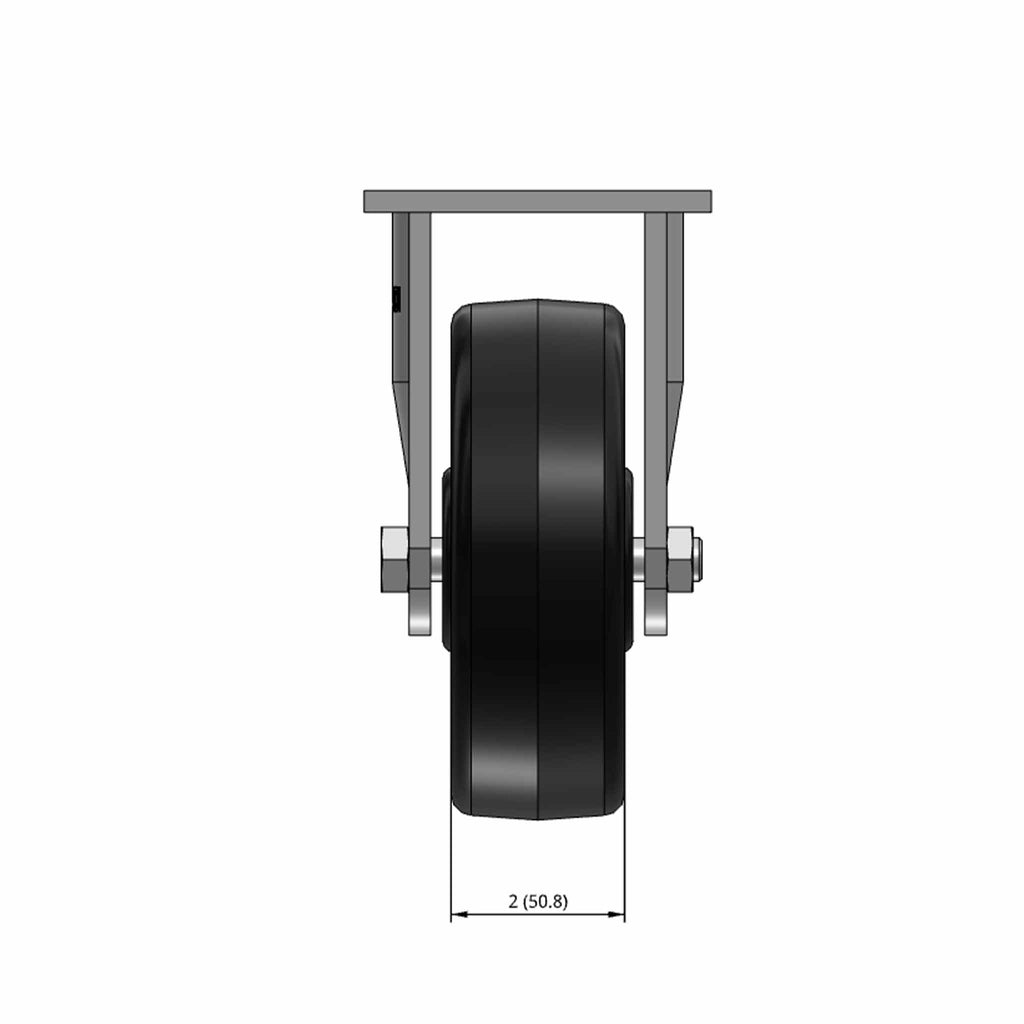

Wheel Tread Width: 2 in
Wheel Description: TM - Phenolic
Wheel Color: Black Phenolic Resin
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: Rockwell 102 E
Wheel Thread Guards: None
Raceway Type: Rigid Construction

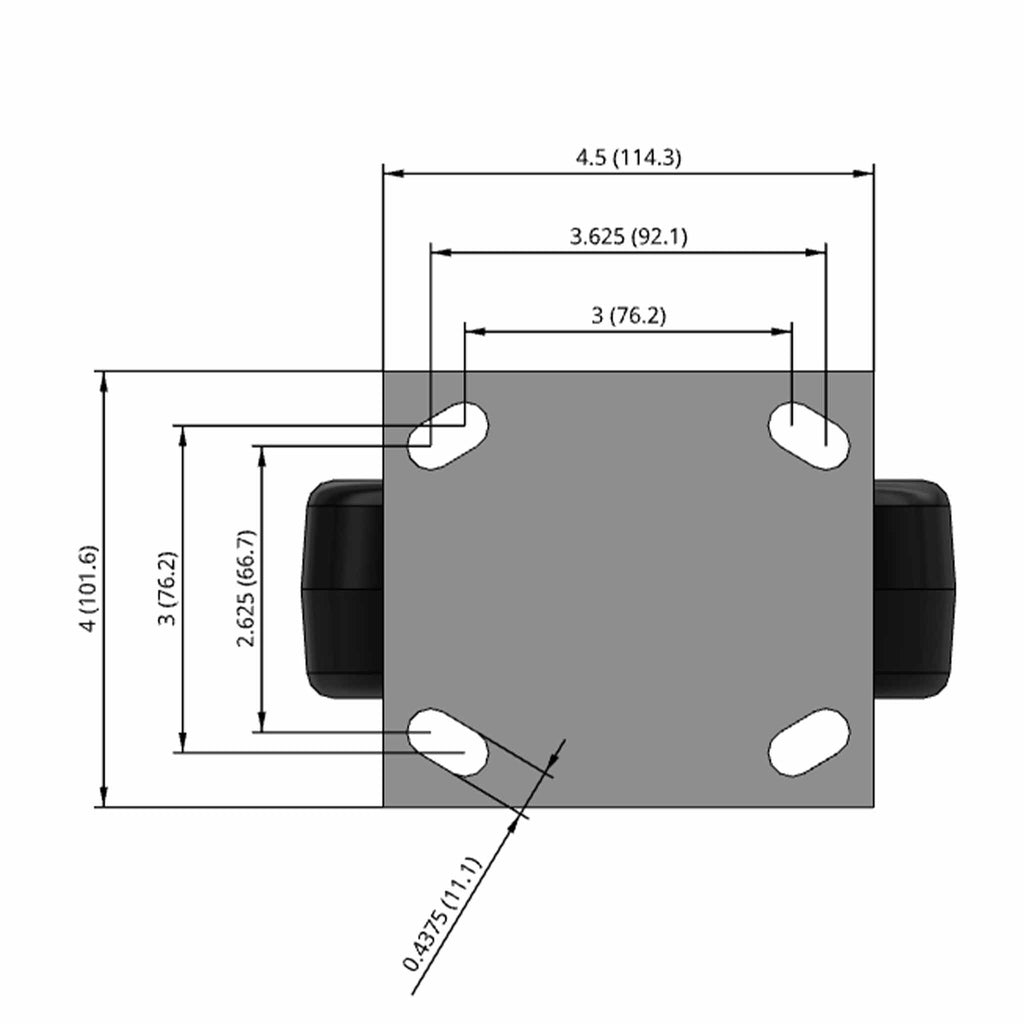

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

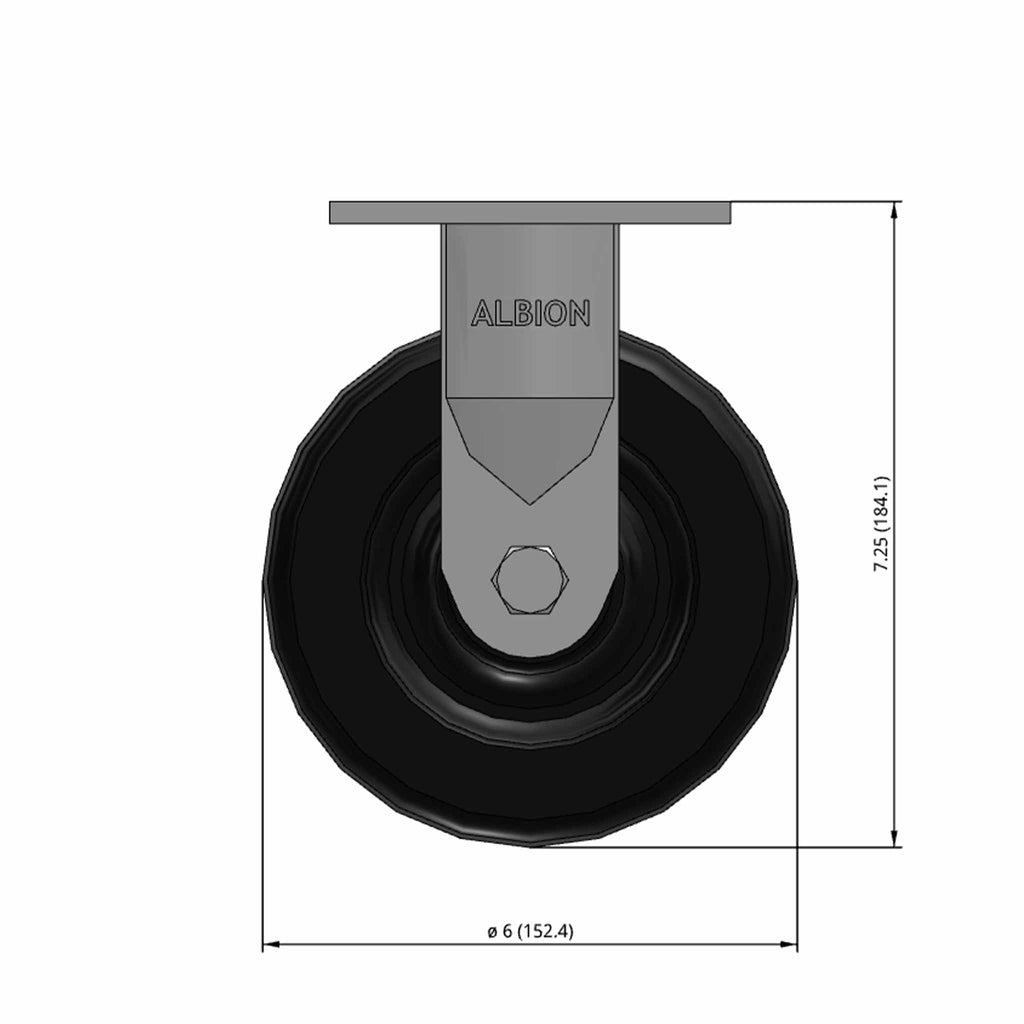

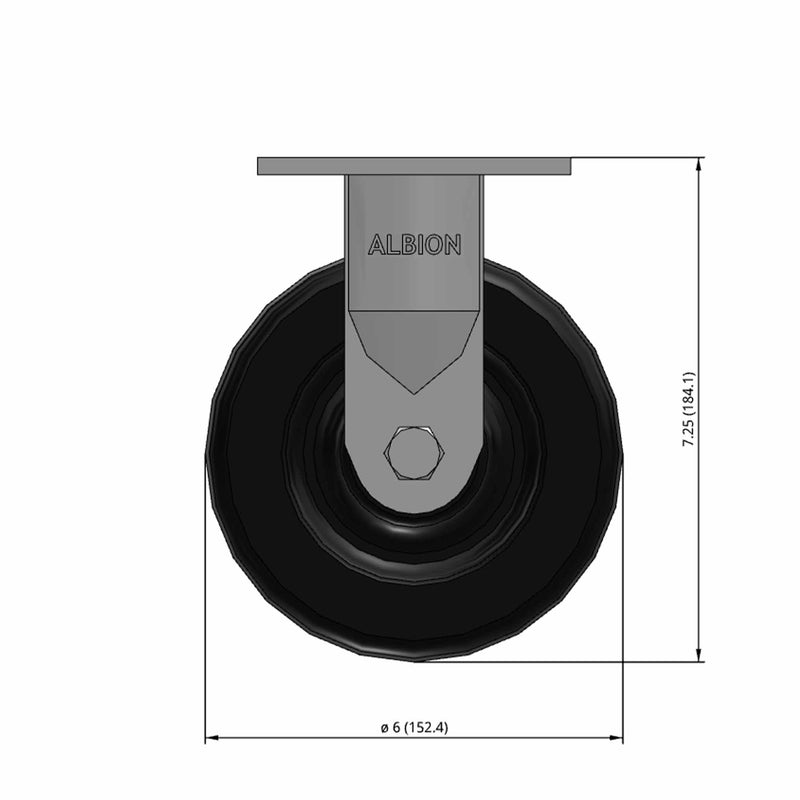

Mounting Height: 7.25 in
Operating Temperature Range: -65°F to +250°F (+300°F intermittent)
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
