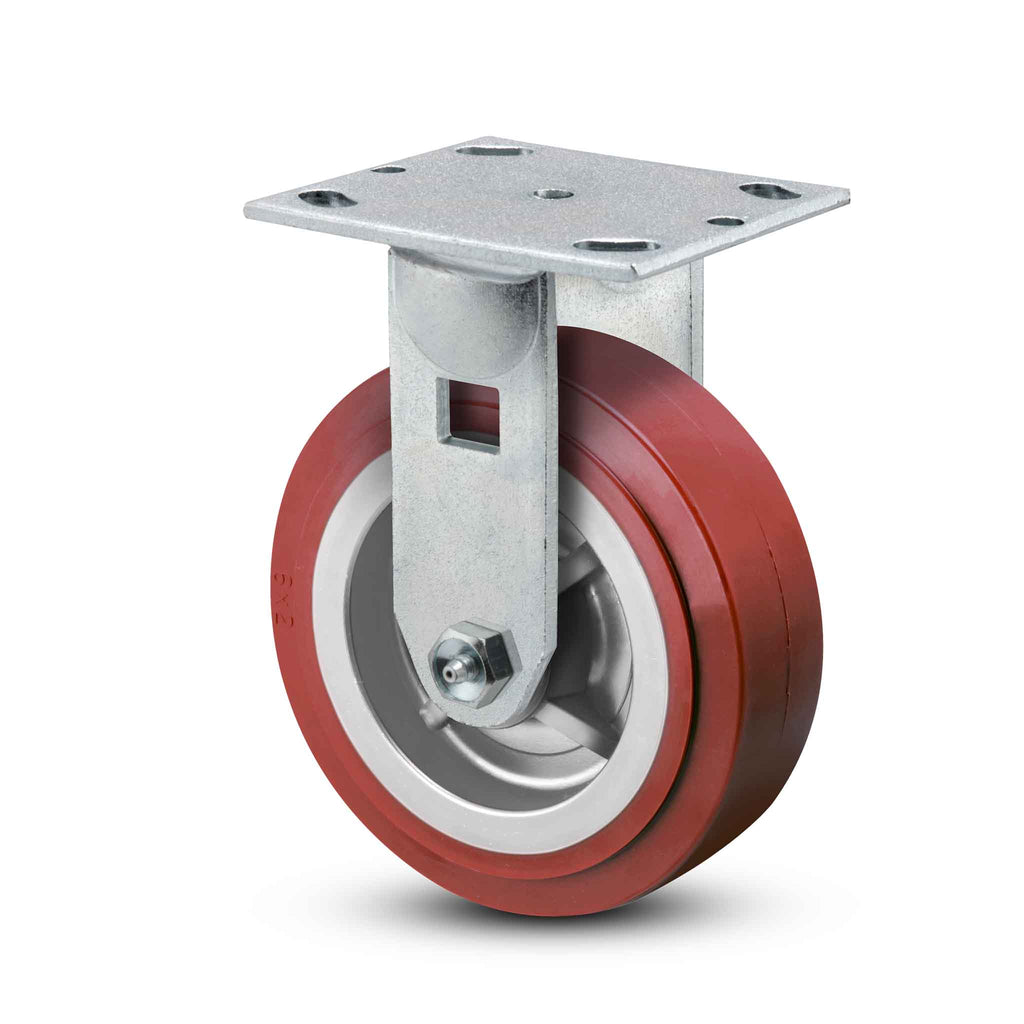

This rigid Pemco 6"x2" Thermo-Urethane (TPU) wheel plate caster is ideal for applications where floor protection, durability, and greater capacity (versus rubber wheels) is desired. Our USA-made Thermo-Urethane wheels are non-marking, smooth rolling (standard with roller bearings), and highly resistant to chemicals and oils–an overall very versatile wheel. This popular line is competitively priced and features: 1/4" thick steel construction, 4"x4.5" top plate, welded legs for strength, grease zerk in axle, RoHS compliant zinc plating for corrosion resistance, and a one-year warranty–this SKU is also NSF listed.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Rigid
Load Capacity: 720 lb
Wheel Diameter: 6 in
Wheel Tread Width: 2 in
Wheel Description: Thermo-Urethane
Wheel Color: Maroon/Grey
Wheel Bearing: Roller
Wheel Profile: Flat Tread
Wheel Hardness: 95(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Rigid Construction
Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"
Mounting Height: 7.5 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
CAD Model and Datasheet Downloads
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
