This swivel Pemco 8"x2" polyurethane-on-iron wheel plate caster with positive locking side brake (protected within leg and featuring thermoplastic brake grip) is ideal for applications where floor protection and the greatest load capacity and durability is required. These polyurethane wheels are tough, smooth rolling (standard with roller bearings), and highly resistant to chemicals and oils. The polyurethane (95 Shore A) is chemically bonded to the core to prevent tread separation. This popular line is competitively priced and features: 1/4" thick steel construction, 4"x4.5" top plate, dual ball bearing raceways, welded legs for strength, grease zerks in axle and raceway, RoHS compliant zinc plating for corrosion resistance, and a one-year warranty.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Swivel
Brake: Tread Lock
Load Capacity: 1250 lb
Wheel Diameter: 8 in

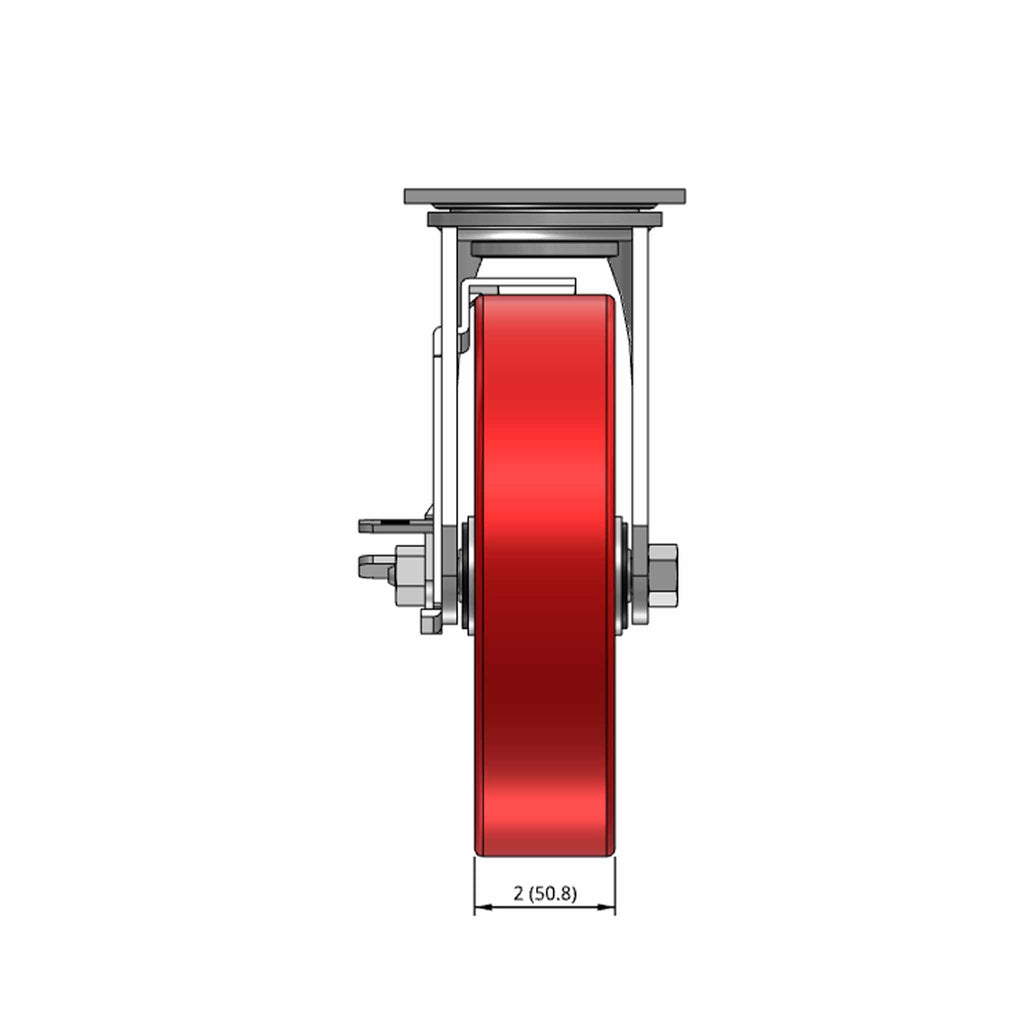

Wheel Tread Width: 2 in
Wheel Description: Mold-on Poly
Wheel Color: Red
Wheel Bearing: Roller
Wheel Profile: Flat Tread
Wheel Hardness: 95(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength

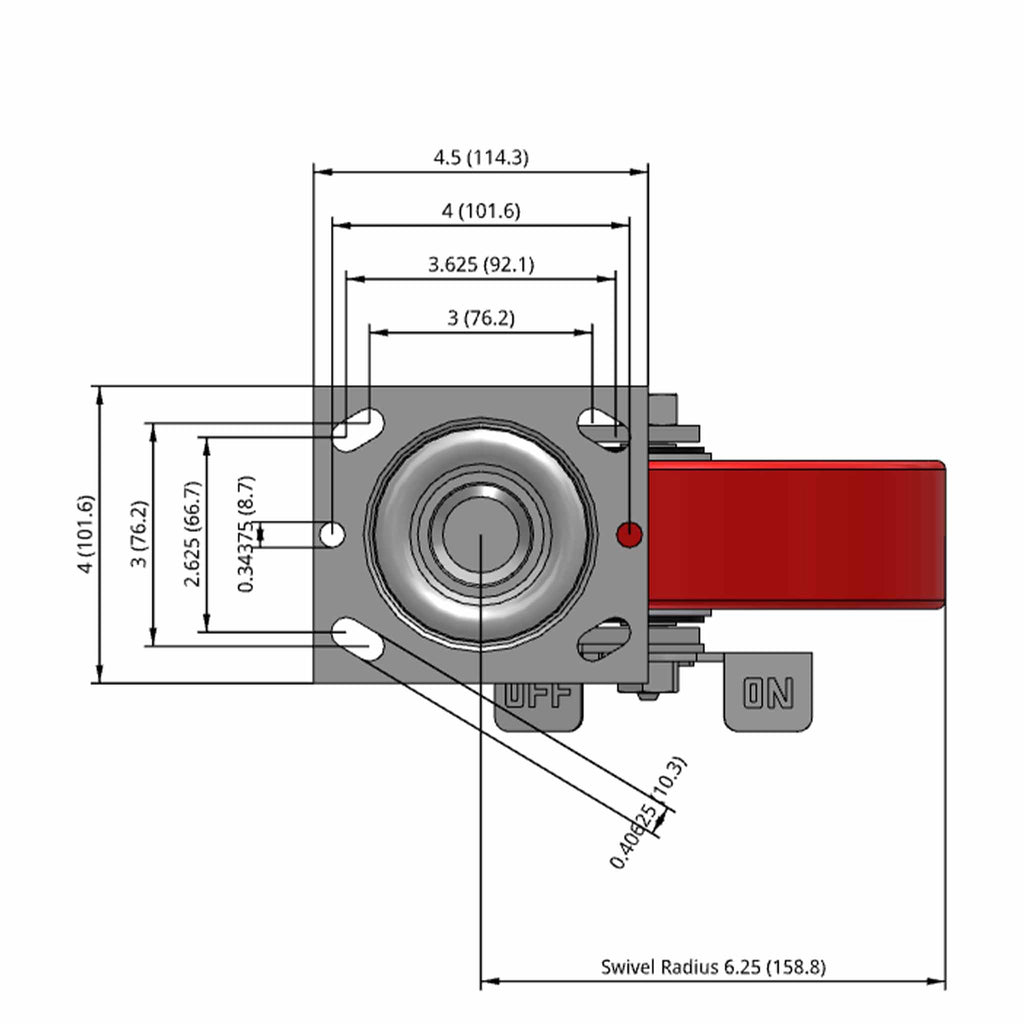

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

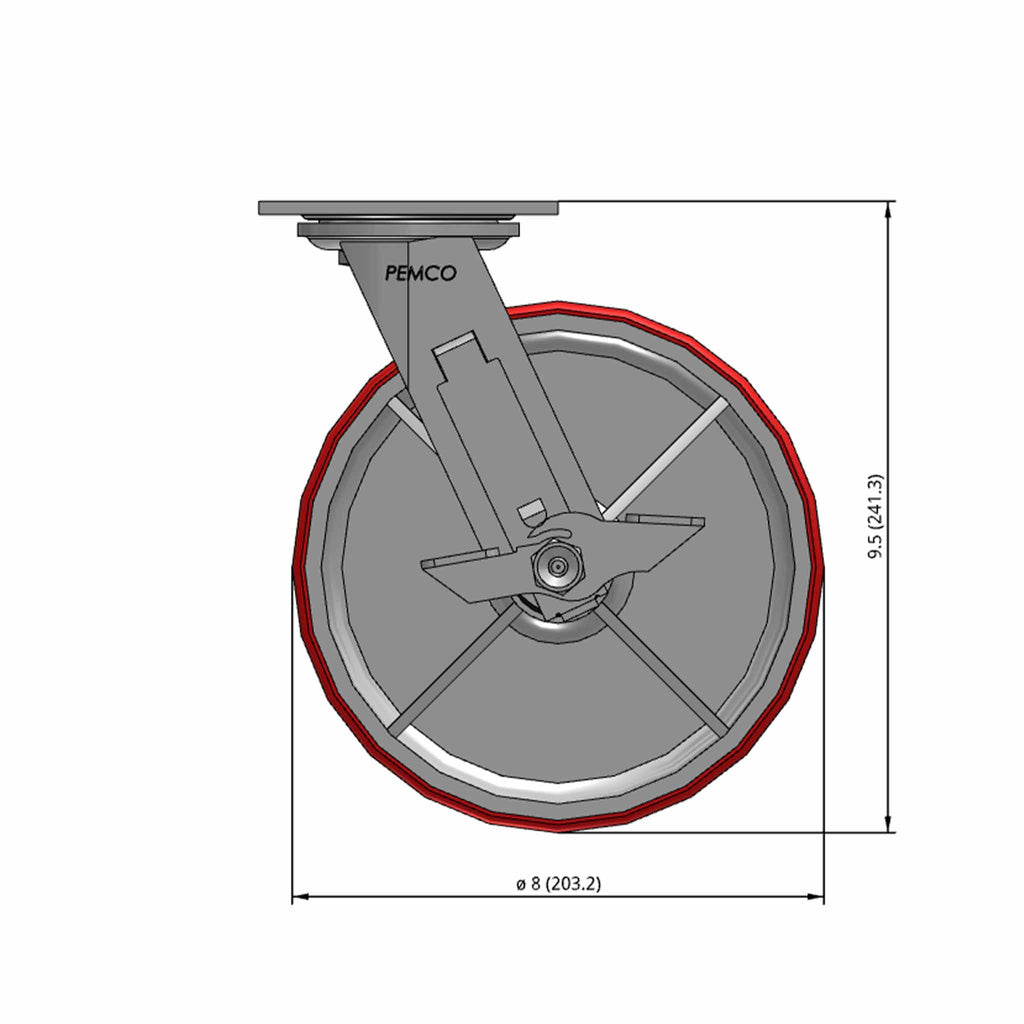

Mounting Height: 9.5 in
Swivel Radius: 6.25 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
CAD Model and Datasheet Downloads
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
