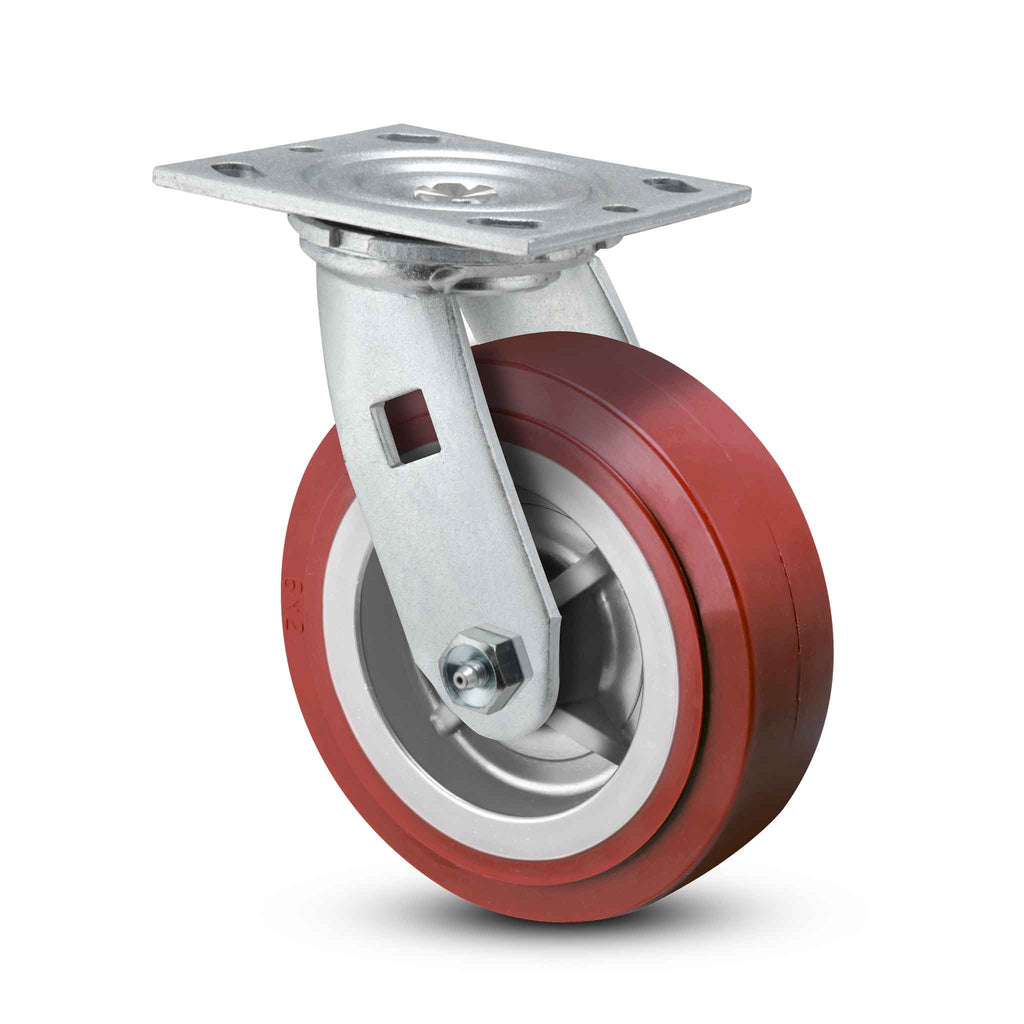

This swivel Pemco 8"x2" Thermo-Urethane (TPU) wheel plate caster is ideal for applications where floor protection, durability, and greater capacity (versus rubber wheels) is desired. Our USA-made Thermo-Urethane wheels are non-marking, smooth rolling (standard with roller bearings), and highly resistant to chemicals and oils–an overall very versatile wheel. This popular line is competitively priced and features: 1/4" thick steel construction, 4"x4.5" top plate, dual ball bearing raceways, welded legs for strength, grease zerks in axle and raceway, RoHS compliant zinc plating for corrosion resistance, and a one-year warranty–this SKU is also NSF listed.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Swivel
Load Capacity: 800 lb
Wheel Diameter: 8 in

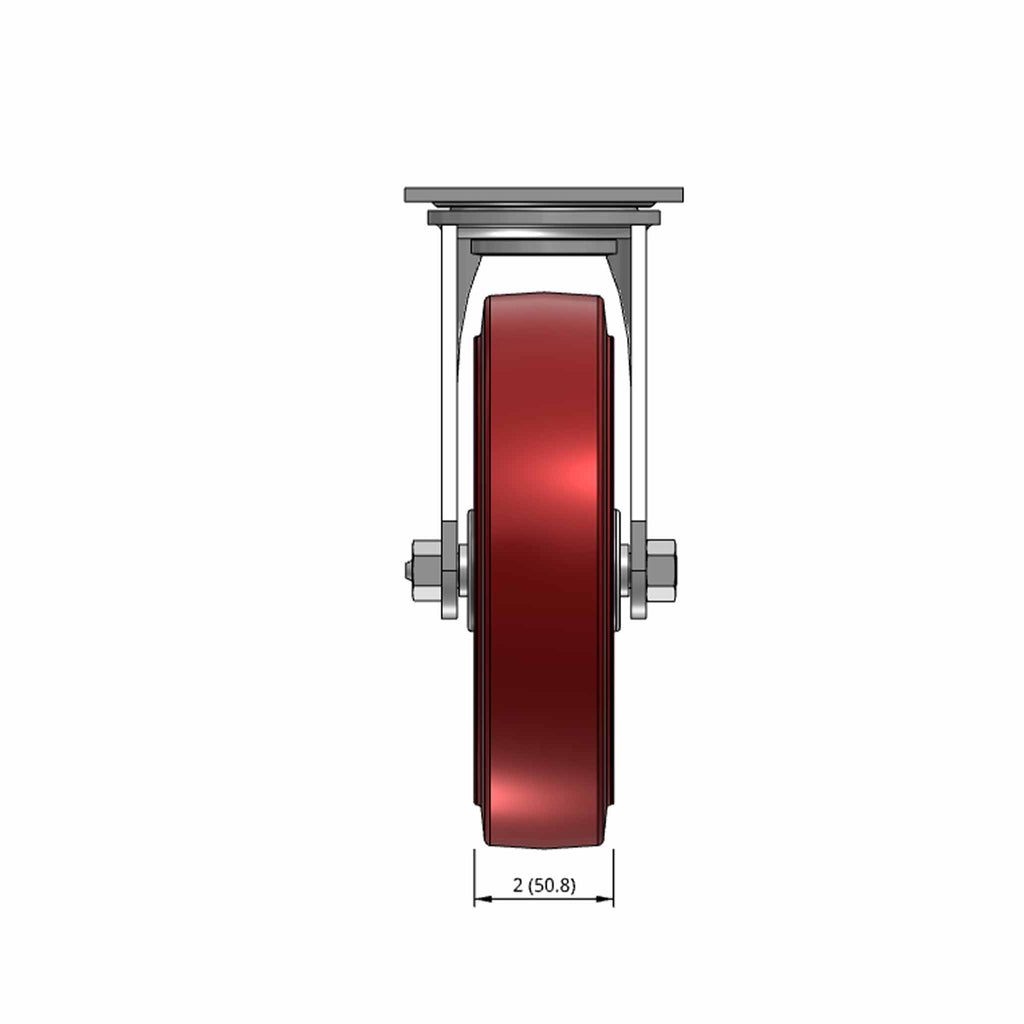

Wheel Tread Width: 2 in
Wheel Description: Thermo-Urethane
Wheel Color: Maroon/Grey
Wheel Bearing: Roller
Wheel Profile: Flat Tread
Wheel Hardness: 95(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength

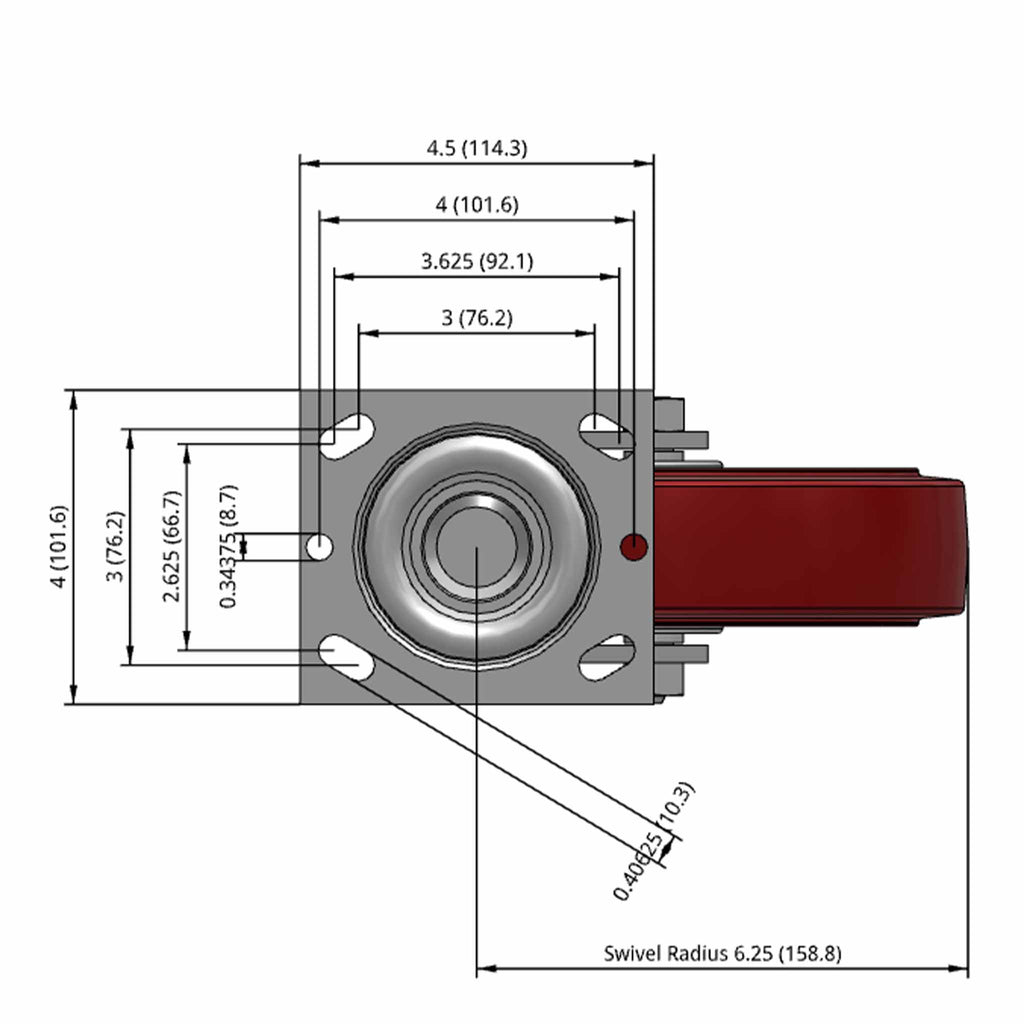

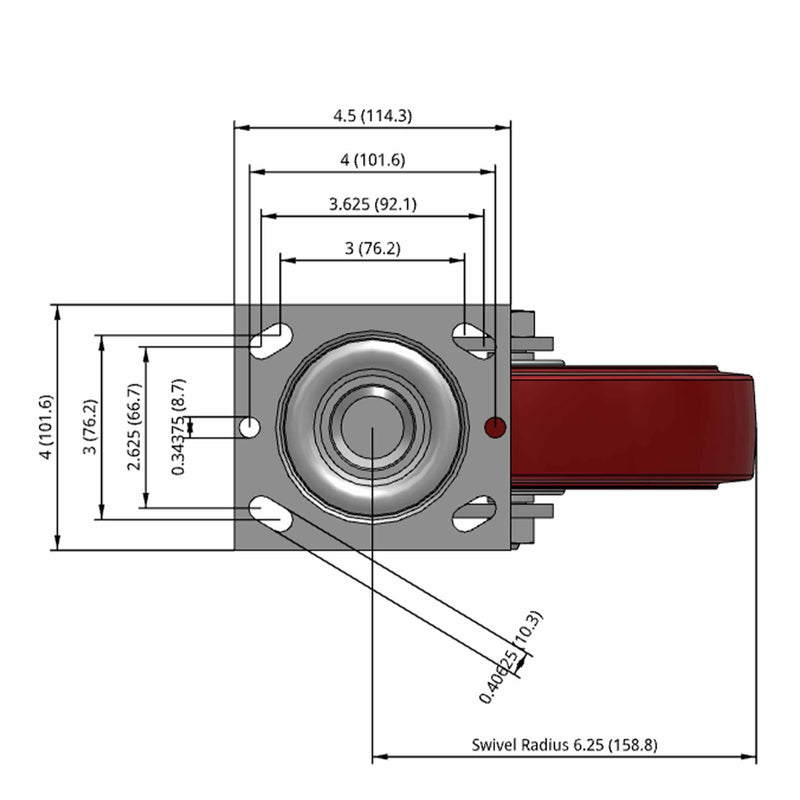

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

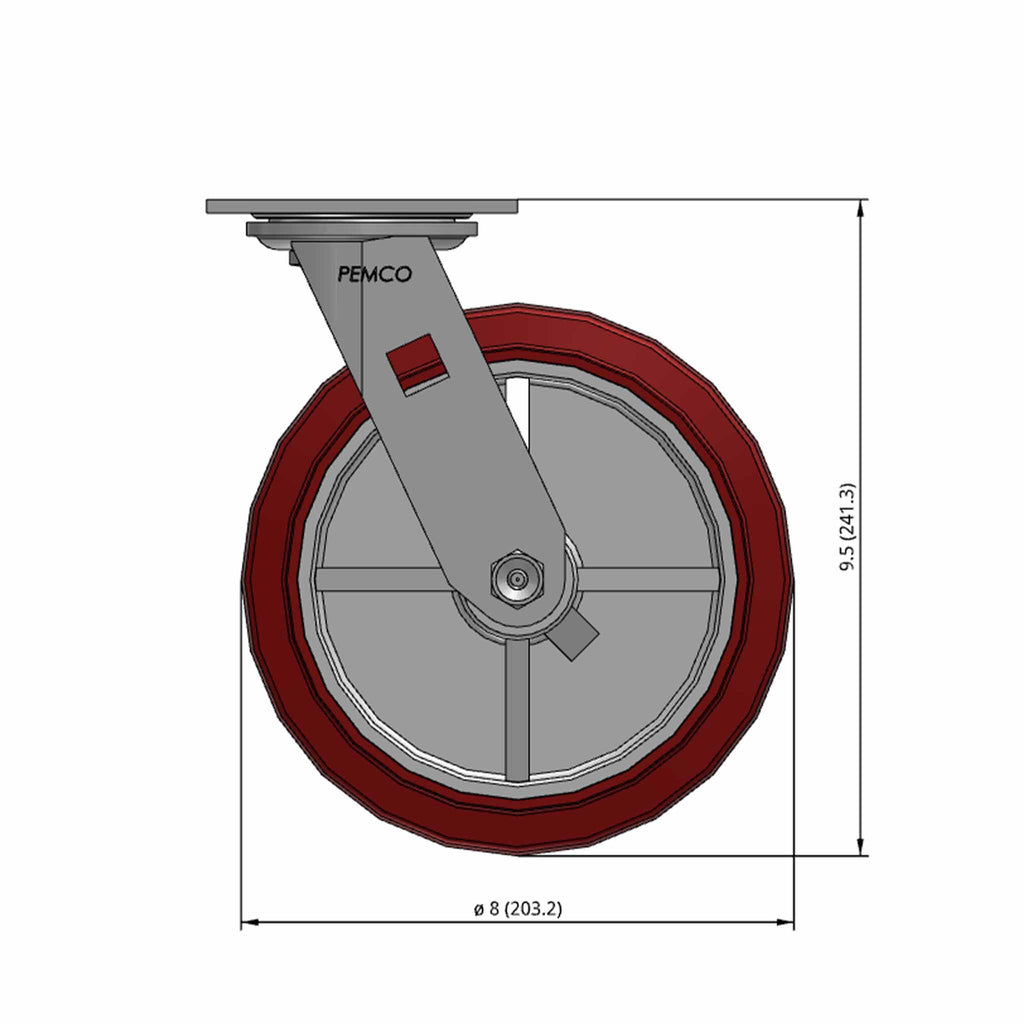

Mounting Height: 9.5 in
Swivel Radius: 6.25 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
