8 inch Polyurethane Heavy Duty Rigid Caster, 3 inch wide, USA Made

Roll over image to zoom in Click on image to zoom

8 inch Polyurethane Heavy Duty Rigid Caster, 3 inch wide, USA Made

Name: 8 inch Polyurethane Heavy Duty Rigid Caster, 3 inch wide, USA Made
Brand: Albion
SKU: 75PIR830R
Price: 155.33 USD
Availability: InStock

Kingpinless

Albion SKU: 75PIR830R
Fastening: 6-1/4'' x 4-1/2'' top plate | Load Capacity: 2500 lb
Mount Height: 10.13 in

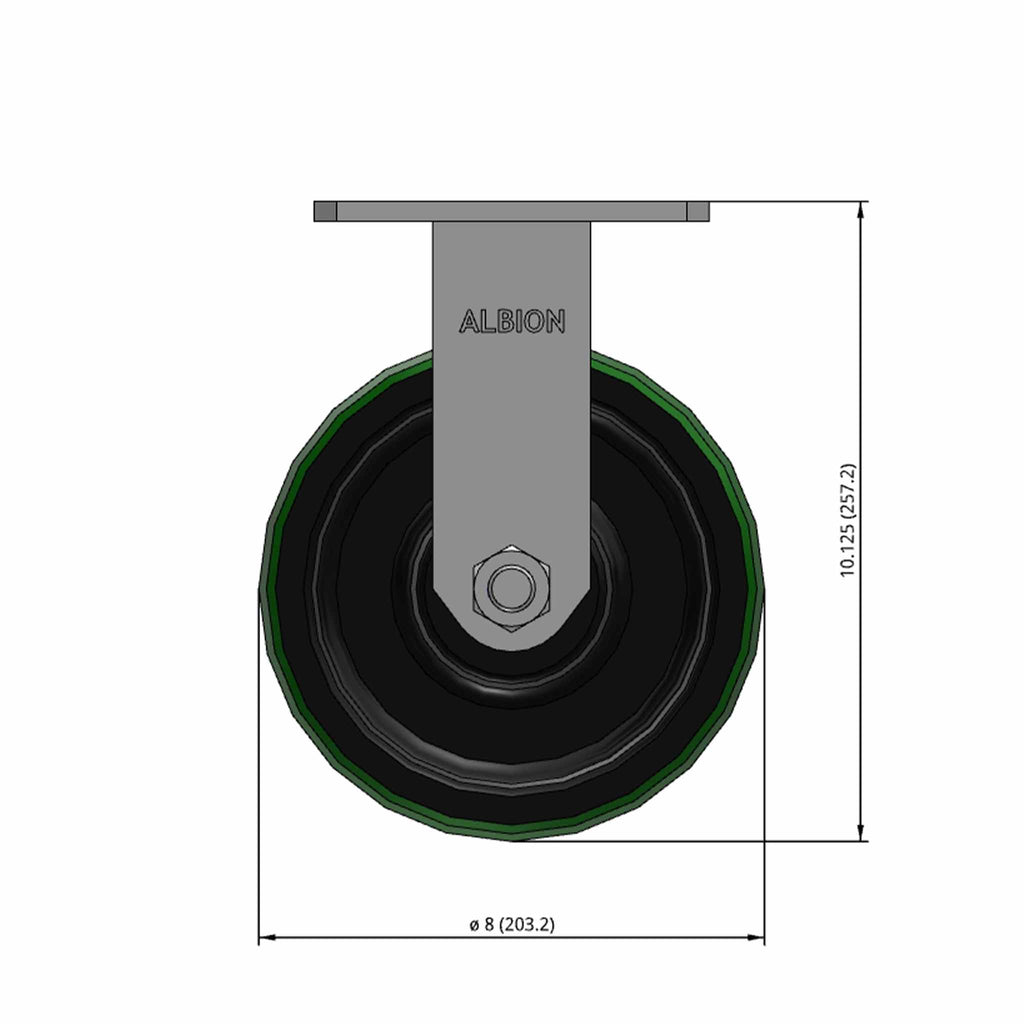

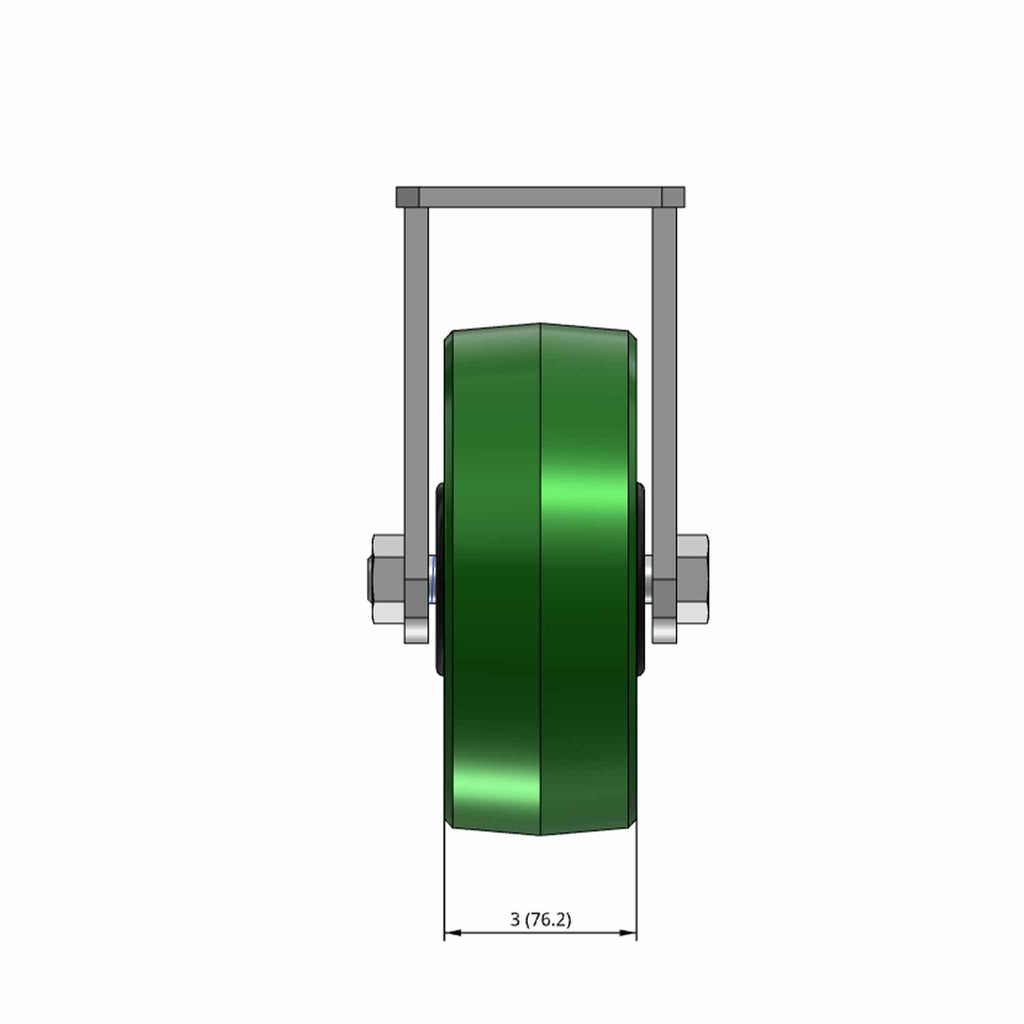

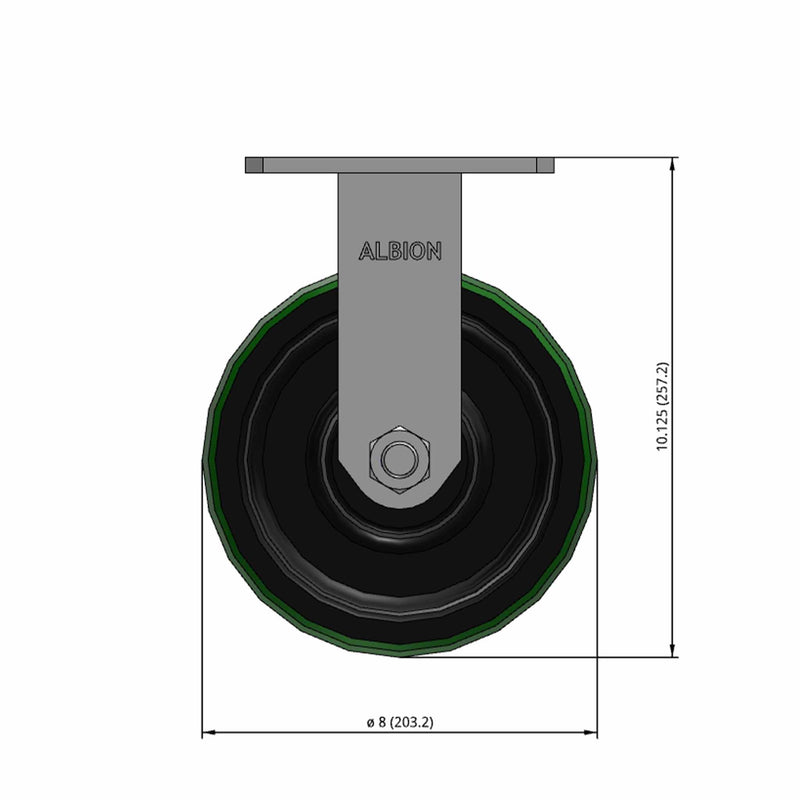

See "Caster Details" and below CAD model for full specs.

• In stock: 12 units ship by next day, larger quantities in 2-5 days (learn more)
**FREE Shipping on orders over $250**

Price:

$155.33 $182.74

Quantity:

Share this product

This made in USA heavy duty rigid 8" x 3" polyurethane on cast iron wheel caster offers high capacity, floor protection, and excellent durability–delivering better protection and quieter mobility versus steel wheels. The USA made rigid fork legs are constructed from high quality, heat-treated 3/8" thick AISI 1045 laser-cut steel and fully welded (inside and outside) to the 5/16" thick top plate, delivering superior strength in rugged applications. The heavy duty, premium polyurethane (95 Shore A) wheel offers a 1/2" thick polyurethane tread, chemically bonded to a close tolerance cast iron core, providing trusted high-capacity and non-marking operation. The caster also features a leading 3-year warranty and RoHS compliant zinc plating with clear coat for superior corrosion resistance.

Part Number: 75PIR830R
Series: 75 Series - Kingpinless (to 4100 lb/ea)
MPN: 310PY08501R
Caster Type: Rigid
Brake: None
Load Capacity: 2500 lb
Wheel Diameter: 8 in
Wheel Tread Width: 3 in
Wheel Description: PY - Polyurethane (Cast Iron Core)
Wheel Color: Green Tread on Black Cast Iron Core
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: 95 Shore A
Wheel Thread Guards: None
Raceway Type: Rigid Construction
Fastening: 6-1/4'' x 4-1/2'' top plate

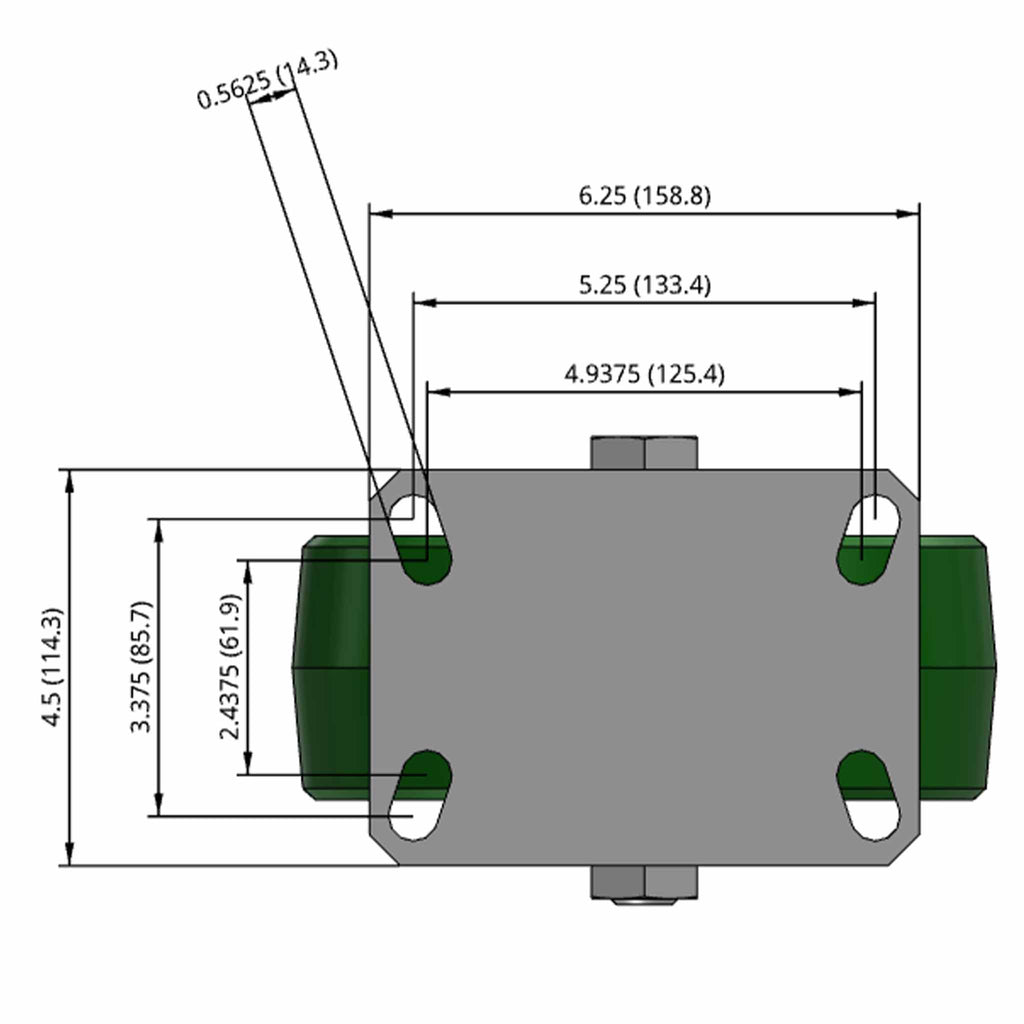

Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Bolt Size Recommended: 1/2"
Mounting Height: 10.13 in
Operating Temperature Range: -40°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

Note: datasheets are provided on our Caster Specialists division template, all part information matches 1:1.
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.

Kingpinless
