This 8" x 2" thermoplastic rubber (TPR) heavy duty ergonomic swivel caster with flat tread provide smooth and quiet operation, and are safe for all floor types. Our 48 Series casters are ergonomically designed for ease of movement and quiet mobility. The sealed precision swivel bearing is maintenance-free and significantly reduces push/pull force, keeping equipment operations safer while improving efficiency. Rig is zinc-plated for an attractive, corrosion-resistant finish.
Series: 48 Series - Ergonomic/Precision (to 1250 lb/ea)
Caster Type: Swivel
Load Capacity: 675 lb
Wheel Diameter: 8 in

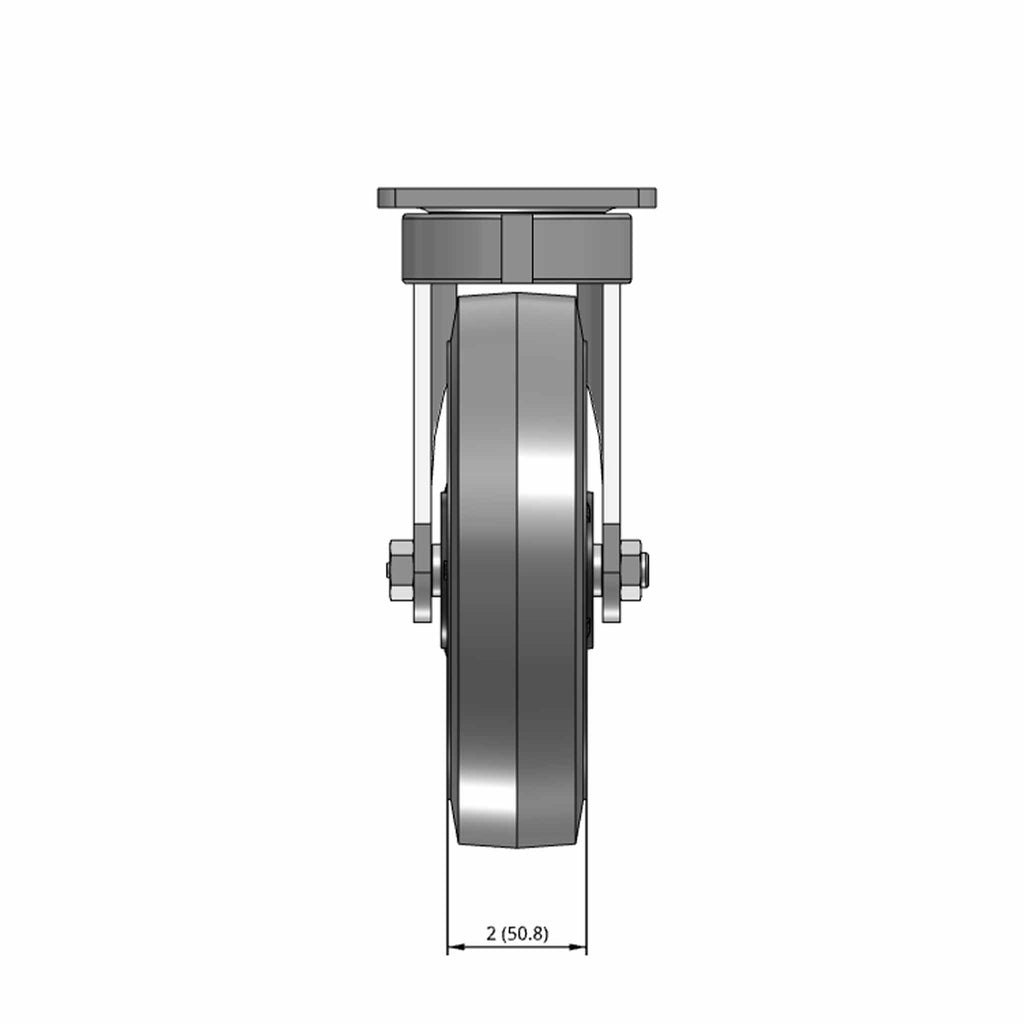

Wheel Tread Width: 2 in
Wheel Description: XS - X-tra Soft Rubber (Flat)
Wheel Color: Grey Tread on Grey Core
Wheel Bearing: Precision Ball
Wheel Profile: Crowned Tread
Wheel Hardness: 65-75 Shore A
Wheel Thread Guards: None
Raceway Type: Maintenance-Free Sealed Precision Ball Bearing Raceway

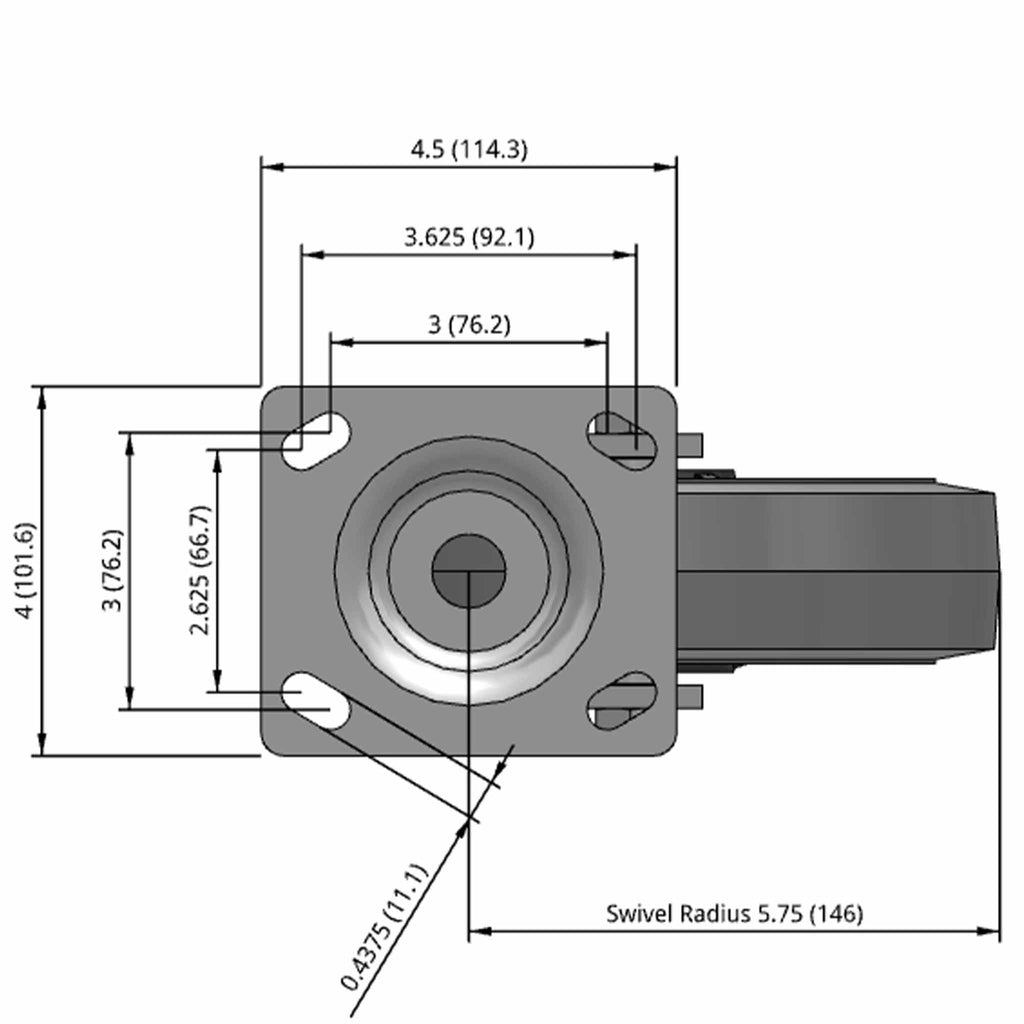

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

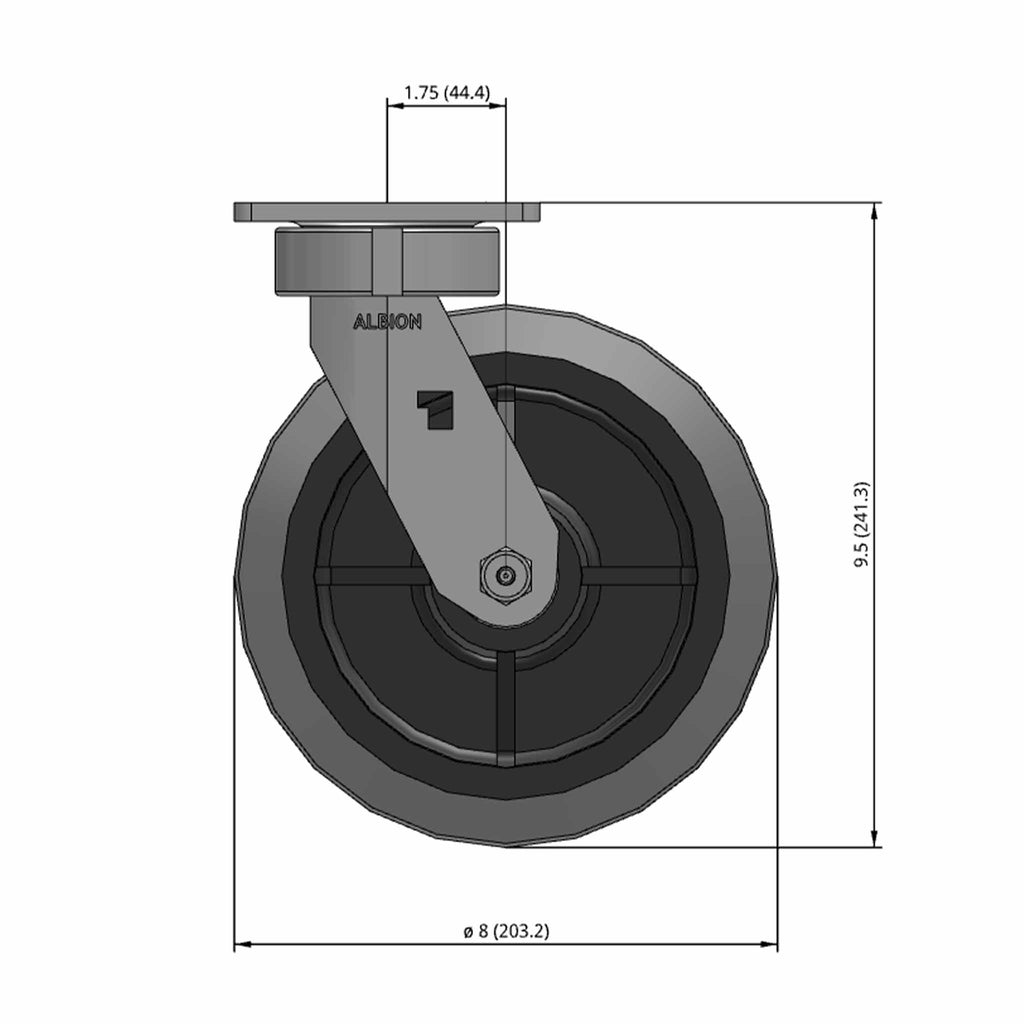

Mounting Height: 9.5 in
Swivel Radius: 5.75 in
Operating Temperature Range: -45°F to +180°F
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
CAD Model and Datasheet Downloads
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
