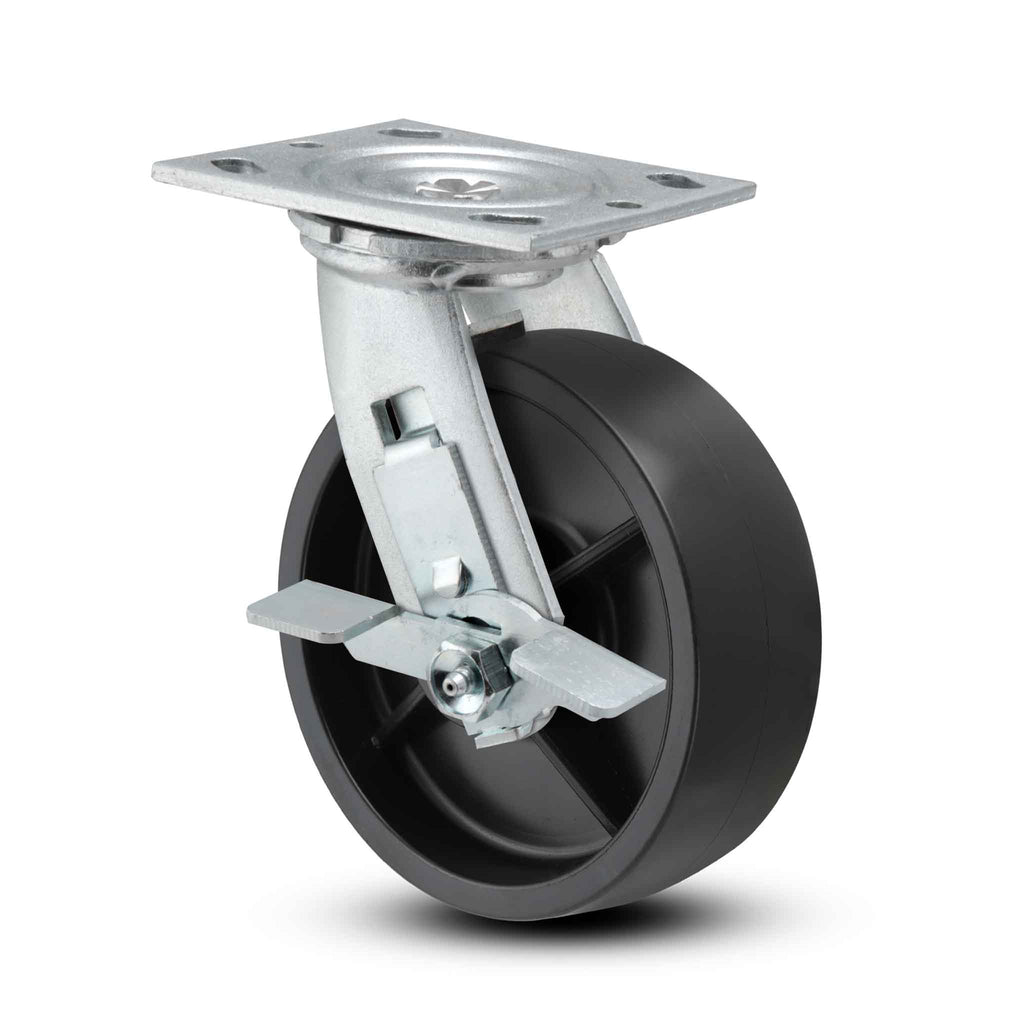

This swivel Pemco 8"x2" polypropylene wheel plate caster with positive locking side brake (protected within leg and featuring thermoplastic brake grip) is ideal for economical applications or environments exposed to water where stainless steel is out of budget (please contact us or make a note in order if you want Delrin bearing instead of roller bearing for applications regularly exposed to water). Featuring a ribbed design for added strength and a Delrin bearing, these polypropylene wheels are non-marking, lightweight, and resistant to water and most chemicals and oils. This popular line is competitively priced and features: 1/4" thick steel construction, 4"x4.5" top plate, dual ball bearing raceways, welded legs for strength, RoHS compliant zinc plating for corrosion resistance, and a one-year warranty–this SKU is also NSF listed.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Swivel
Brake: Tread Lock
Load Capacity: 900 lb

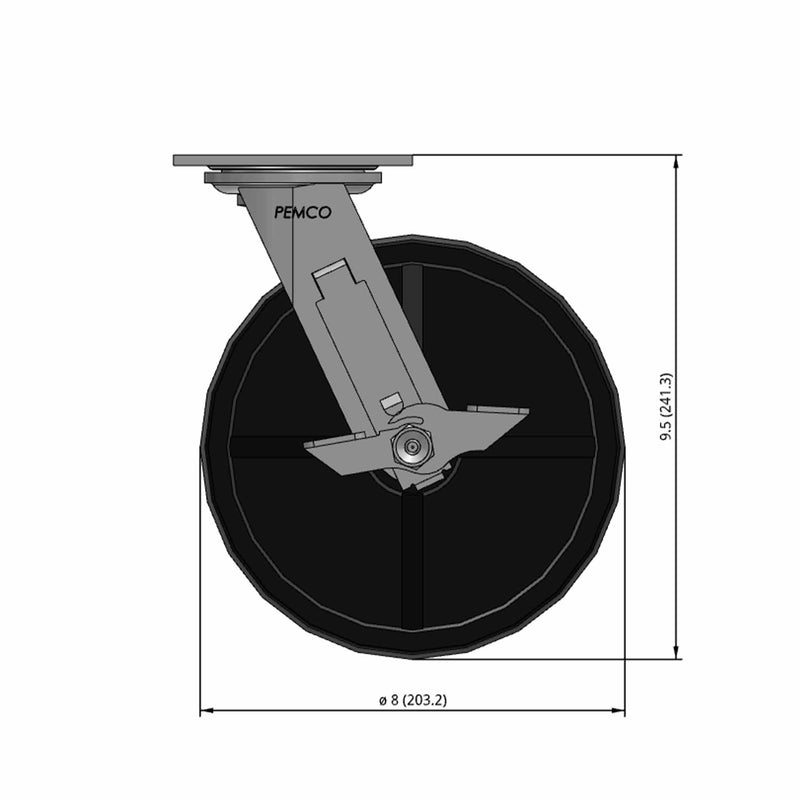

Wheel Diameter: 8 in

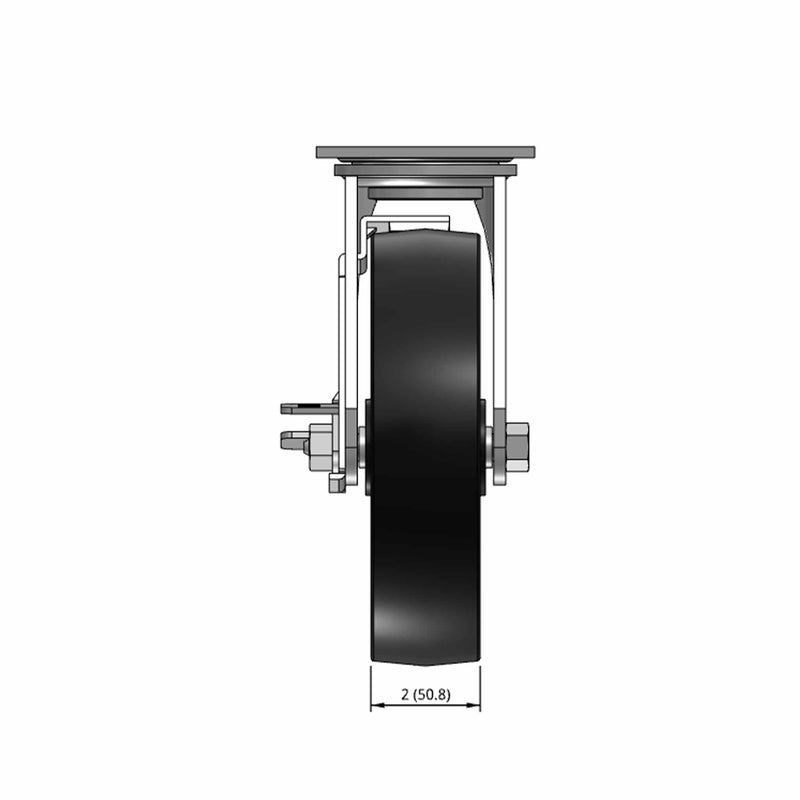

Wheel Tread Width: 2 in
Wheel Description: Polypropylene HD
Wheel Color: Black
Wheel Bearing: Roller
Wheel Profile: Flat Tread
Wheel Hardness: 70(+/-5) Shore D
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength
Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"
Mounting Height: 9.5 in
Swivel Radius: 6.25 in
Operating Temperature Range: -20F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
CAD Model and Datasheet Downloads
Use Generate CAD (must select file type to enable download) or Generate PDF datasheet buttons below to download our secure and native files.
