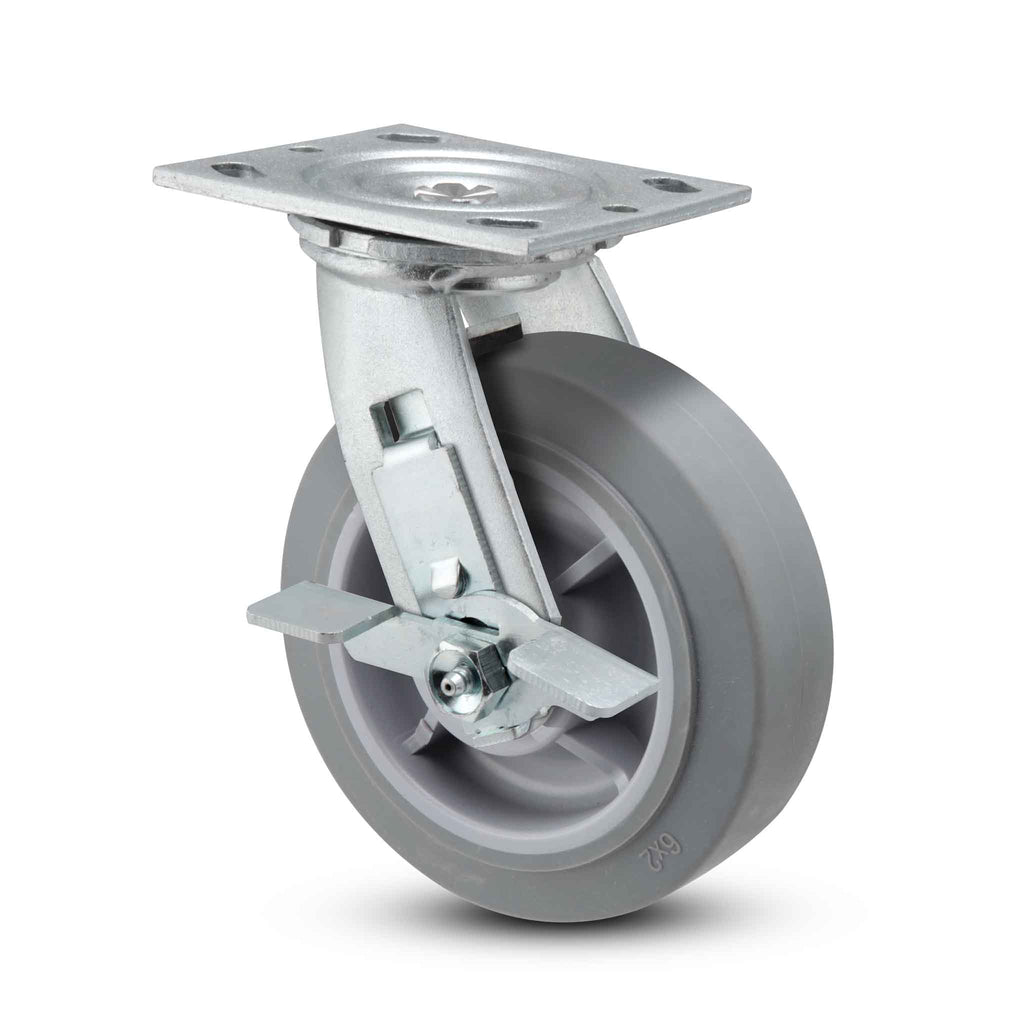

This swivel Pemco 8"x2" Thermo-Rubber (TPR) wheel plate caster with positive locking side brake (protected within leg and featuring thermoplastic brake grip) is ideal for applications where floor protection, quiet mobility, and/or vibration mitigation is desired (if vibration and equipment protection are top of your list, make sure to check out Xtra-Soft casters). Our USA-made Thermo-Rubber wheels are non-marking, smooth rolling with standard roller bearings, and resistant to most chemicals and oils–an overall versatile and economical wheel (for greater durability, step up to Thermo-Urethane). This popular line is competitively priced and features: 1/4" thick steel construction, 4"x4.5" top plate, dual ball bearing raceways, welded legs for strength, grease zerks in axle and raceway, RoHS compliant zinc plating for corrosion resistance, and a one-year warranty–this SKU is also NSF listed.
Series: 45 Series - 2" Wide (to 1250 lb/ea)
Caster Type: Swivel
Brake: Tread Lock
Load Capacity: 600 lb
Wheel Diameter: 8 in

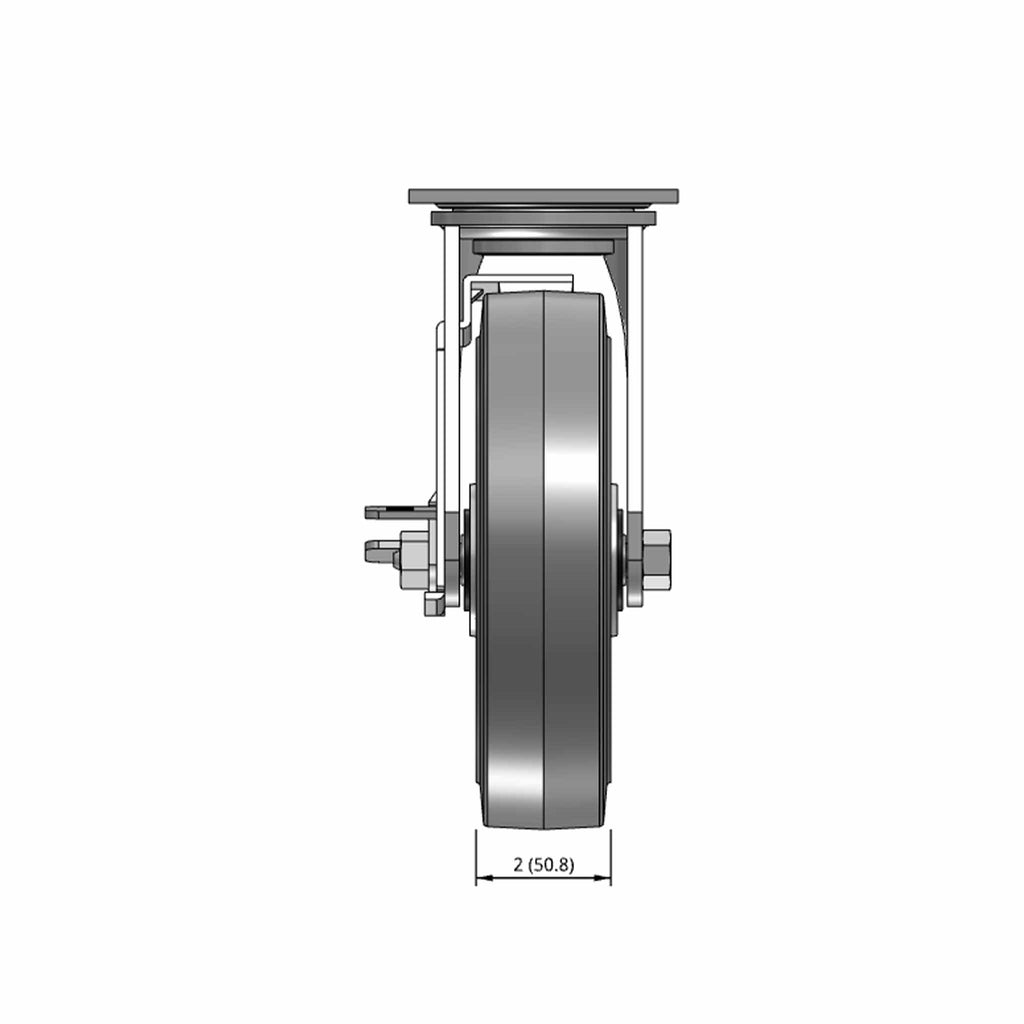

Wheel Tread Width: 2 in
Wheel Description: Thermo-Rubber (Flat)
Wheel Color: Grey
Wheel Bearing: Roller
Wheel Profile: Flat Tread
Wheel Hardness: 90(+/-5) Shore A
Wheel Thread Guards: None
Raceway Type: Dual Ball Swivel Raceways For Smooth Swivel and Strength

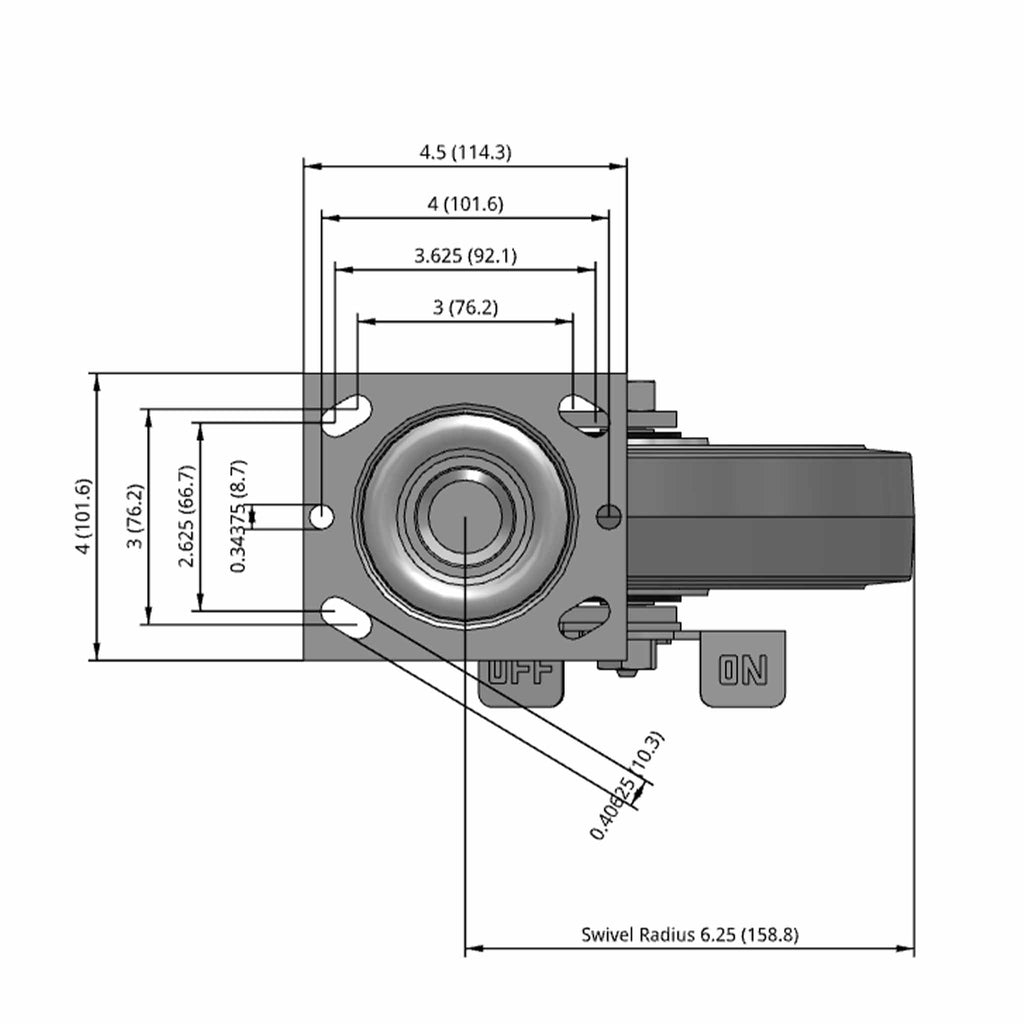

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"
Mounting Height: 9.5 in
Swivel Radius: 6.25 in
Operating Temperature Range: -40F° to +180F°
Warranty: 1 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
Use Download CAD (must select file type to enable download) or Download PDF datasheet buttons below to download our secure and native files.
